Toyota Aqua

2011-12 → 2021-06 · chassis NHP10 · catalogue 125110 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

52 part groups · 10 illustrations

Illustrations

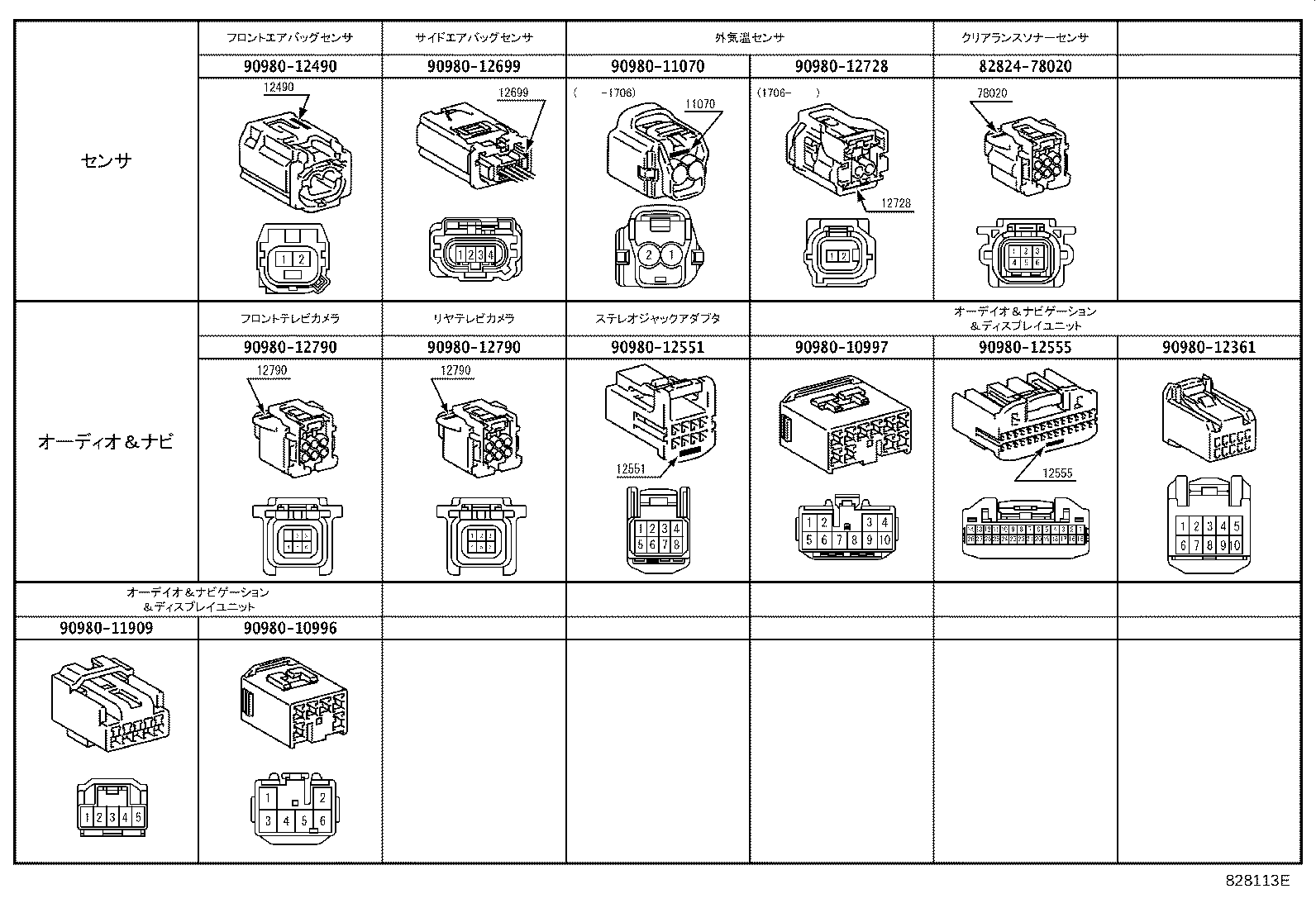

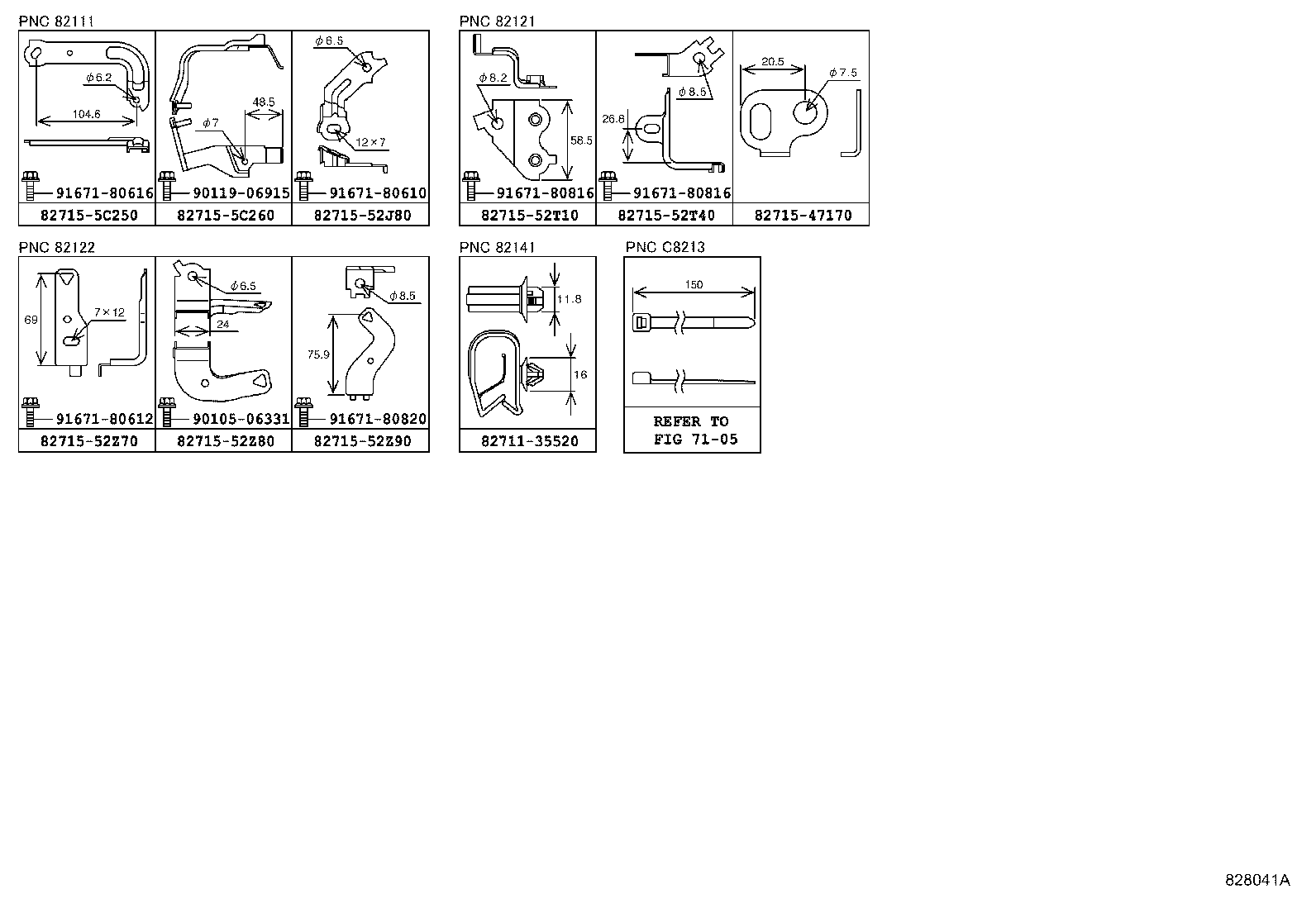

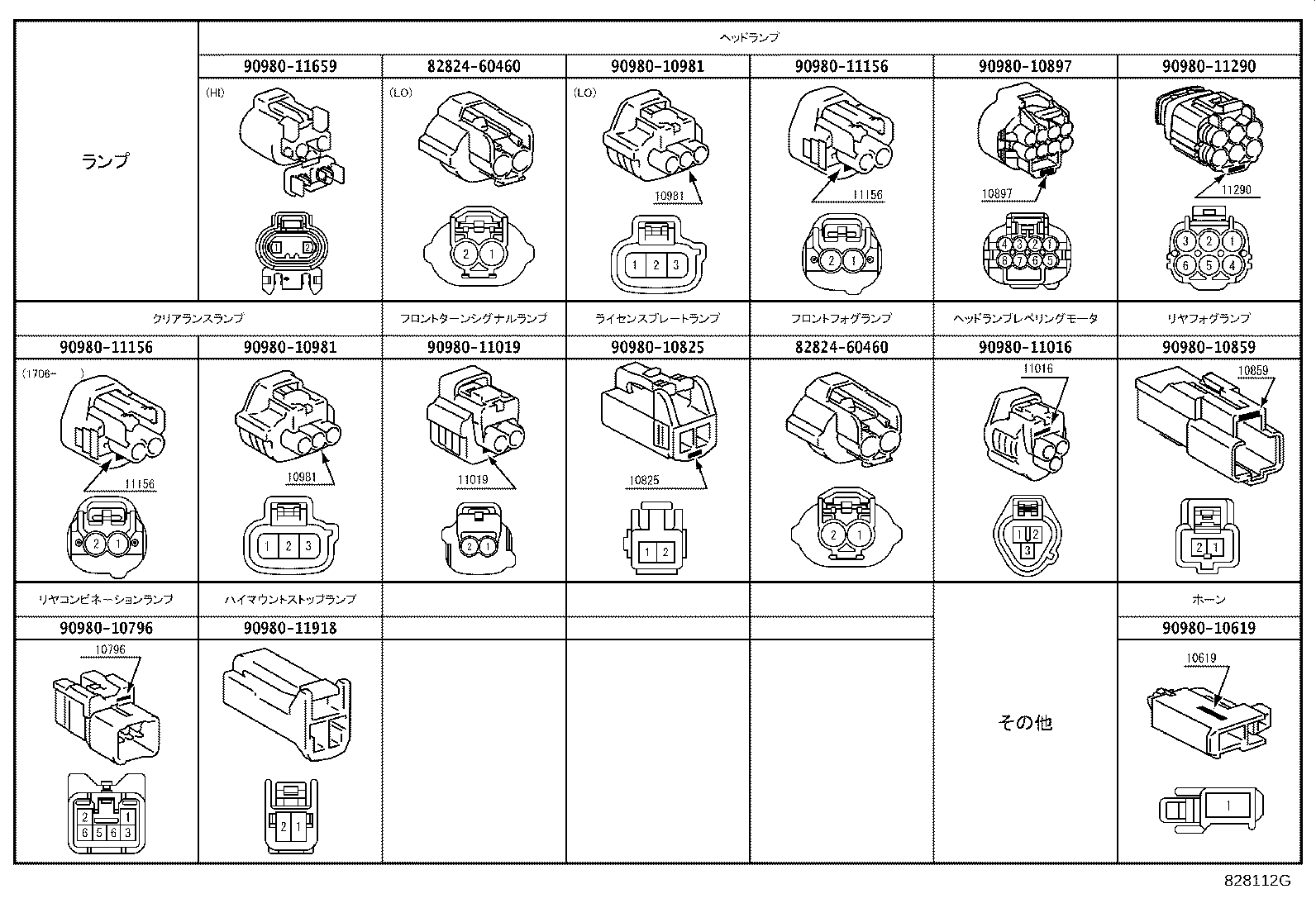

Figure 828037P 828037P 2011-12 → — Figure 828038B 828038B 2011-12 → — Figure 828039B 828039B 2011-12 → — Figure 828078D 828078D 2011-12 → — Figure 828040G 828040G 2011-12 → — Figure 828048B 828048B 2011-12 → — Figure 828156 828156 2011-12 → — Figure 828041A 828041A 2011-12 → — Figure 828112G 828112G 2011-12 → — Figure 828113E 828113E 2011-12 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82112B Wire, Engine Room, NO.2
82119C Wire, Engine Room, NO.5

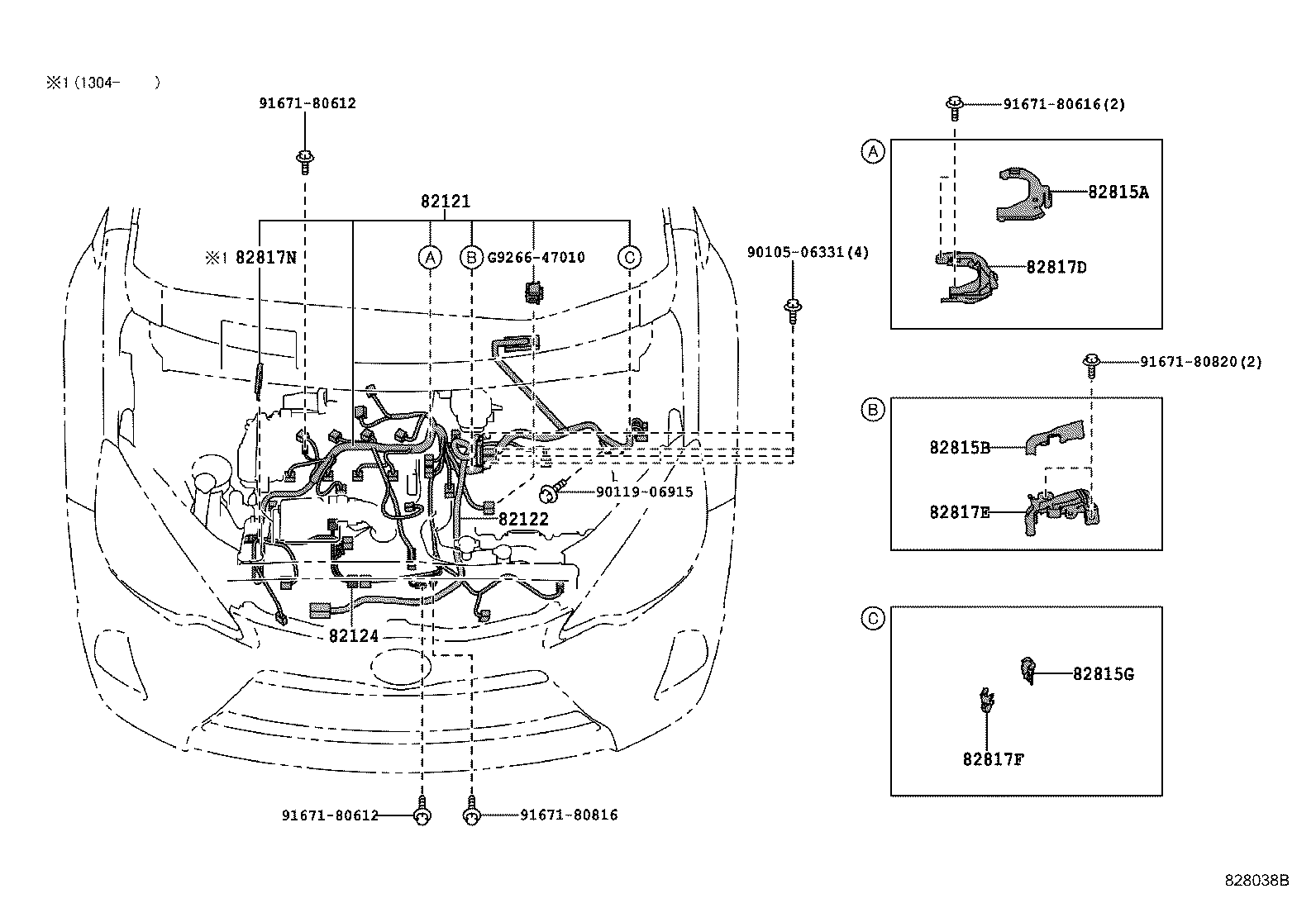

82121 Wire, Engine
82122 Wire, Engine, NO.2
82124 Wire, Engine, NO.4

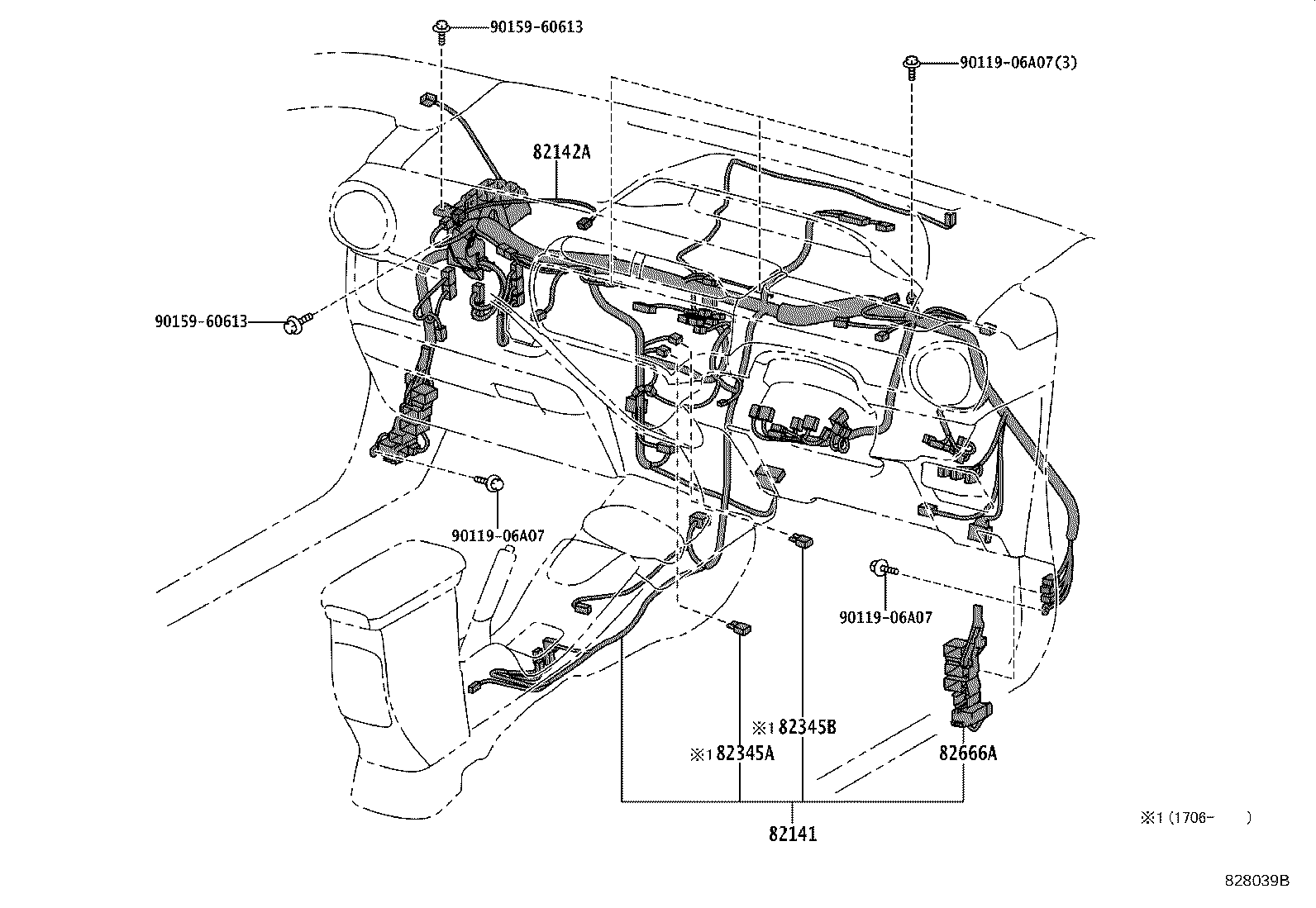

82141 Wire, Instrument Panel
82142A Wire, Instrument Panel, NO.2

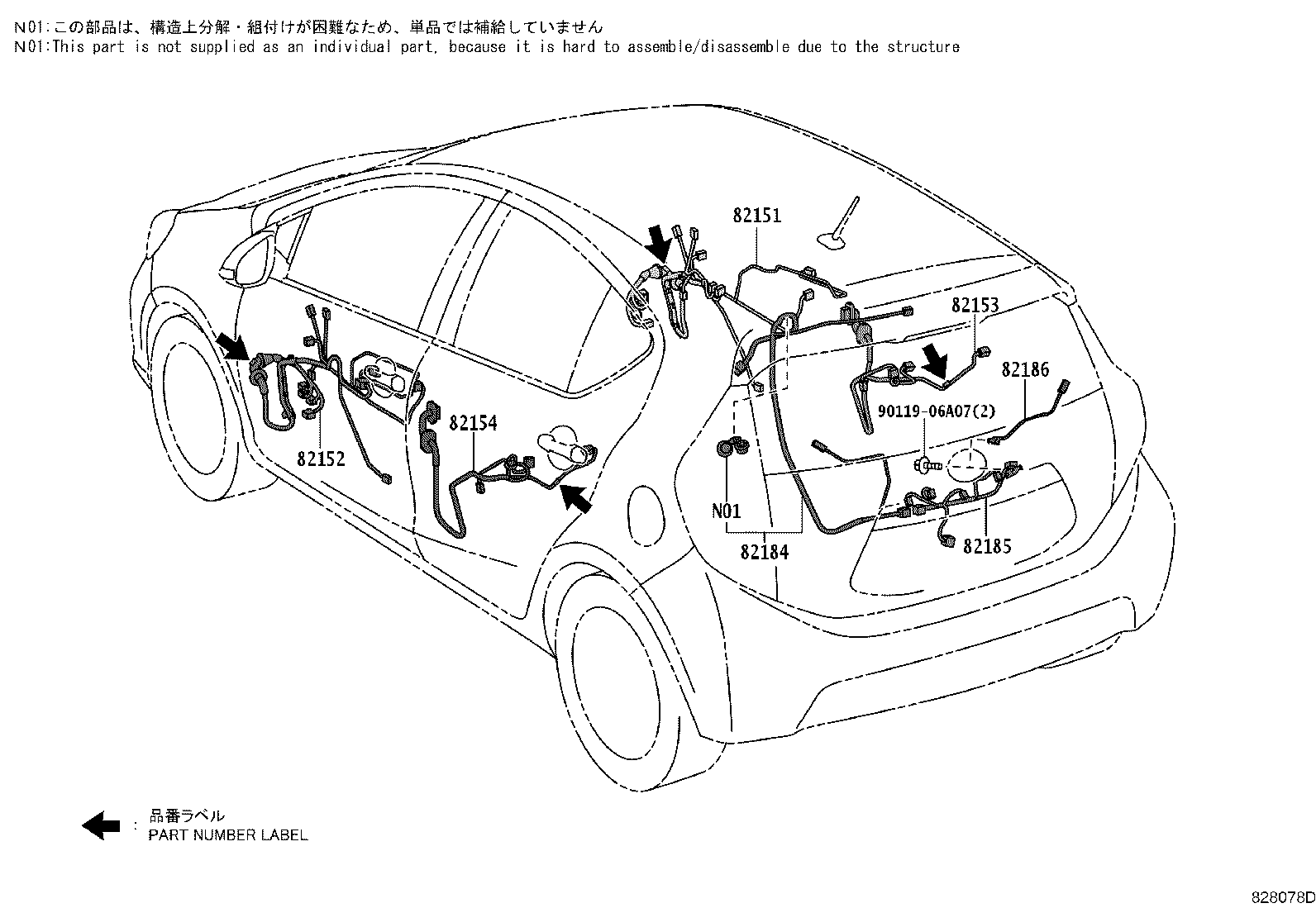

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

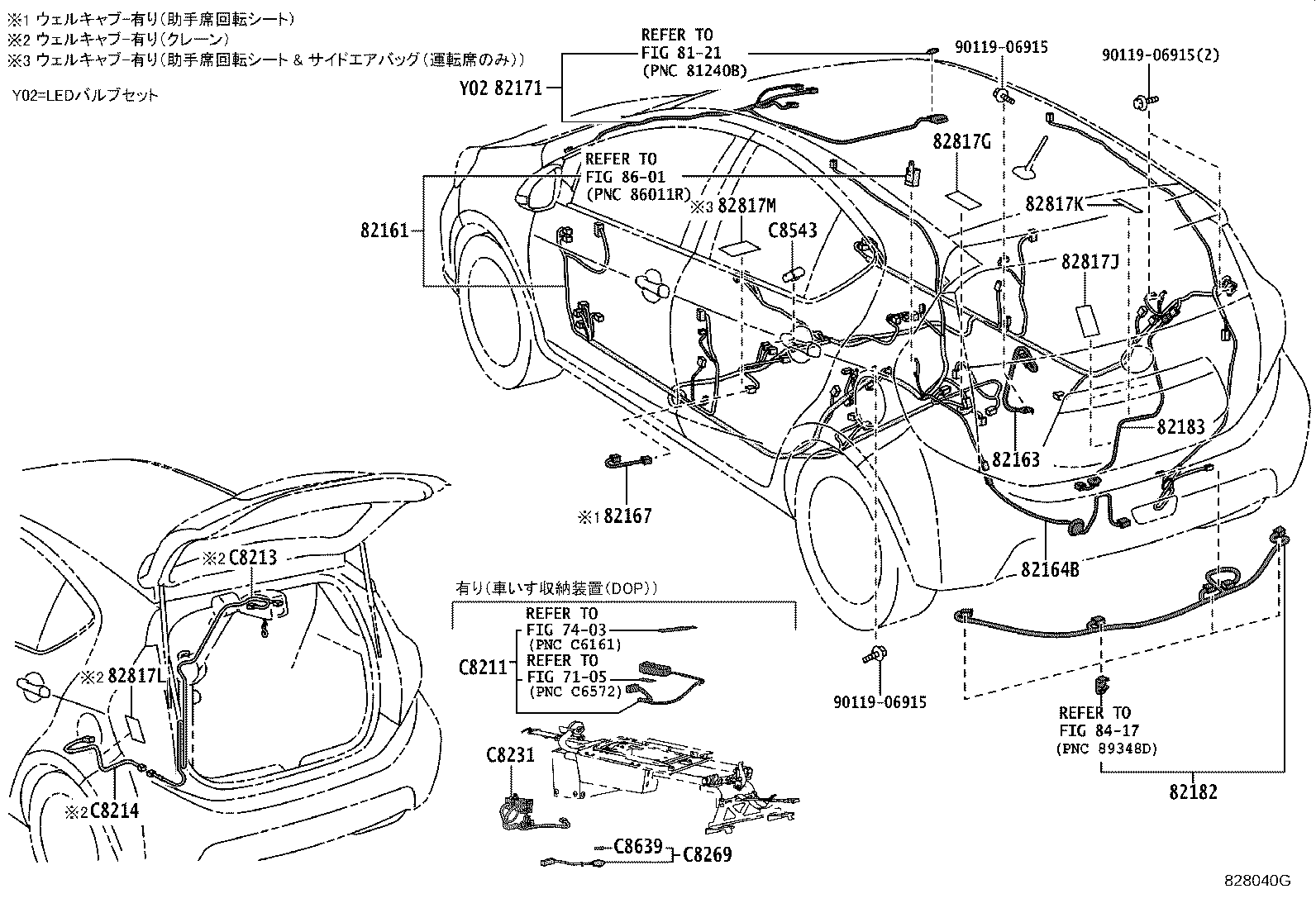

82161 Wire, Floor
82163 Wire, Floor, NO.3

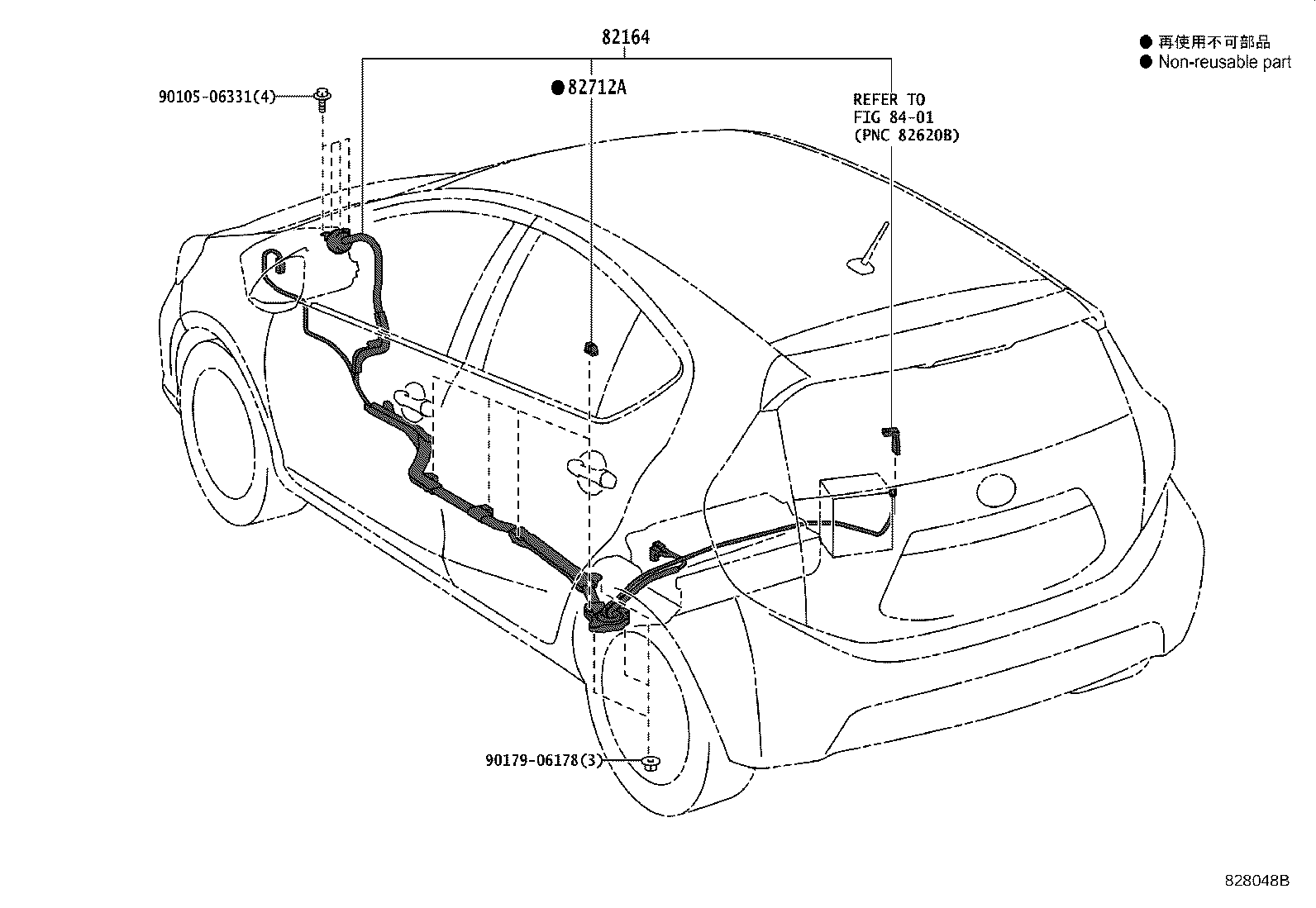

82164 Wire, Frame
82164B Wire, Frame, NO.2
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82345 Diode
82345A Diode
82345B Diode
82666A Holder, Connector NO.2
82712A Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
C8211 Wire, Switch TO Power Lift Motor
C8213 Wire, Power Lift Motor TO Body
C8214 Wire, Power Lift Motor
C8217 Wire, Welcab Seat Main
C8231 Wire, Tecs Frame
C8269 Cable, Power Supply
C8543 Resistor, Emergency
C8639 Cover, Fuse
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
