Toyota Aqua

2011-12 → 2021-06 · chassis NHP10 · catalogue 125110 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

93 part groups · 10 illustrations

Illustrations

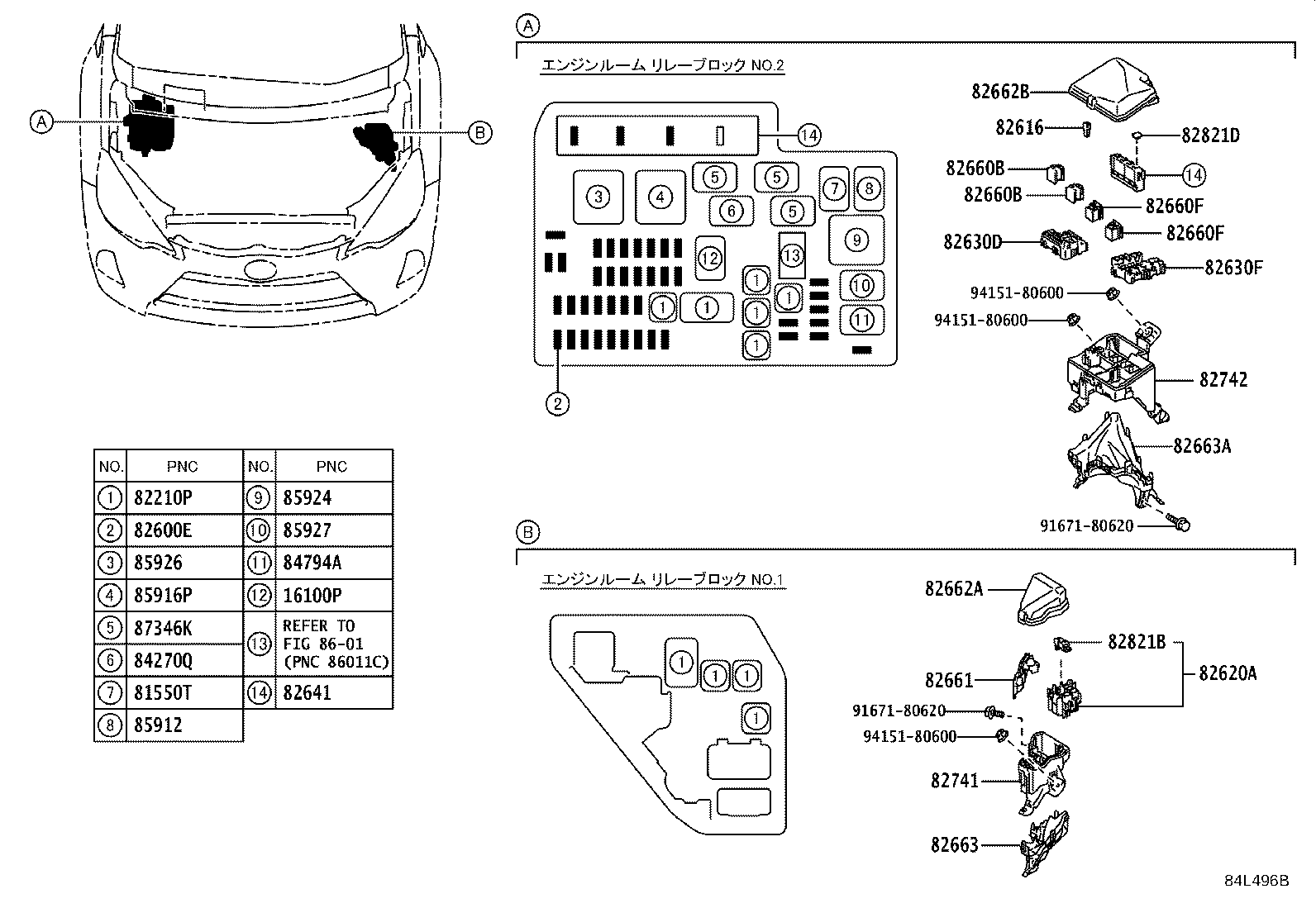

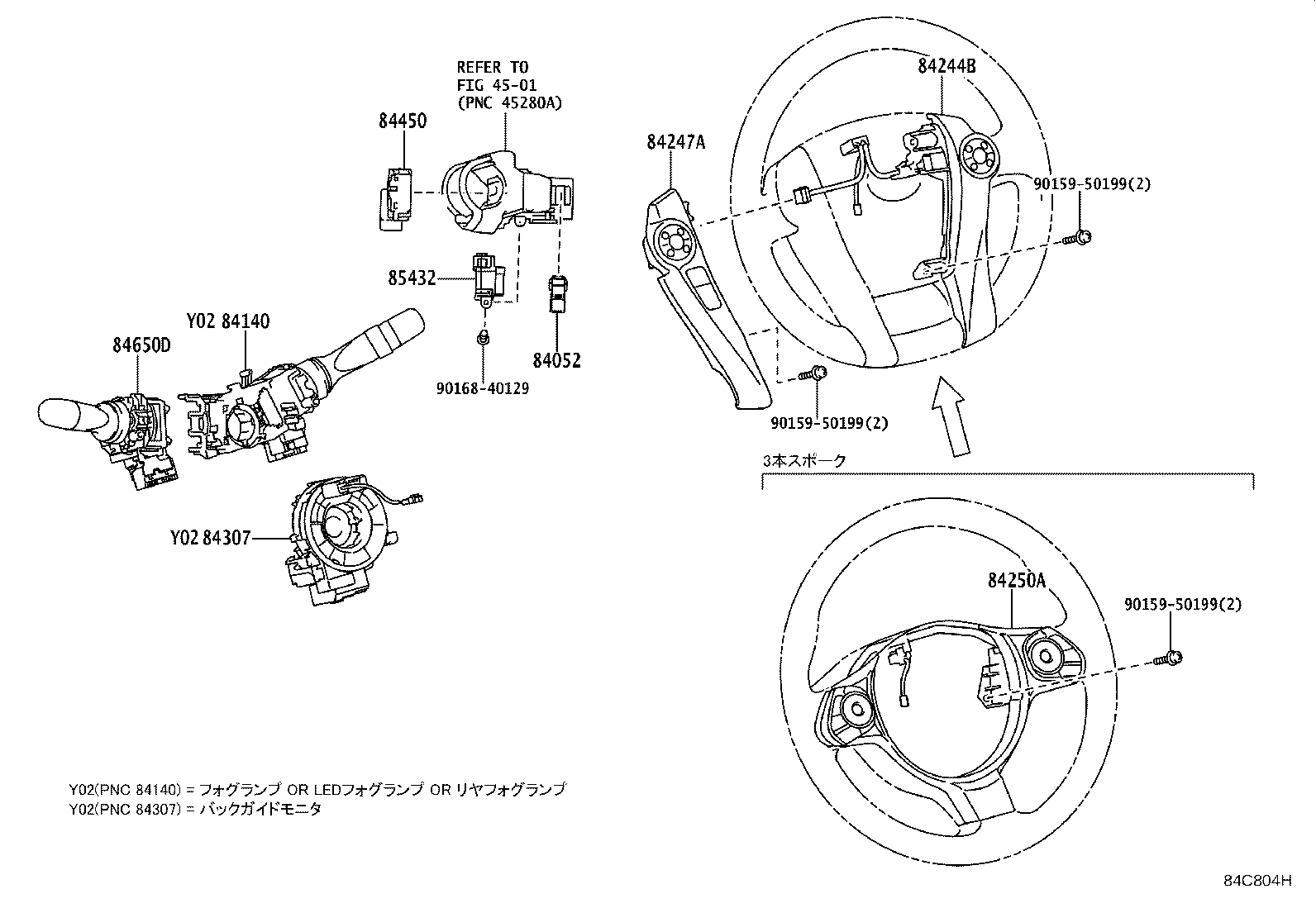

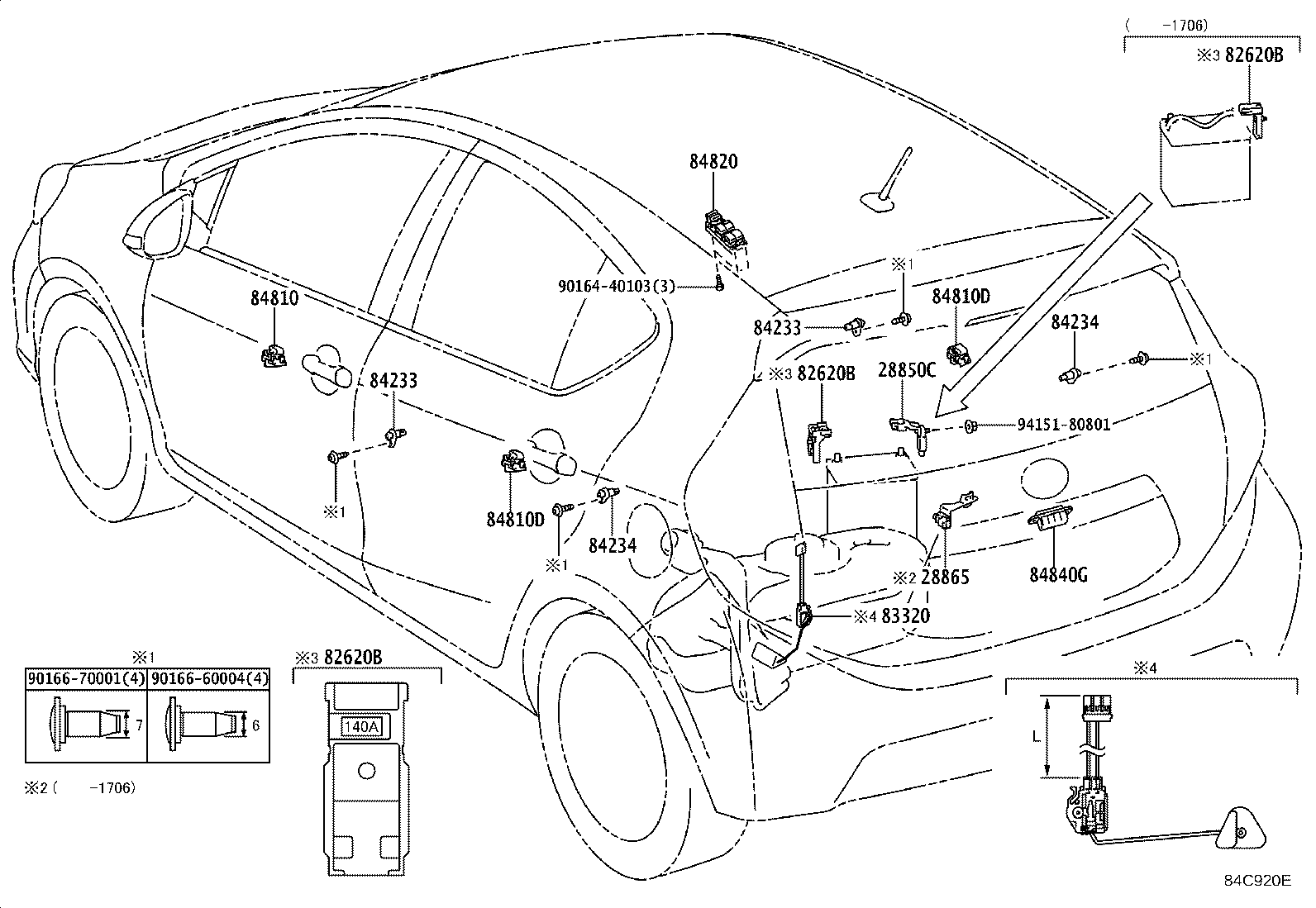

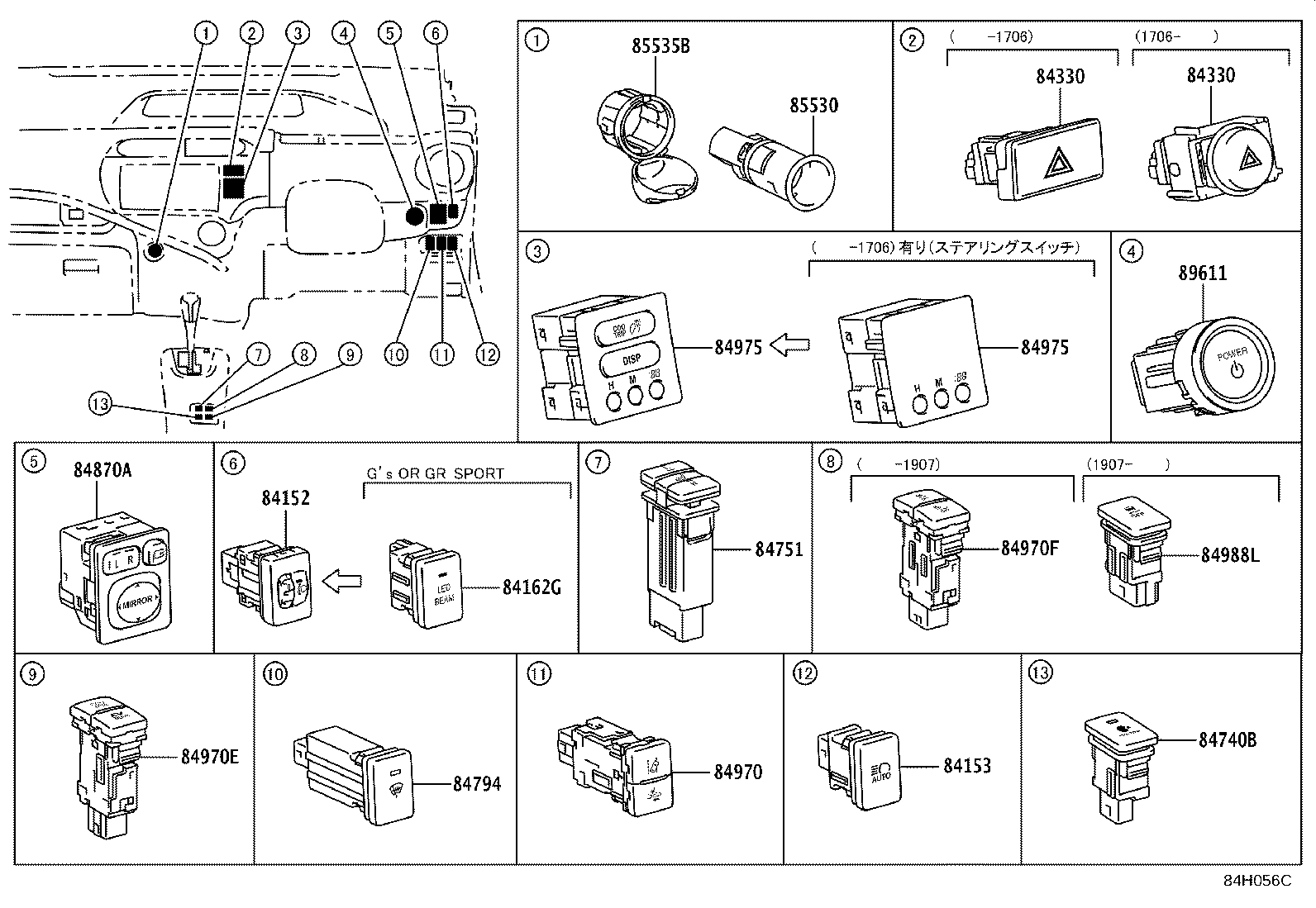

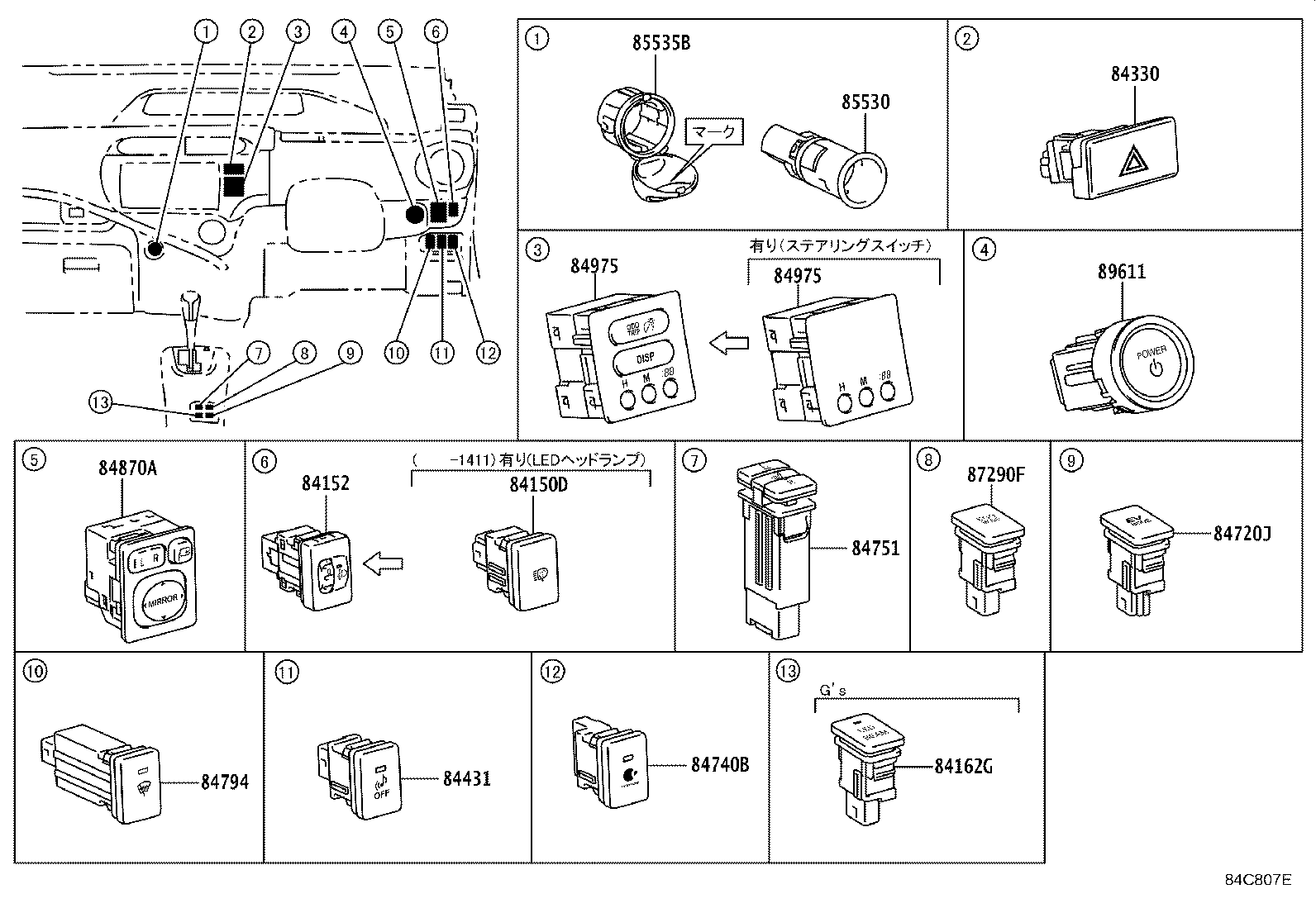

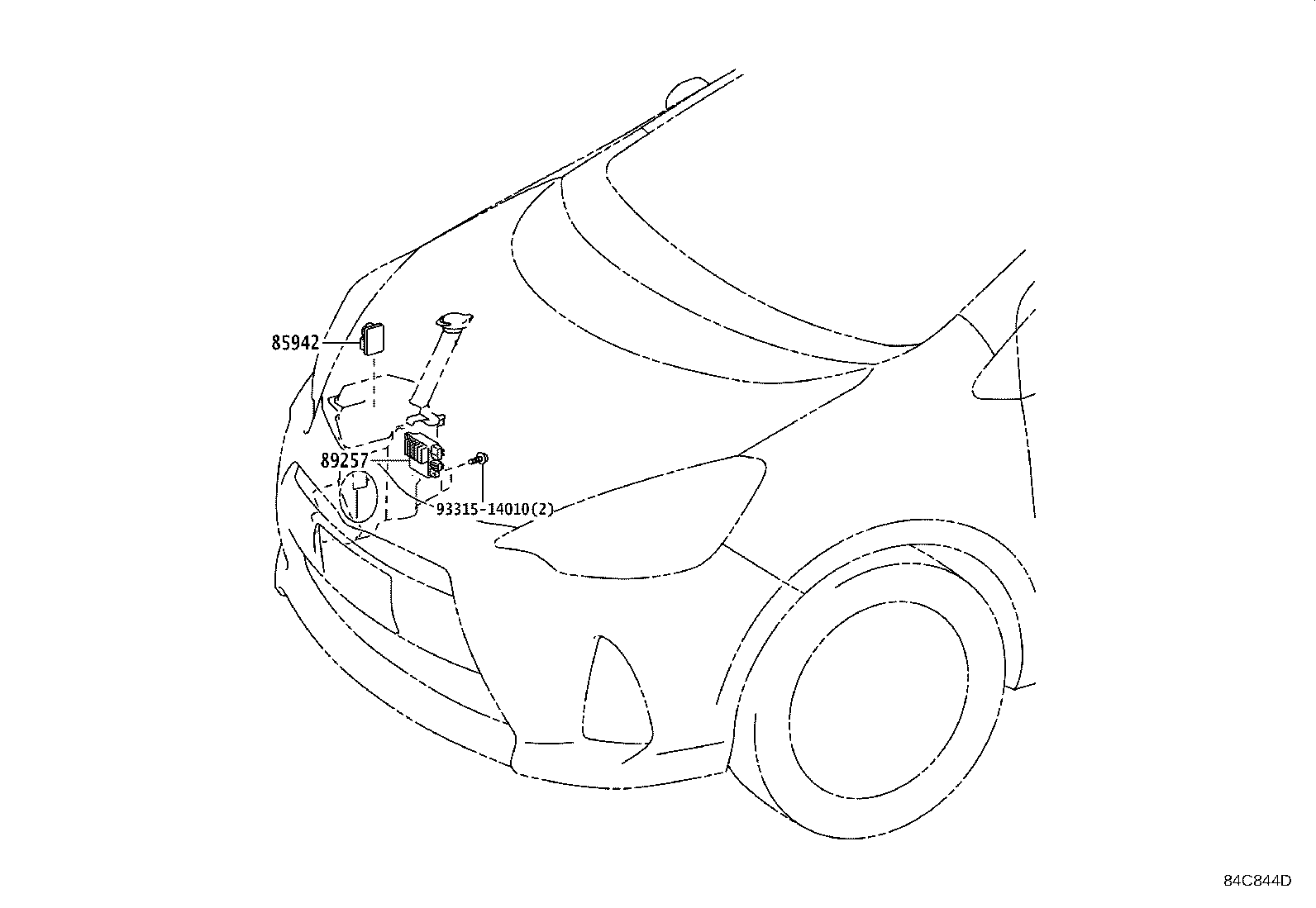

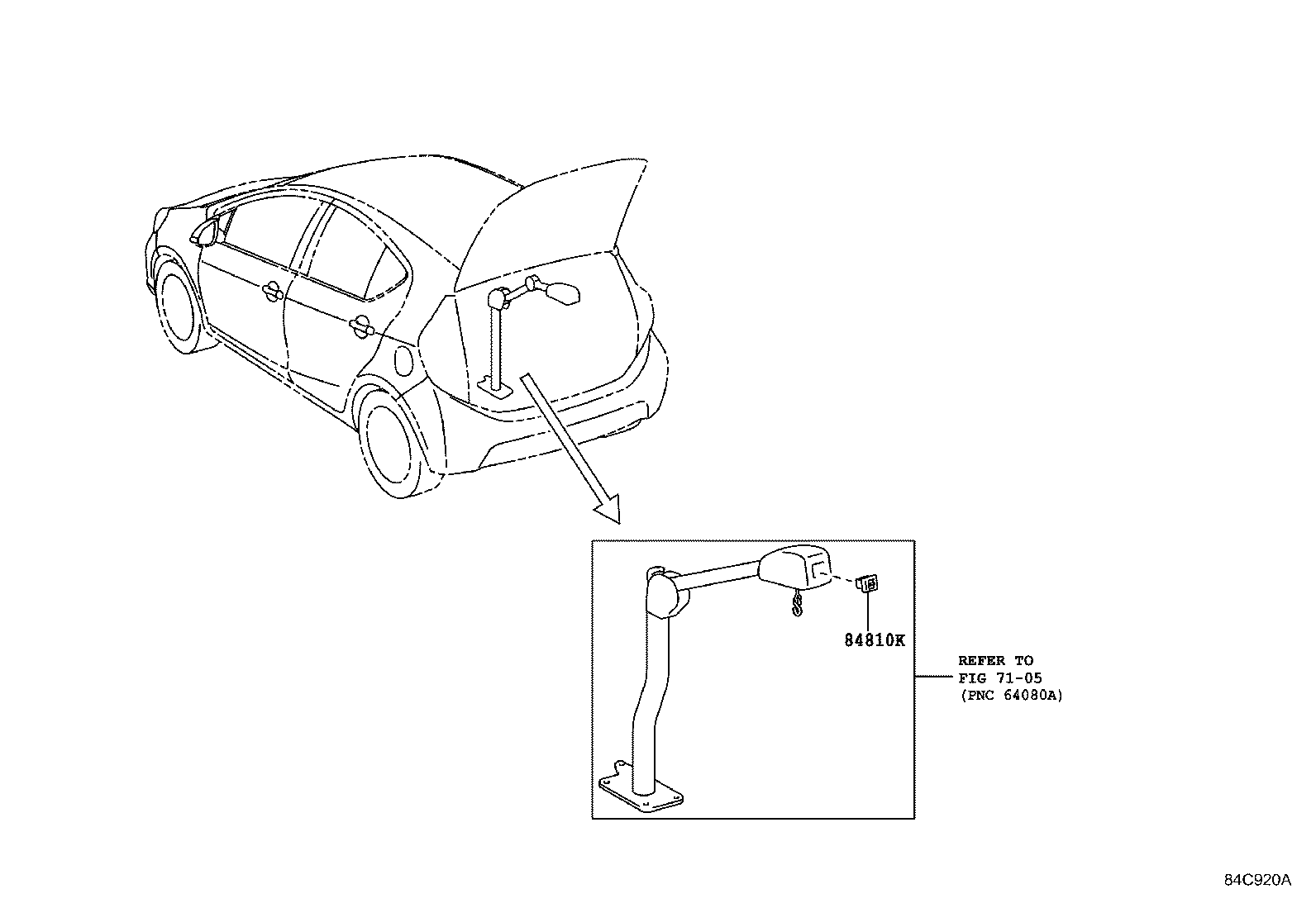

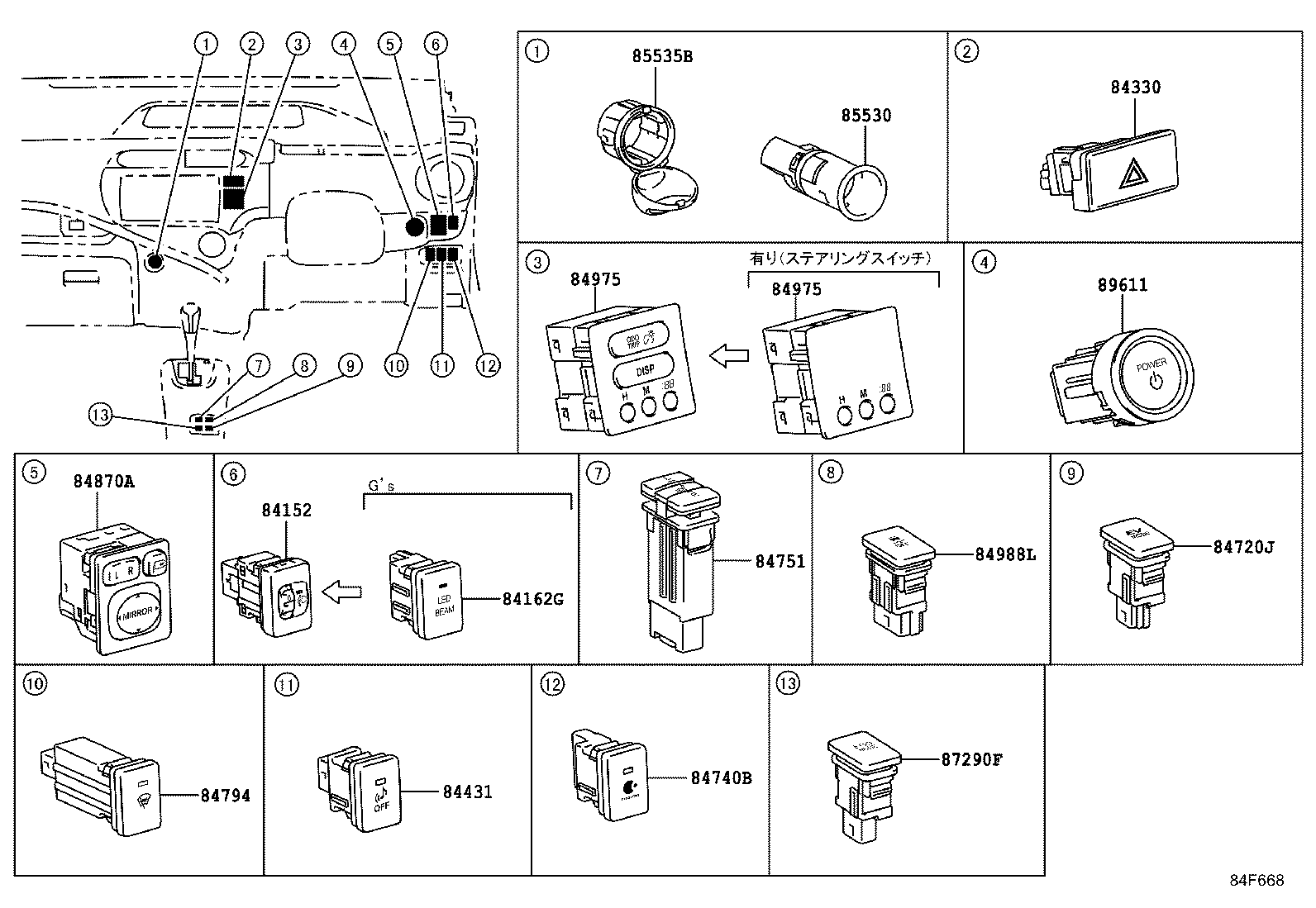

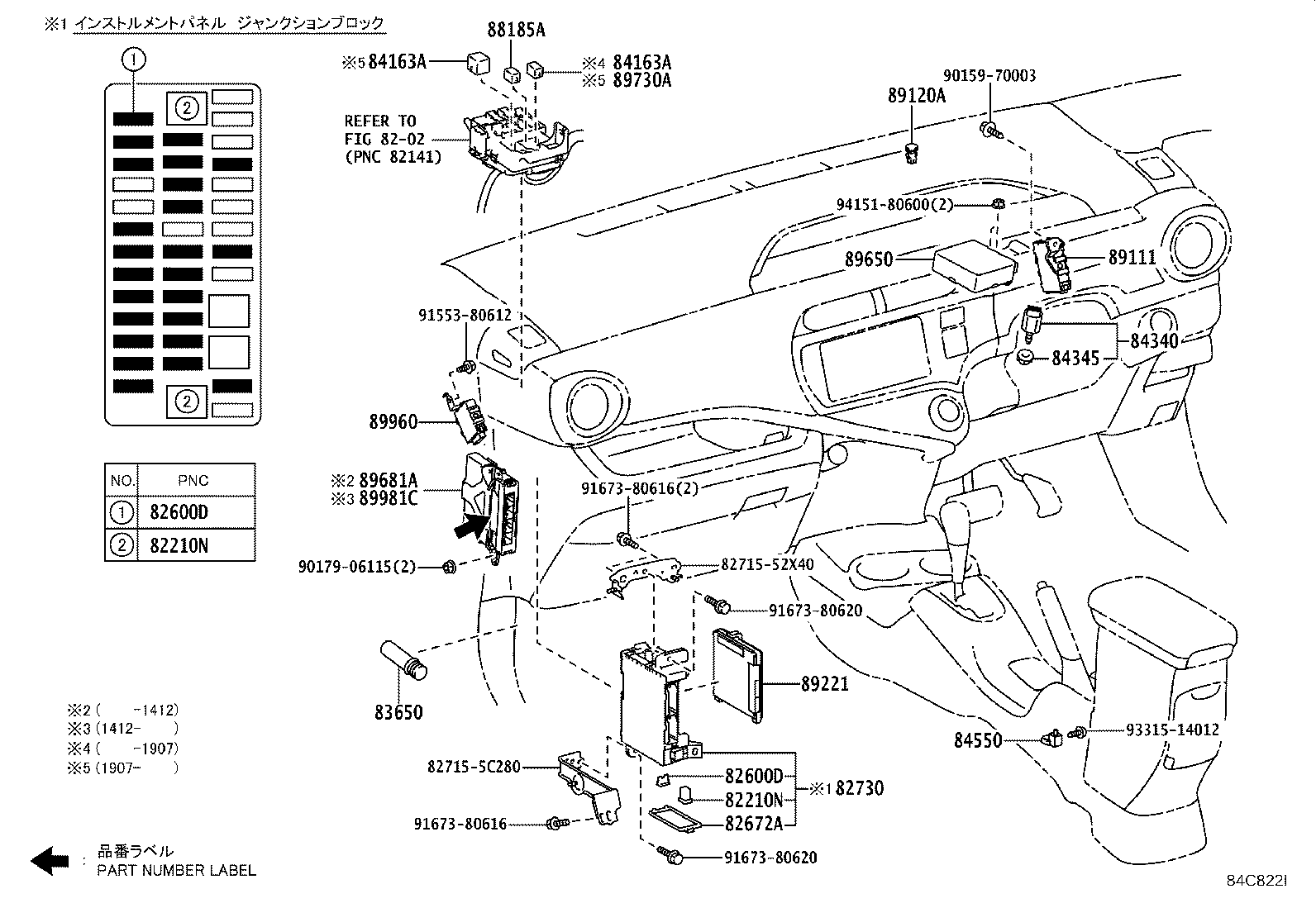

Figure 84C843 84C843 2011-12 → — Figure 84C844D 84C844D 2011-12 → — Figure 84L496B 84L496B 2011-12 → — Figure 84C822I 84C822I 2011-12 → — Figure 84C807E 84C807E 2011-12 → 2014-12 Figure 84F668 84F668 2014-12 → 2015-11 Figure 84H056C 84H056C 2015-11 → — Figure 84C804H 84C804H 2011-12 → — Figure 84C920E 84C920E 2011-12 → — Figure 84I015 84I015 2011-12 → —

Part groups

PNCDescription
16100P Relay, Water Pump
28850C Sensor Assy, Battery State
28865 Sensor, Battery Thermometer
81550T Relay, Back UP Lamp
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82630D Holder, Fuse
82630F Holder, Fuse
82641 Relay, Integration NO.1
82660B Block Assy, Relay
82660F Block Assy, Relay
82661 Cover, Relay Block, NO.1
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82672A Cover, Junction Block
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82821B Cover, Connector
82821D Cover, Connector
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84150D Switch Assy, Headlamp Cleaner
84152 Switch, Headlamp Leveling
84153 Switch, Auto High Beam
84162G Switch, Led Illumination Beam
84163A Relay, Light Emitting Diode Illumination
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84244B Switch, Steering Pad, RH
84247A Switch, Steering Pad, LH
84250A Switch Assy, Steering Pad
84270Q Relay, Lamp Cut
84307 Cable Sub-assy, Spiral W/Sensor
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84431 Switch, Vehicle Approaching Speaker
84450 Switch Assy, Ignition OR Starter
84550 Switch Assy, Parking Brake
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84720J Switch Assy, Pattern Select
84740B Switch Assy, Air Purifier
84751 Switch, Seat Heater
84794 Switch, FR Wiper Deicer
84794A Relay, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84810K Switch, Chair Lift Arm
84820 Master Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84970 Switch Assy, Combination
84970E Switch Assy, Combination NO.2
84970F Switch Assy, Combination, NO.3
84975 Switch, Trip
84988L Switch, Vsc Off
85432 Solenoid, Key Interlock
85530 Socket Assy, Power Outlet, NO.1
85535B Cover, Power Outlet Socket, NO.1
85912 Relay, Defogger
85916P Relay, Headlamp
85924 Relay, Ignition Control
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85942 Relay, Headlamp Cleaner Control
87290F Switch Assy, Eco
87346K Relay, Ptc Heater
88185A Relay, Pre-collision City Heater
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89257 Computer, Cooling Fan
89451A Sensor, Shift Lever Position
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89681A Computer, Power Management Control
89730A Relay(FOR SECURITY WARNING)
89960 Computer Assy, Headlamp Leveling
89981C Computer, Hybrid Vehicle Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
