Toyota Aqua

2011-12 → 2021-06 · chassis NHP10 · catalogue 125110 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Horn

4 part groups · 2 illustrations

Illustrations

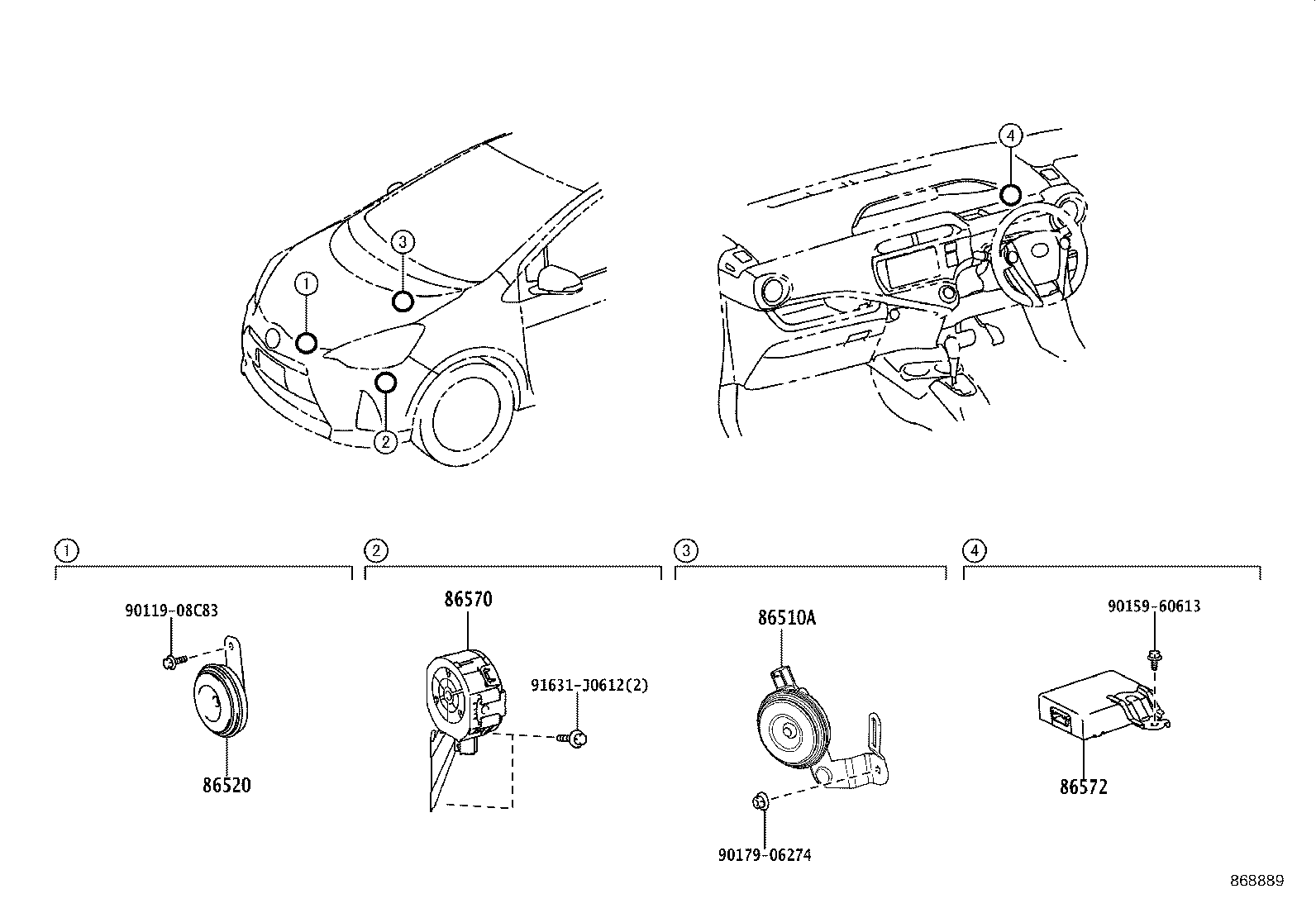

Figure 864779E 864779E 2011-12 → 2020-08 Figure 868889 868889 2020-08 → —

Part groups

PNCDescription
86510A Horn Assy, Security
86520 Horn Assy, Low Pitched
86570 Speaker Assy, Vehicle Approaching
86572 Controller, Vehicle Approaching Speaker
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
