Toyota Aqua

2021-06 → present · chassis MXPK1# · catalogue 125120 · Japan

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

11 part groups · 2 illustrations

Illustrations

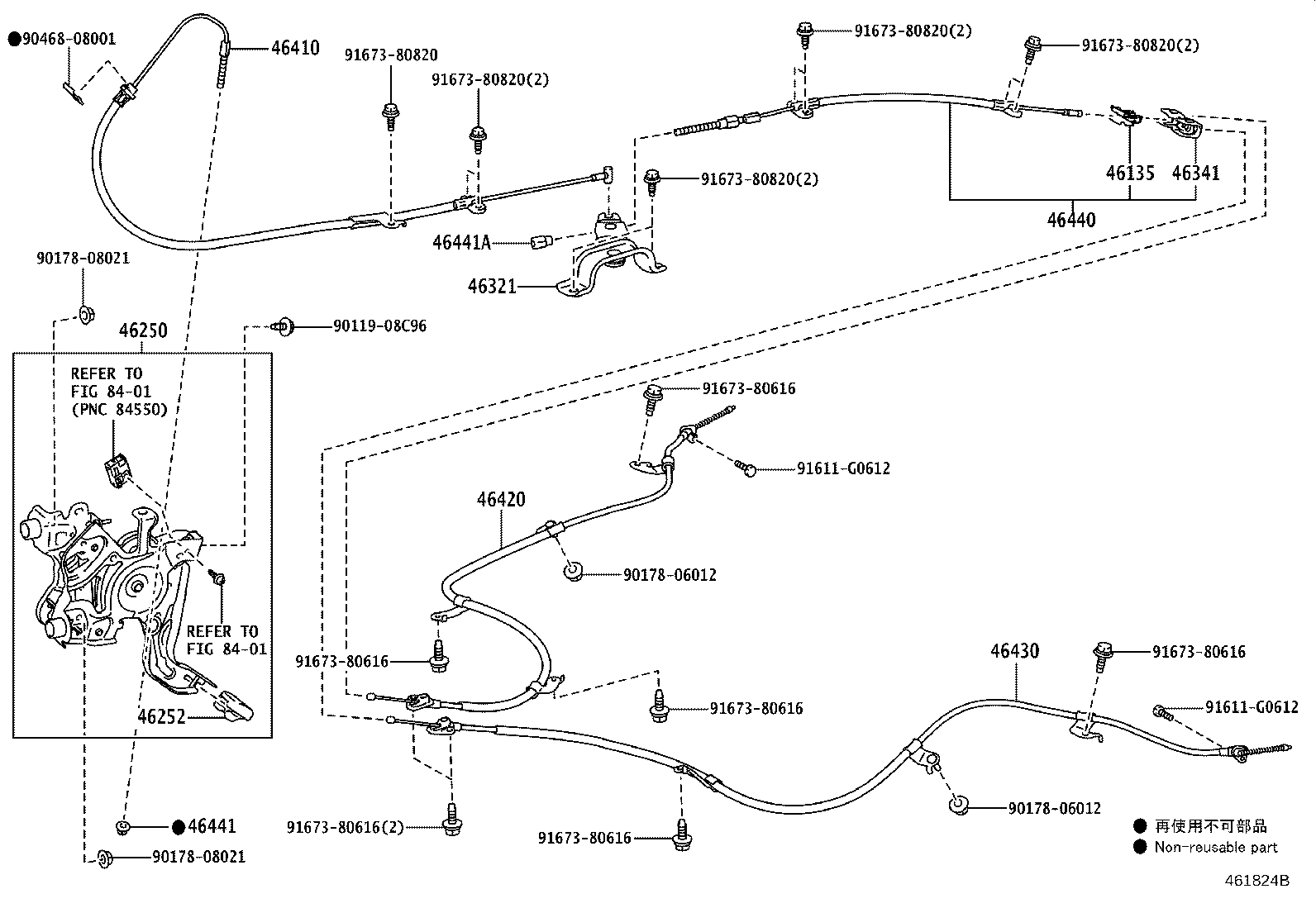

Figure 461823B 461823B 2021-06 → — Figure 461824B 461824B 2021-06 → —

Part groups

PNCDescription
46135 Stopper, Parking Brake Cable End
46250 Pedal Assy, Parking Brake W/O Cable
46252 Pad, Parking Pedal
46321 Lever, Parking Brake Intermediate
46341 Equalizer, Parking Brake
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46430 Cable Assy, Parking Brake, NO.3
46440 Cable Assy, Parking Brake, NO.4
46441 Nut, Wire Adjusting, NO.1
46441A Nut, Wire Adjusting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
