Toyota Aqua

2021-06 → present · chassis MXPK1# · catalogue 125120 · Japan

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

8 part groups · 2 illustrations

Illustrations

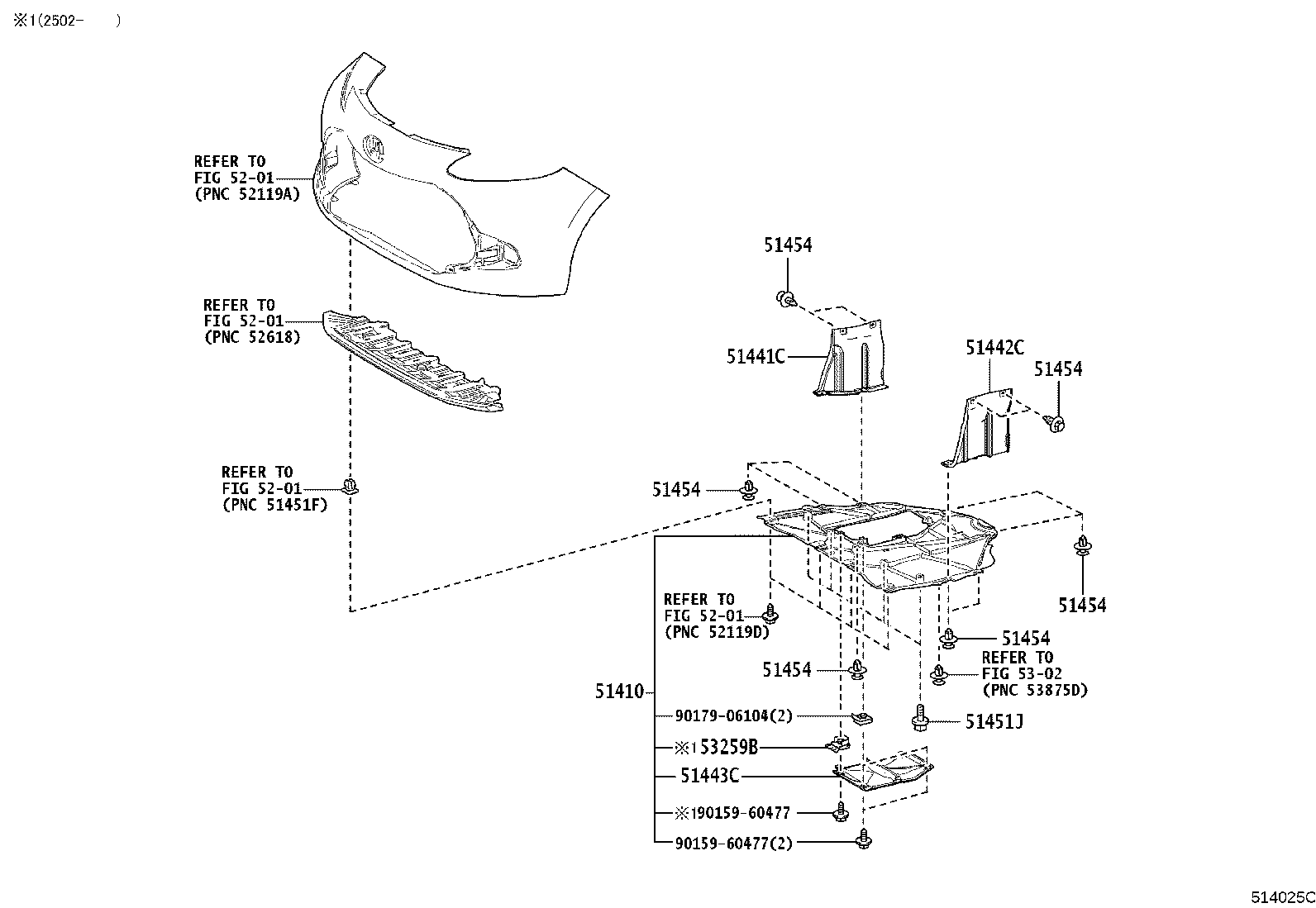

Figure 514024 514024 2021-06 → — Figure 514025C 514025C 2021-06 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51206A Member Sub-assy, Rear Suspension
51410 Cover Assy, Engine Under, NO.1
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51443C Cover, Engine Under, Rear RH
51451J Bolt, NO.1
51454 Clip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
