Toyota Aqua

2021-06 → present · chassis MXPK1# · catalogue 125120 · Japan

Supported model Data version 2022-12

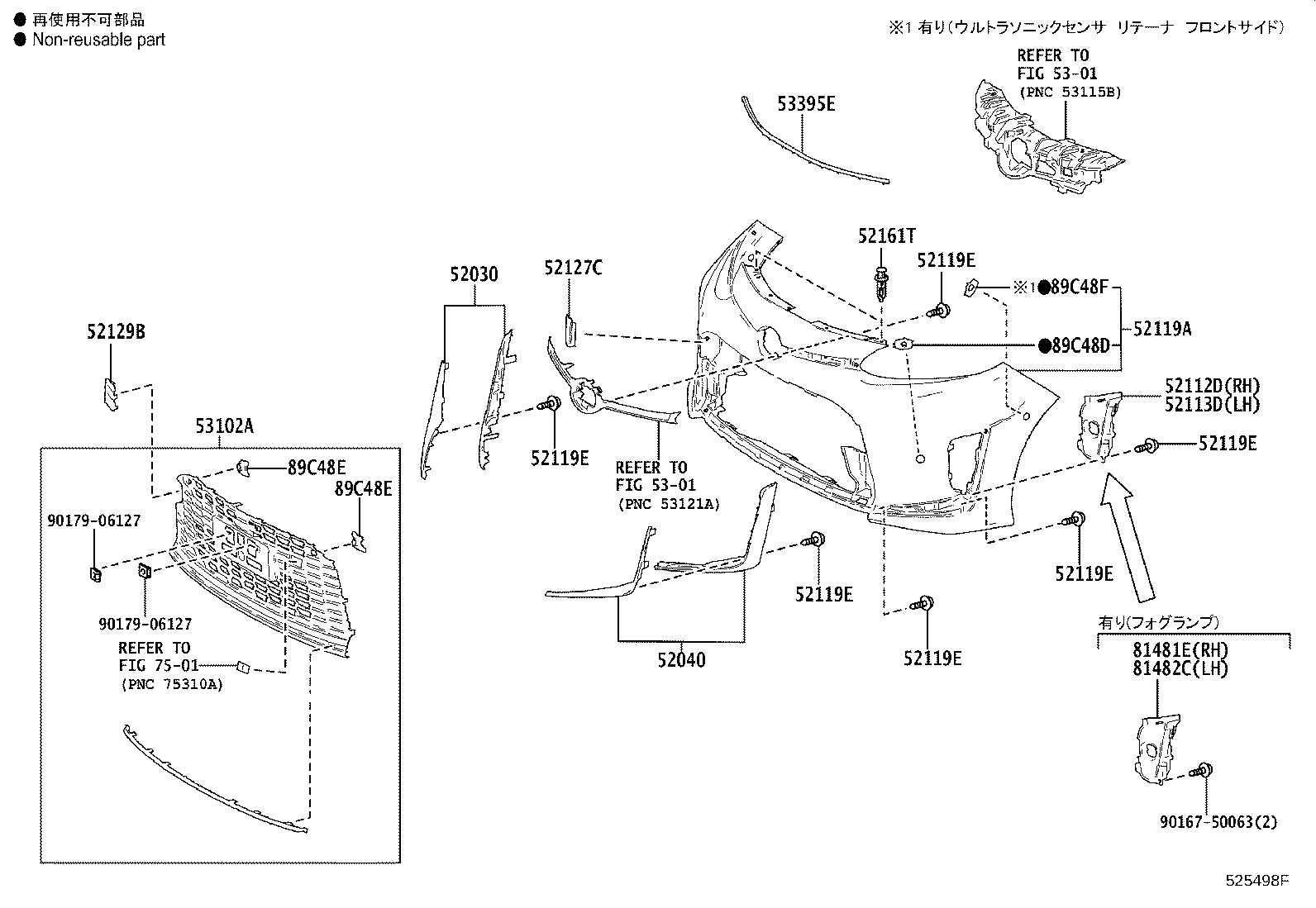

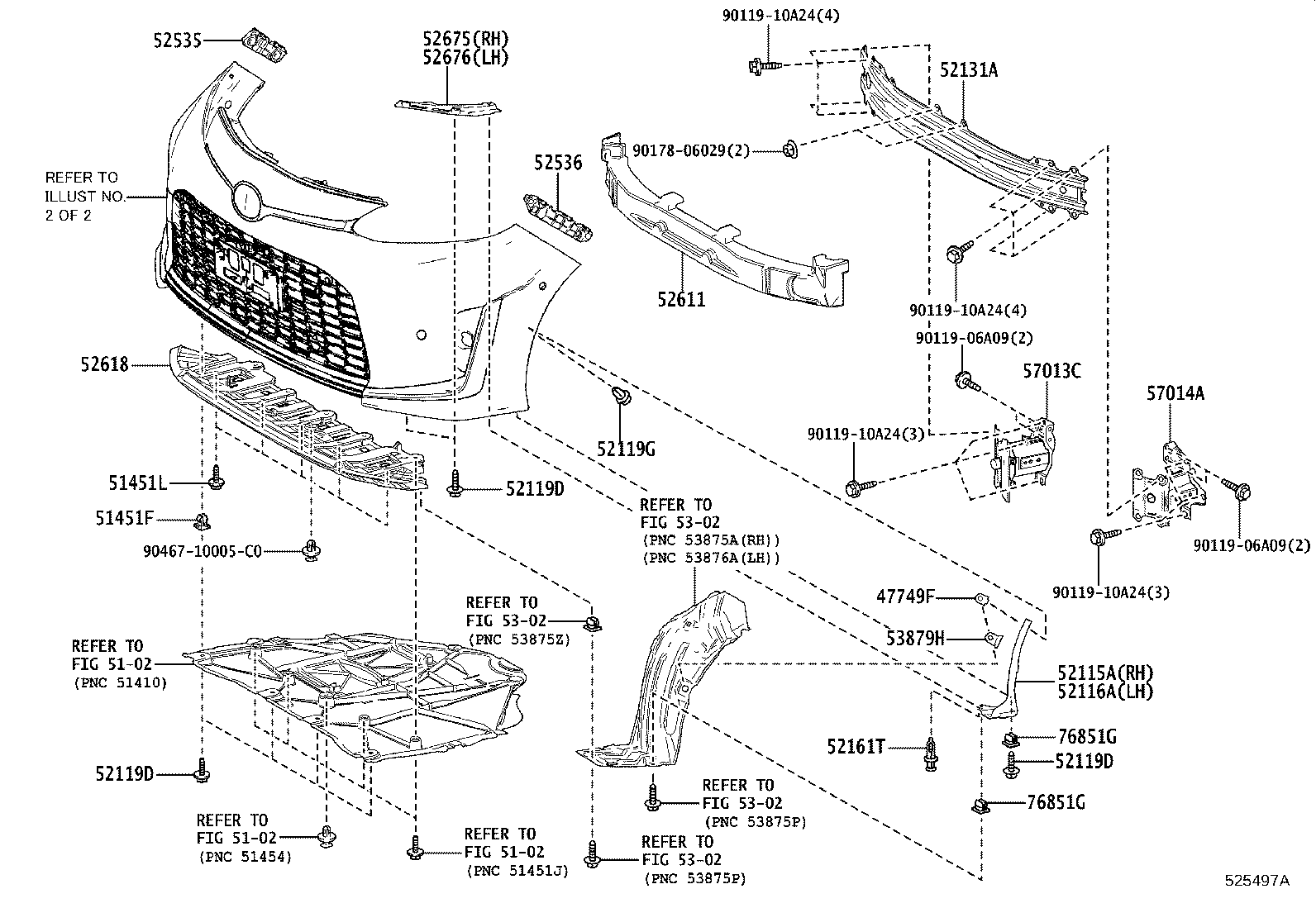

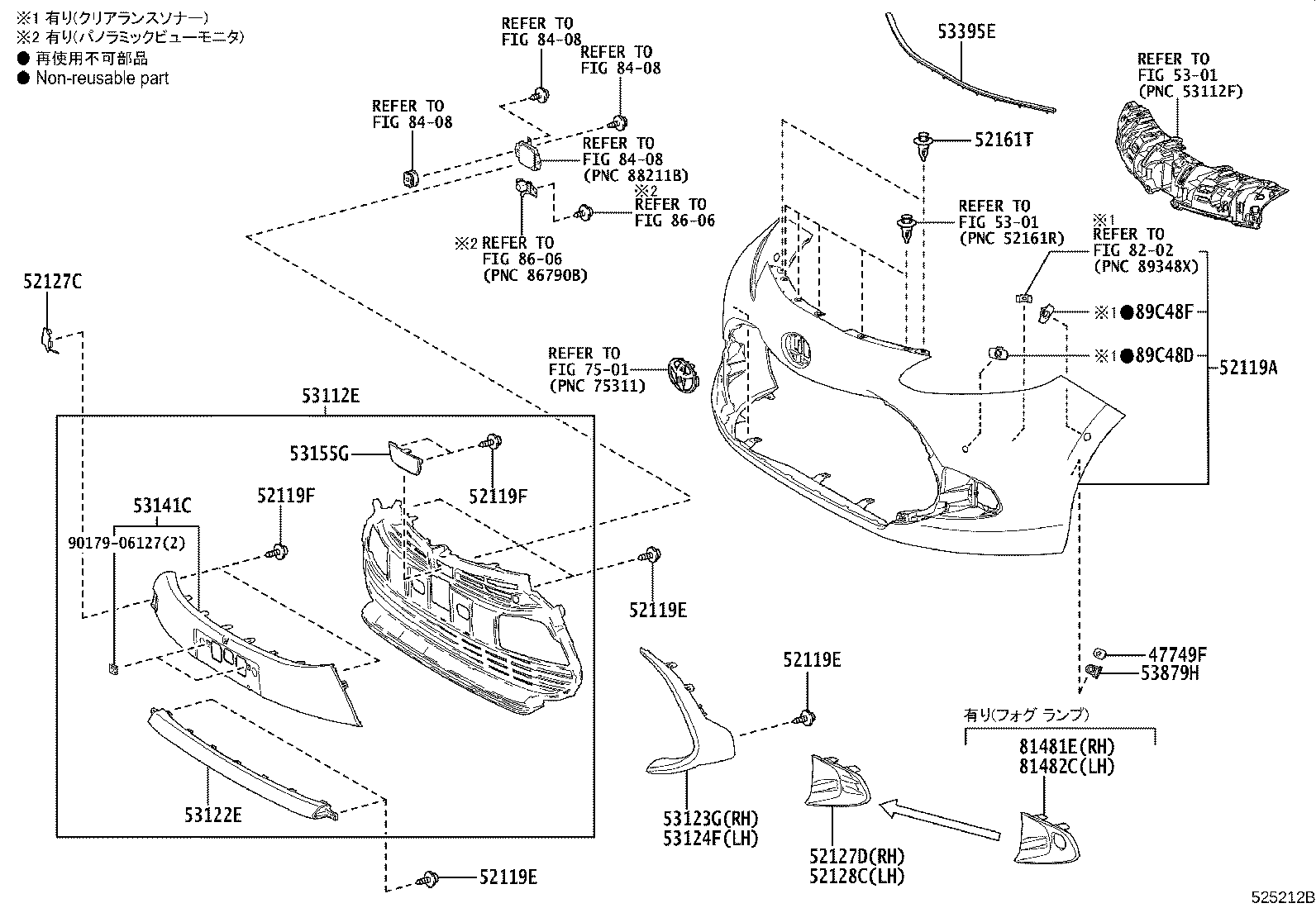

Front Bumper & Bumper Stay

43 part groups · 4 illustrations

PNC	Description
47749F	Clip, Pin Hold
51451F	Grommet, NO.1
51451L	Bolt, NO.1
52030	Cover Assy, Front Bumper Hole, RH
52040	Cover Assy, Front Bumper Hole, LH
52112D	Extension, Front Bumper, RH
52113D	Extension, Front Bumper, LH
52115A	Support, Front Bumper Side, RH
52116A	Support, Front Bumper Side, LH
52119A	Cover, Front Bumper
52119D	Screw, NO.1
52119E	Screw, NO.2
52119F	Screw, NO.3
52119G	Clip, NO.1
52127C	Cover, Front Bumper Hole
52127D	Cover, Front Bumper Hole, RH
52128C	Cover, Front Bumper Hole, LH
52129B	Cover, Front Bumper, Lower
52131A	Reinforcement, Front Bumper
52161T	Piece, Front Bumper
52535	Retainer, Front Bumper Side, RH
52536	Retainer, Front Bumper Side, LH
52611	Absorber, Front Bumper Energy
52618	Absorber, Front Bumper, Lower
52675	Support, Front Bumper Lower Side, RH
52676	Support, Front Bumper Lower Side, LH
53102A	Grille Sub-assy, Radiator, Lwr
53112E	Grille, Radiator, Lower NO.1
53122E	Moulding, Radiator Grille, Lower
53123G	Moulding, Radiator Grille Side, RH
53124F	Moulding, Radiator Grille Side, LH
53141C	Garnish, Radiator Grille
53155G	Seal, Radiator Grille
53395E	Seal, Hood TO Front End Panel
53879H	Retainer, Front Fender Liner
57013C	Bracket Sub-assy, Front Side Member, RH
57014A	Bracket Sub-assy, Front Side Member, LH
76851G	Grommet, Screw, NO.1
81481E	Cover, Fog Lamp, RH
81482C	Cover, Fog Lamp, LH
89C48D	Retainer, Ultrasonic Sensor, Front Corner
89C48E	Retainer, Ultrasonic Sensor, Front Center
89C48F	Retainer, Ultrasonic Sensor, Front Side

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
