Factory parts data · Europe

Toyota Aqua

2021-06 → present · chassis MXPK1# · catalogue 125120 · Japan

Supported model Data version 2022-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

4 part groups · 2 illustrations

Illustrations

Figure 537852A

537852A 2021-06 → —

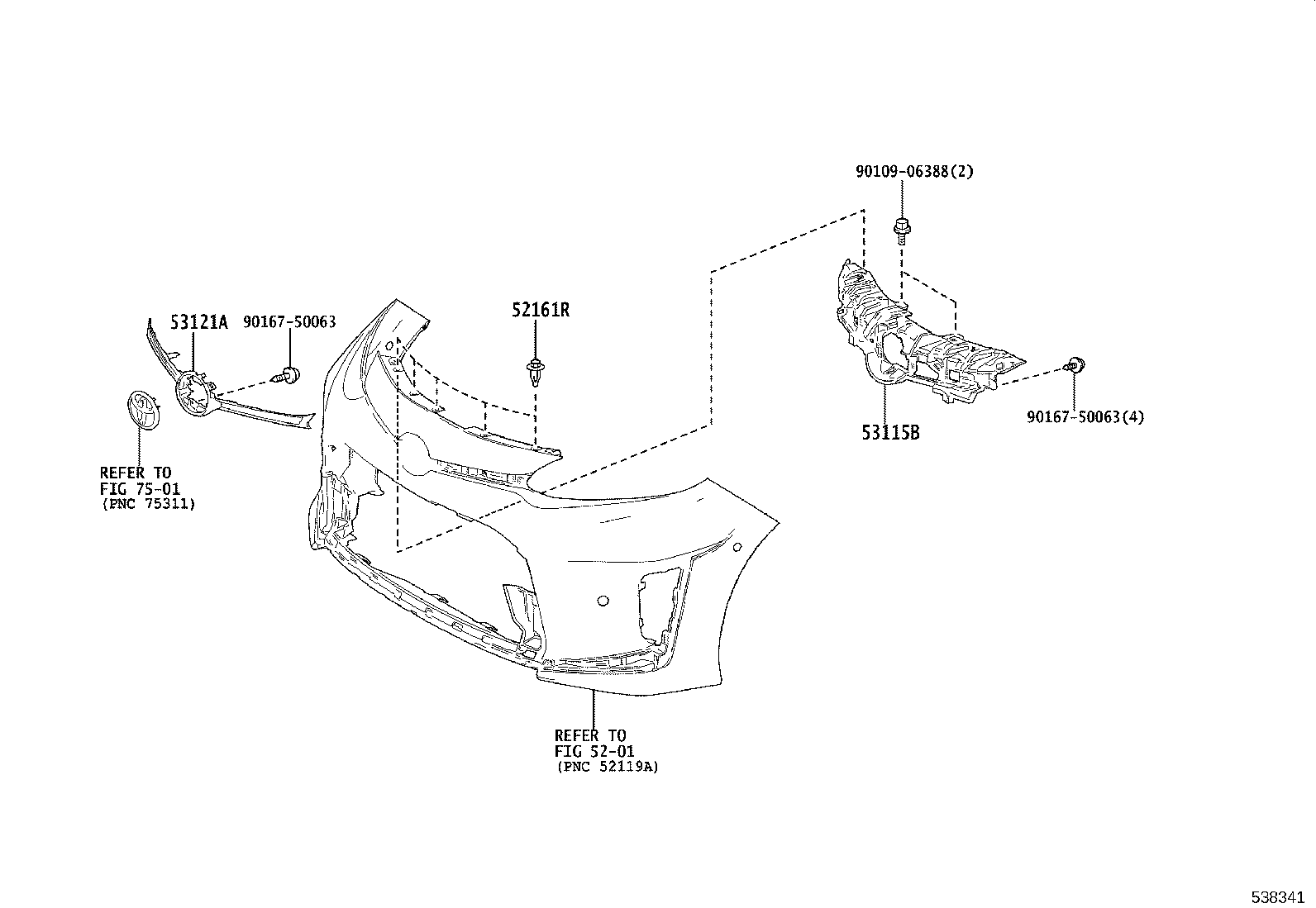

538341 2022-07 → —

Part groups

PNC	Description
52161R	Piece, Front Bumper
53112F	Grille, Radiator, Inside
53115B	Bracket, Radiator Grille
53121A	Moulding, Radiator Grille

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
