Toyota Aqua
2021-06 → present · chassis MXPK1# · catalogue 125120 · Japan
Supported model
Data version 2022-12

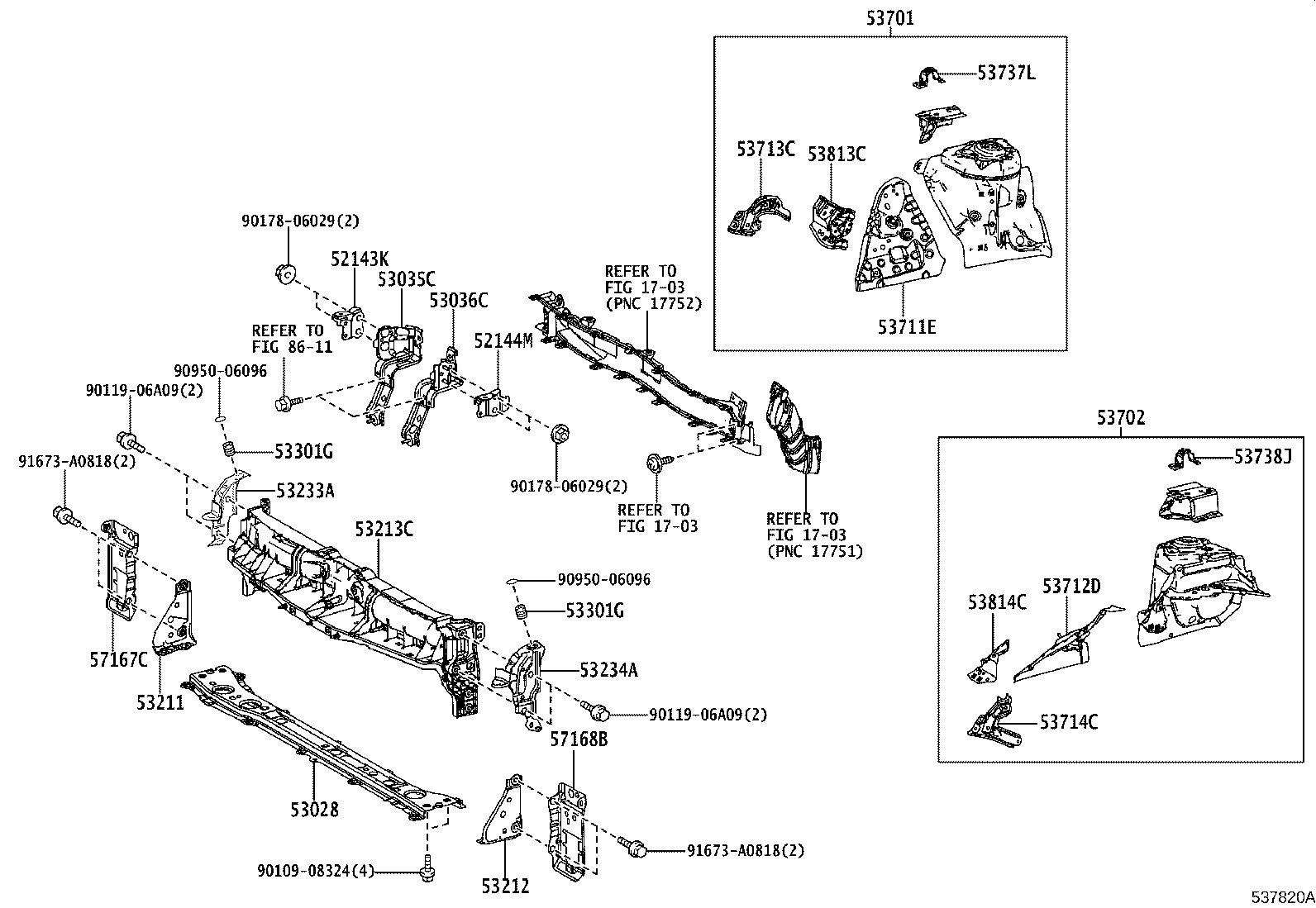

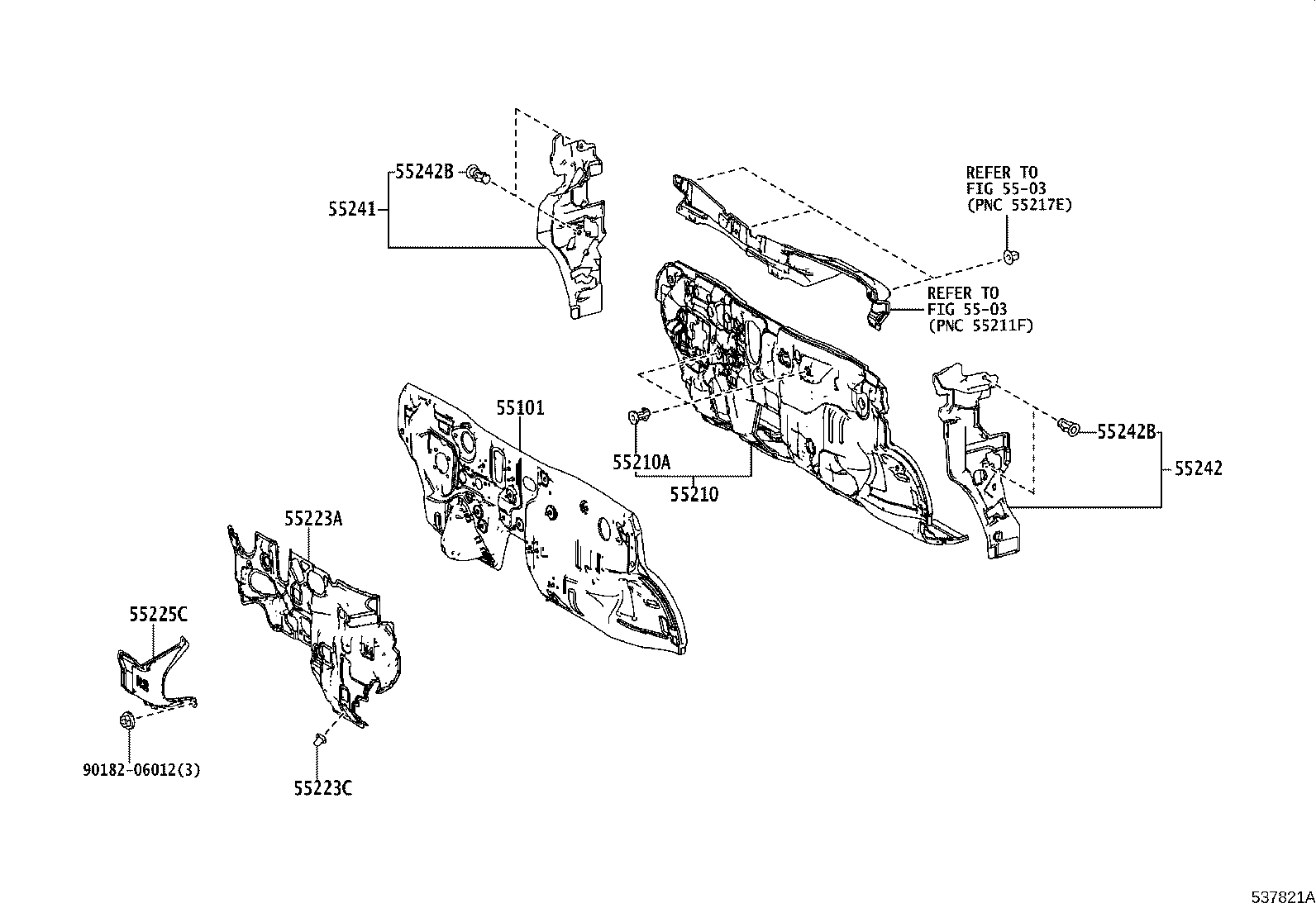

Front Fender Apron & Dash Panel
39 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16562M | Seal, Radiator TO Support, NO.2 |
| 16592A | Guide, Radiator Air, NO.3 |
| 16594A | Guide, Radiator Air, NO.2 |
| 16681A | Plate, Radiator Upper Air Guide |
| 16691A | Plate, Radiator Side Air Guide, Front RH |
| 16695A | Plate, Radiator Side Air Guide, Front LH |
| 17311B | Duct, Air Inlet, NO.1 |
| 52143K | Arm, Front Bumper, Lower RH |
| 52144M | Arm, Front Bumper, Lower LH |
| 53028 | Support Sub-assy, Radiator, Lower |
| 53035C | Bracket Sub-assy, Front End Panel Mounting, RH |
| 53036C | Bracket Sub-assy, Front End Panel Mounting, LH |
| 53211 | Support, Radiator, RH |
| 53212 | Support, Radiator, LH |
| 53213C | Support, Radiator, Upper Front |
| 53233A | Bracket, Headlamp, NO.1 RH |
| 53234A | Bracket, Headlamp, NO.1 LH |
| 53301G | Cushion, Hood Bumper |
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53711E | Apron, Front Fender, RH |
| 53712D | Apron, Front Fender, LH |
| 53713C | Extension, Front Fender Apron, Front RH |
| 53714C | Extension, Front Fender Apron, Front LH |
| 53737L | Gusset, Front Fender Apron Wind Guide, RH |
| 53738J | Gusset, Front Fender Apron Wind Guide, LH |
| 53813C | Extension, Front Fender, RH |
| 53814C | Extension, Front Fender, LH |
| 55101 | Panel Sub-assy, Dash |
| 55210 | Insulator Assy, Dash Panel |
| 55210A | Clip |
| 55223A | Insulator, Dash Panel, Outer |
| 55223C | Clip |
| 55225C | Insulator, Dash Panel Heat |
| 55241 | Silencer, Front Panel Side, NO.1 RH |
| 55242 | Silencer, Front Panel Side, NO.1 LH |
| 55242B | Clip, Front Panel Side Silencer |
| 57167C | Gusset, Front Crossmember Side, RH |
| 57168B | Gusset, Front Crossmember Side, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
