Toyota Aqua
2021-06 → present · chassis MXPK1# · catalogue 125120 · Japan
Supported model
Data version 2022-12

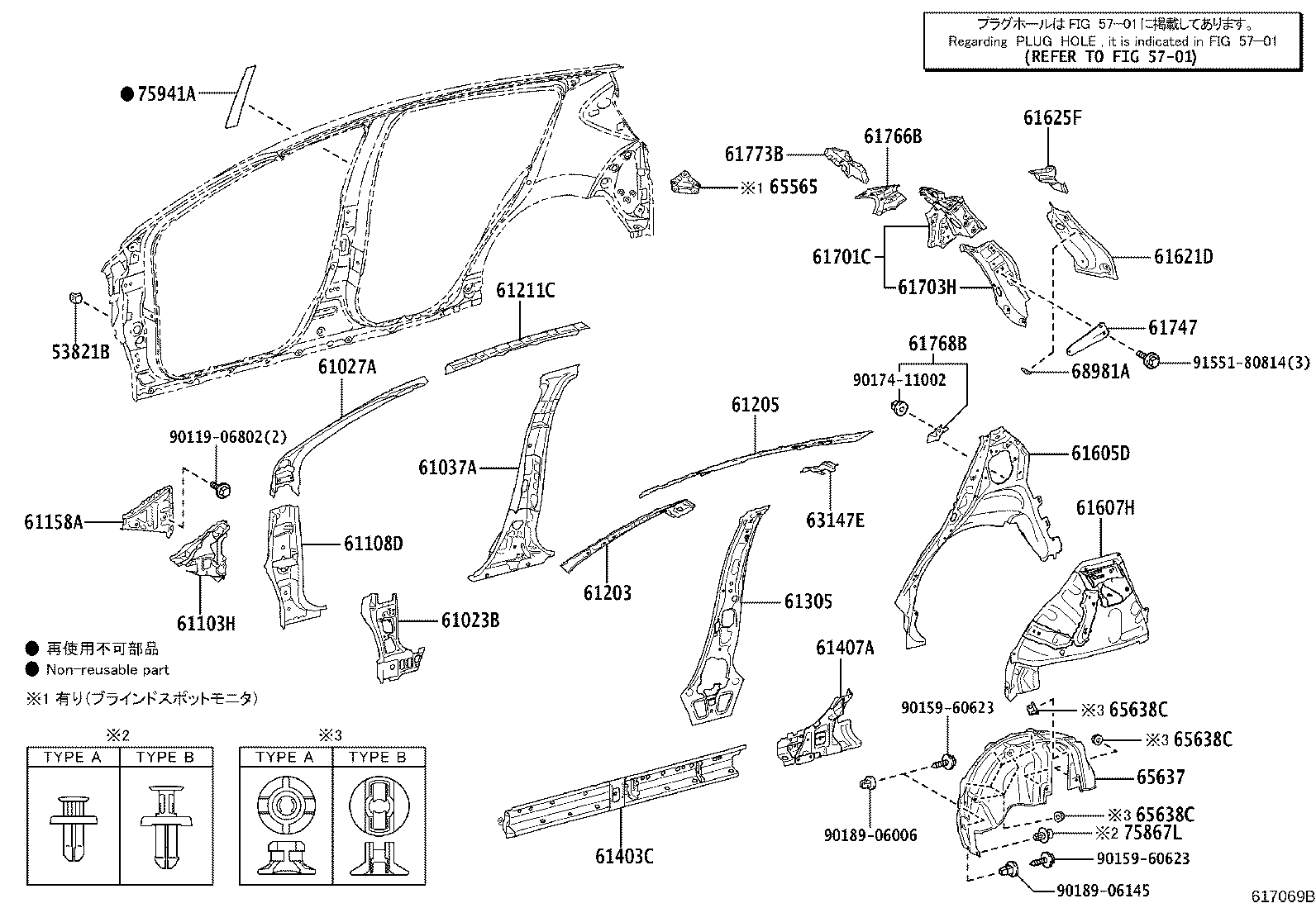

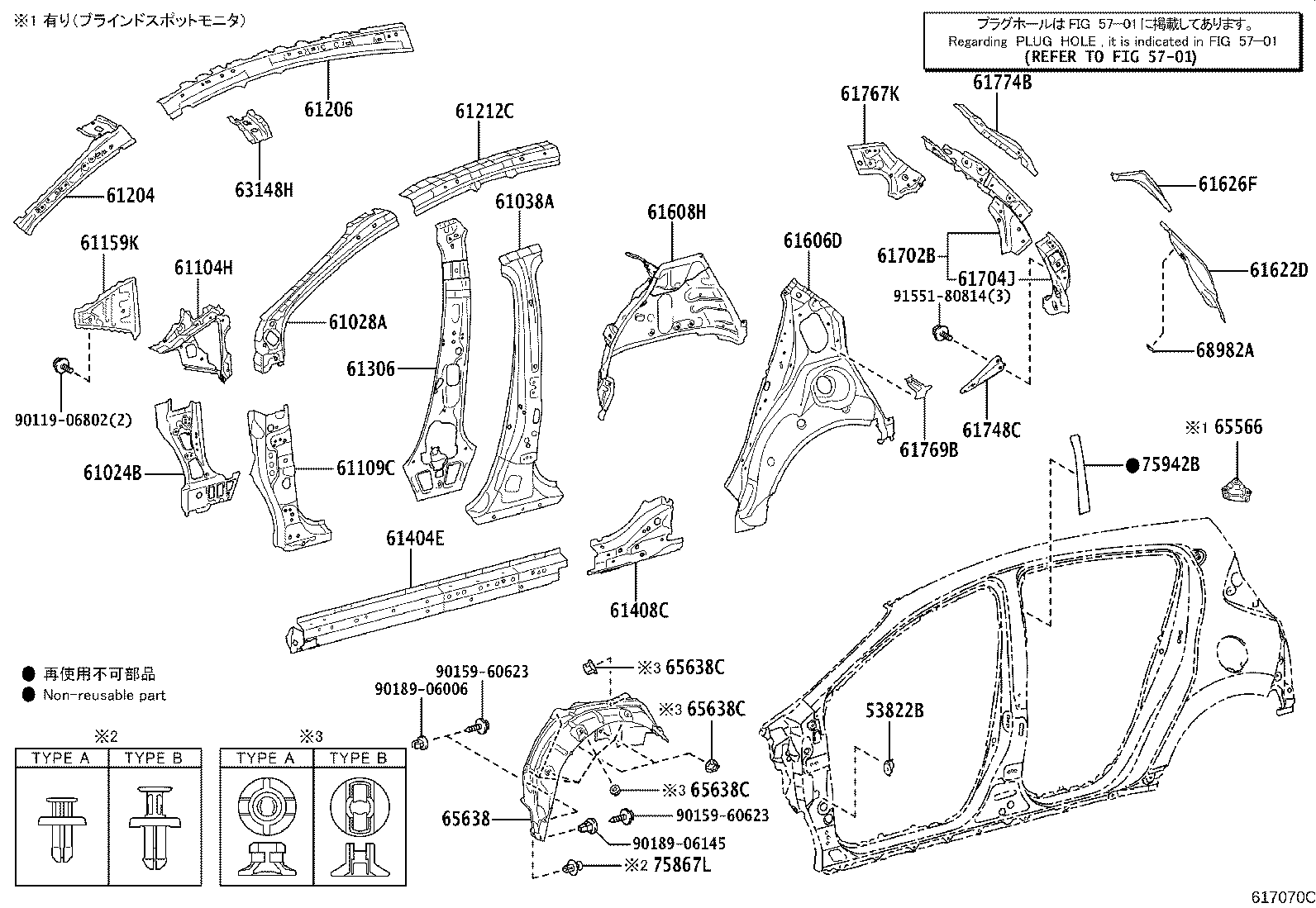

Side Member
66 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53821B | Bracket, Front Fender, Rear RH |
| 53822B | Bracket, Front Fender, Rear LH |
| 61013C | Panel Sub-assy, Side, Inner RH |
| 61014C | Panel Sub-assy, Side, Inner LH |
| 61023B | Pillar Sub-assy, Front Body, Inner RH |
| 61024B | Pillar Sub-assy, Front Body, Inner LH |
| 61027A | Pillar Sub-assy, Front Body, Outer RH |
| 61028A | Pillar Sub-assy, Front Body, Outer LH |
| 61037A | Reinforcement Sub-assy, Center Body Pillar, RH |
| 61038A | Reinforcement Sub-assy, Center Body Pillar, LH |
| 61103H | Panel Sub-assy, Side, NO.2 RH |
| 61104H | Panel Sub-assy, Side, NO.2 LH |
| 61108D | Reinforcement Sub-assy, Front Pillar, Lower RH |
| 61109C | Reinforcement Sub-assy, Front Pillar, Lower LH |
| 61158A | Extension, Front Piller, Lower RH |
| 61159K | Extension, Front Piller, Lower LH |
| 61203 | Rail Sub-assy, Roof Side, Inner RH |
| 61204 | Rail Sub-assy, Roof Side, Inner LH |
| 61205 | Rail Sub-assy, Roof Side, Inner Rear RH |
| 61206 | Rail Sub-assy, Roof Side, Inner Rear LH |
| 61211C | Rail, Roof Side, RH |
| 61212C | Rail, Roof Side, LH |
| 61217D | Rail, Roof Side, Outer NO.4 RH |
| 61218C | Rail, Roof Side, Outer NO.4 LH |
| 61305 | Reinforce Sub-assy, Center Body Pillar, Lower RH |
| 61306 | Reinforce Sub-assy, Center Body Pillar, Lower LH |
| 61311D | Panel, Rear Body, Front Outside RH |
| 61312D | Panel, Rear Body, Front Outside LH |
| 61403C | Reinforce Sub-assy, Rocker, Outer RH |
| 61404E | Reinforce Sub-assy, Rocker, Outer LH |
| 61407A | Plate Sub-assy, Step, Lower RH |
| 61408C | Plate Sub-assy, Step, Lower LH |
| 61601B | Panel Sub-assy, Quarter, RH |
| 61602C | Panel Sub-assy, Quarter, LH |
| 61605D | Panel Sub-assy, Quarter Wheel House, Outer RH |
| 61606D | Panel Sub-assy, Quarter Wheel House, Outer LH |
| 61607H | Panel Sub-assy, Quarter Wheel House, Inner RH |
| 61608H | Panel Sub-assy, Quarter Wheel House, Inner LH |
| 61621D | Trough, Back Door Opening, RH |
| 61622D | Trough, Back Door Opening, LH |
| 61625F | Extension, Quarter Panel, Upper RH |
| 61626F | Extension, Quarter Panel, Upper LH |
| 61701C | Panel Sub-assy, Roof Side, Outer RH |
| 61702B | Panel Sub-assy, Roof Side, Inner Upper LH |
| 61703H | Reinforcement Sub-assy, Roof Side, Inner RH |
| 61704J | Reinforcement Sub-assy, Roof Side, Inner LH |
| 61747 | Brace, Roof Side Inner TO Wheel House, RH |
| 61748C | Brace, Roof Side Inner TO Wheel House, LH |
| 61766B | Reinforcement, Belt Anchor TO Roof Side, Inner RH |
| 61767K | Retainer, Seat Belt Anchor, NO.2 LH |
| 61768B | Reinforce, Belt Anchor TO Roof Side, Inner Rear RH |
| 61769B | Reinforce, Belt Anchor TO Roof Side, Inner Rear LH |
| 61773B | Frame, Back Door Opening Side, Upper RH |
| 61774B | Frame, Back Door Opening Side, Upper LH |
| 63147E | Bracket, Roof Panel Reinforcement |
| 63148H | Bracket, Roof Panel Reinforcement |
| 65565 | Patch, Side Panel Rear End, RH |
| 65566 | Patch, Side Panel Rear End, LH |
| 65637 | Liner, Rear Wheel House, RH |
| 65638 | Liner, Rear Wheel House, LH |
| 65638C | Clip, Rear Wheel House Liner |
| 68981A | Retainer, Back Door Stay, RH |
| 68982A | Retainer, Back Door Stay, LH |
| 75867L | Clip, Rocker Panel Moulding |
| 75941A | Stripe, Center Pillar, RH |
| 75942B | Stripe, Center Pillar, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
