Toyota Aqua

2021-06 → present · chassis MXPK1# · catalogue 125120 · Japan

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

195 part groups · 11 illustrations

Illustrations

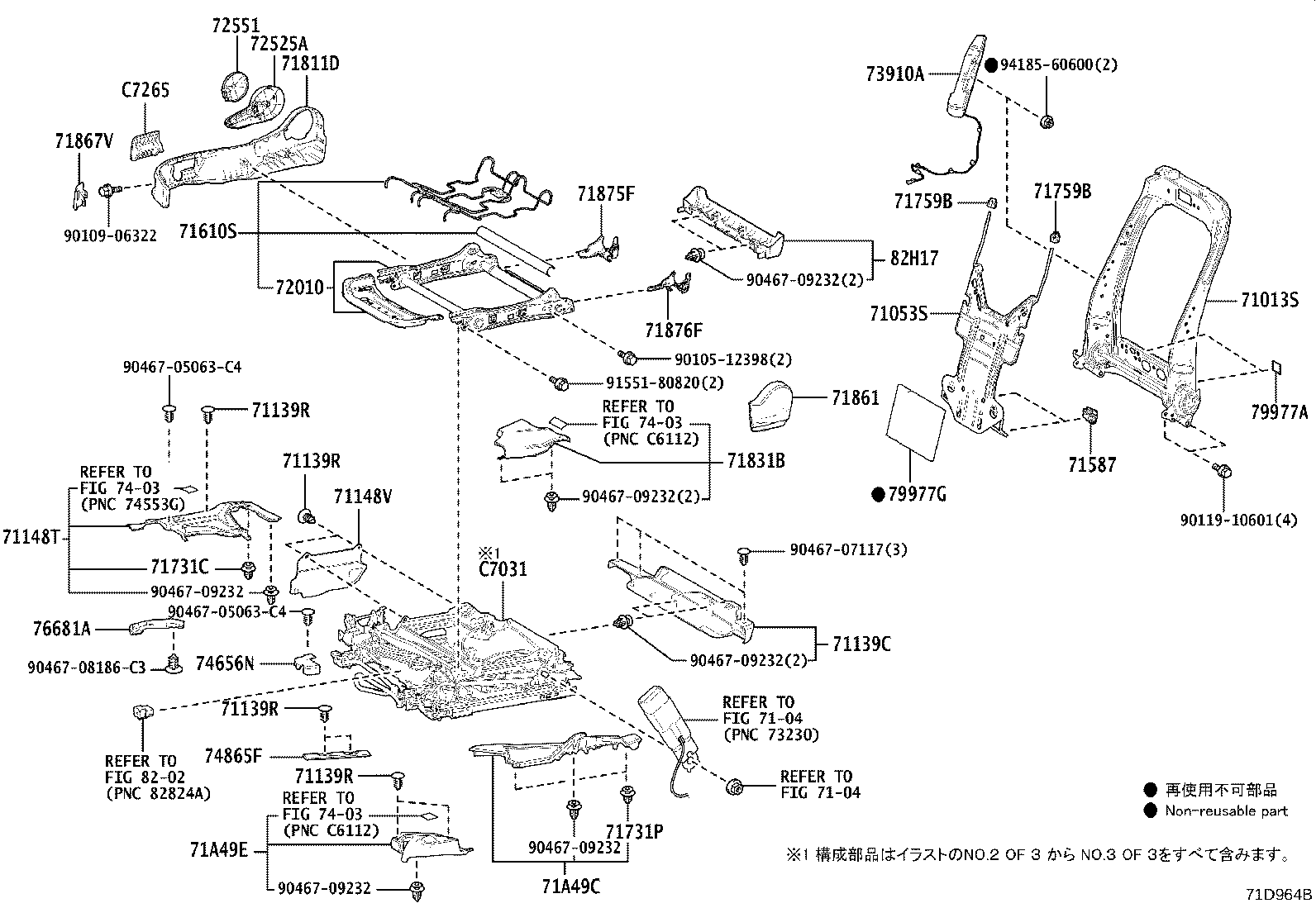

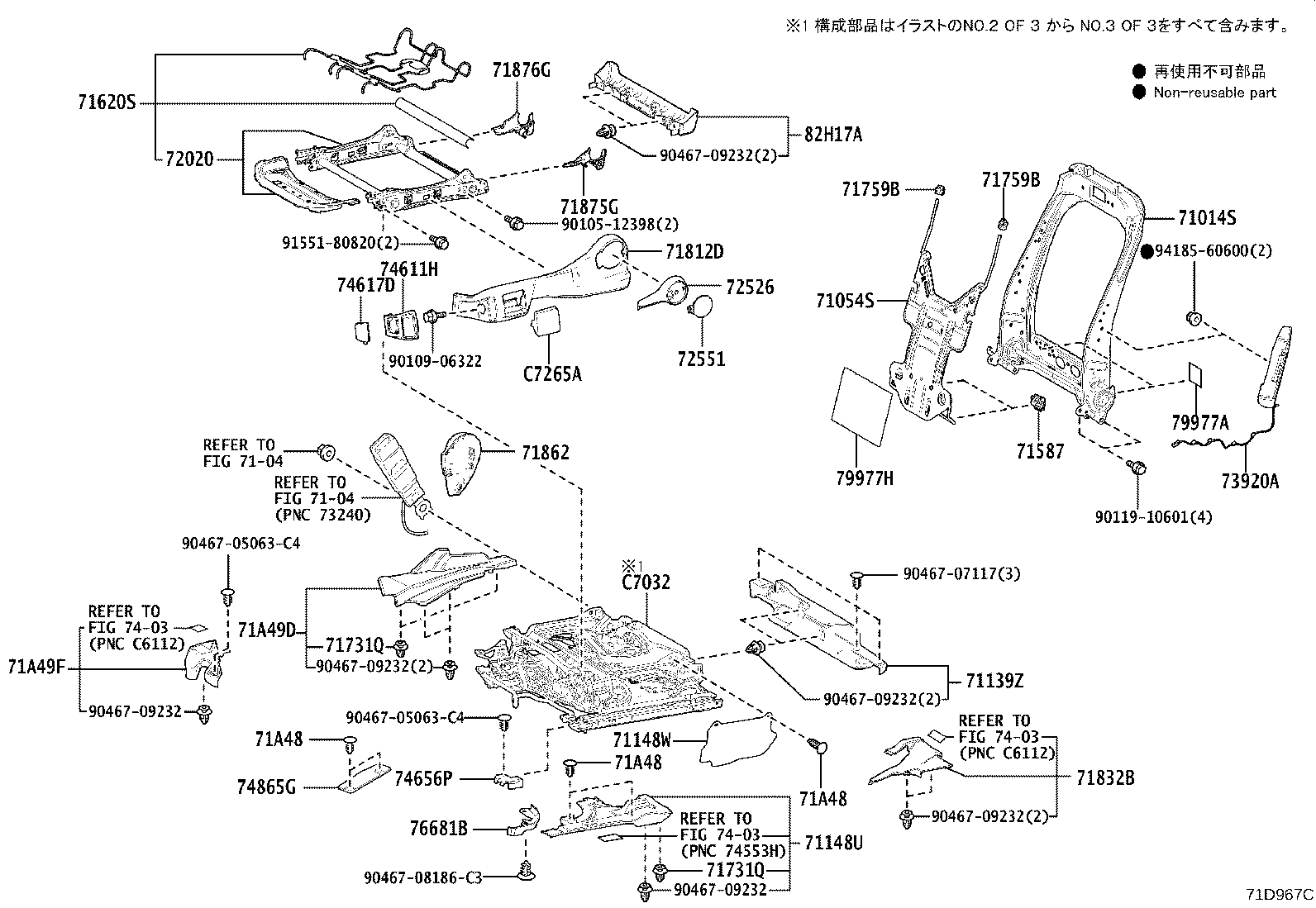

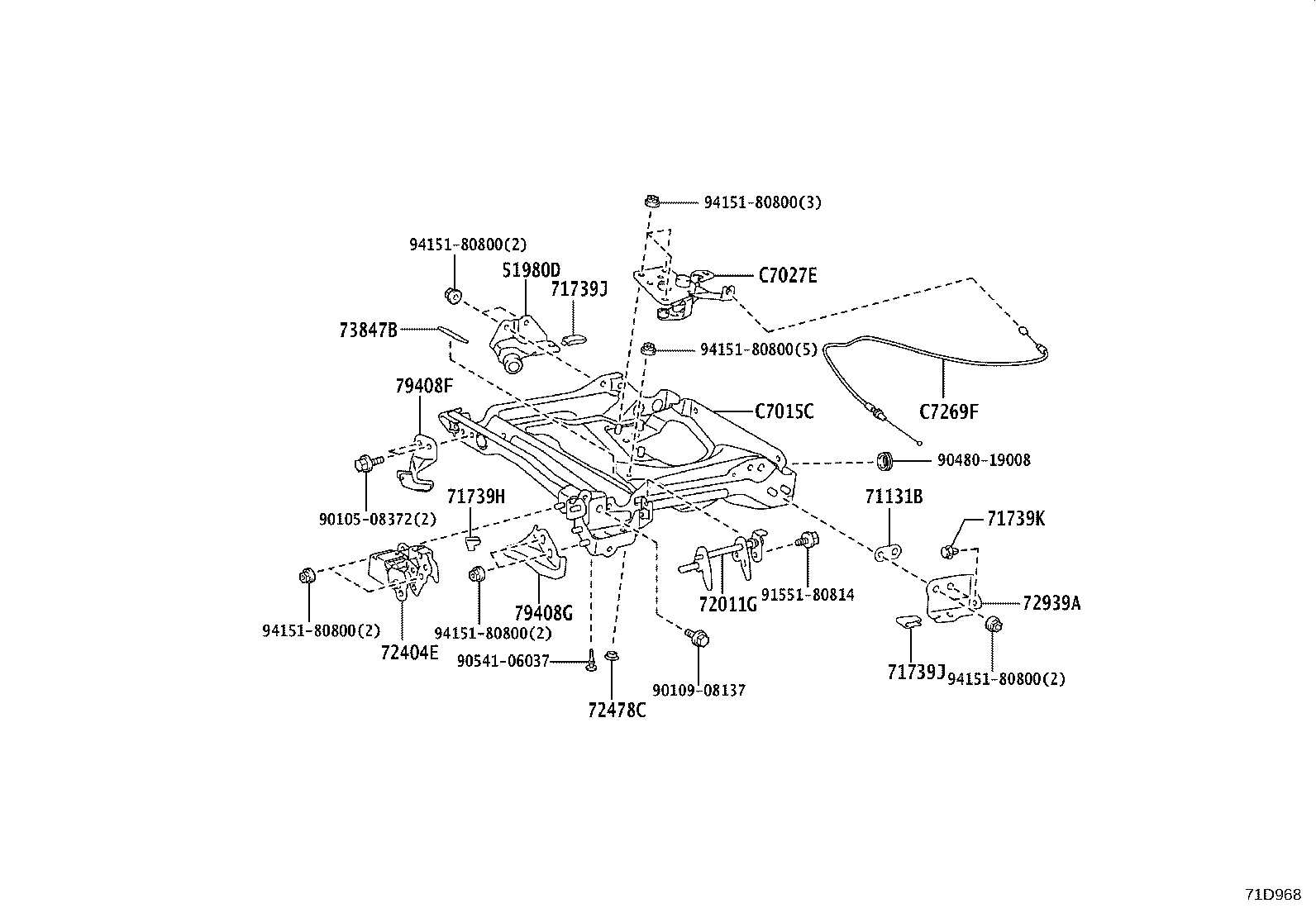

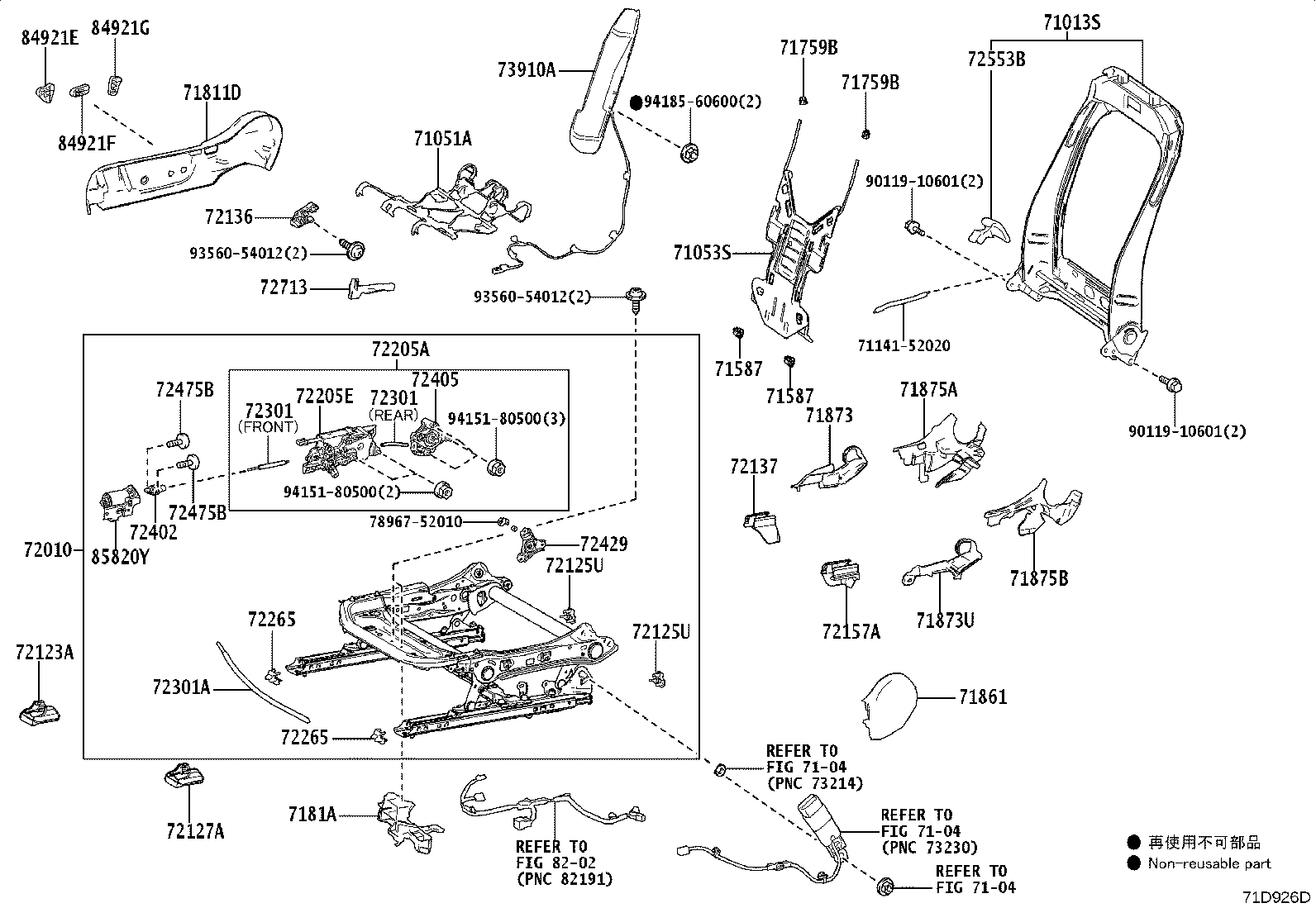

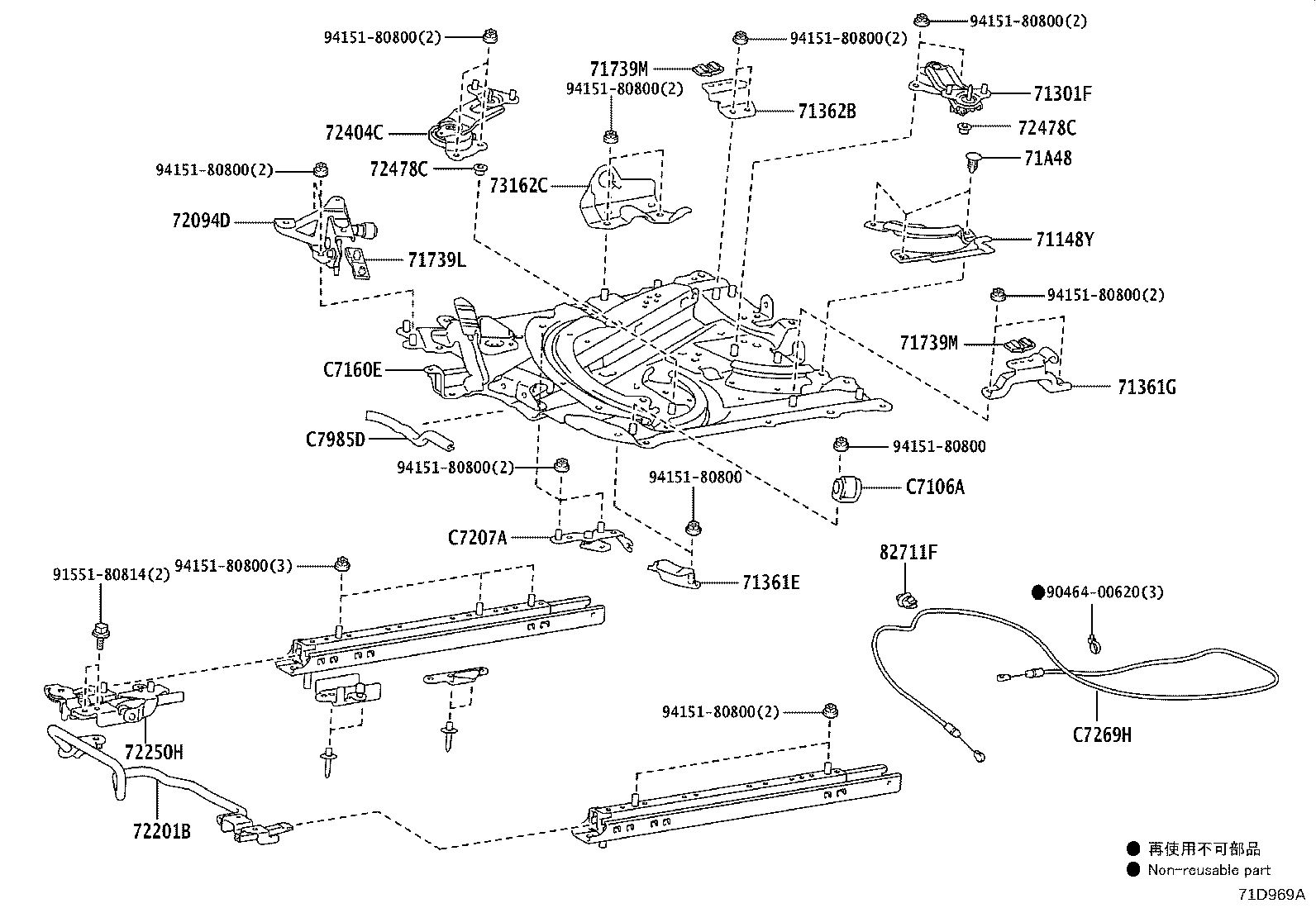

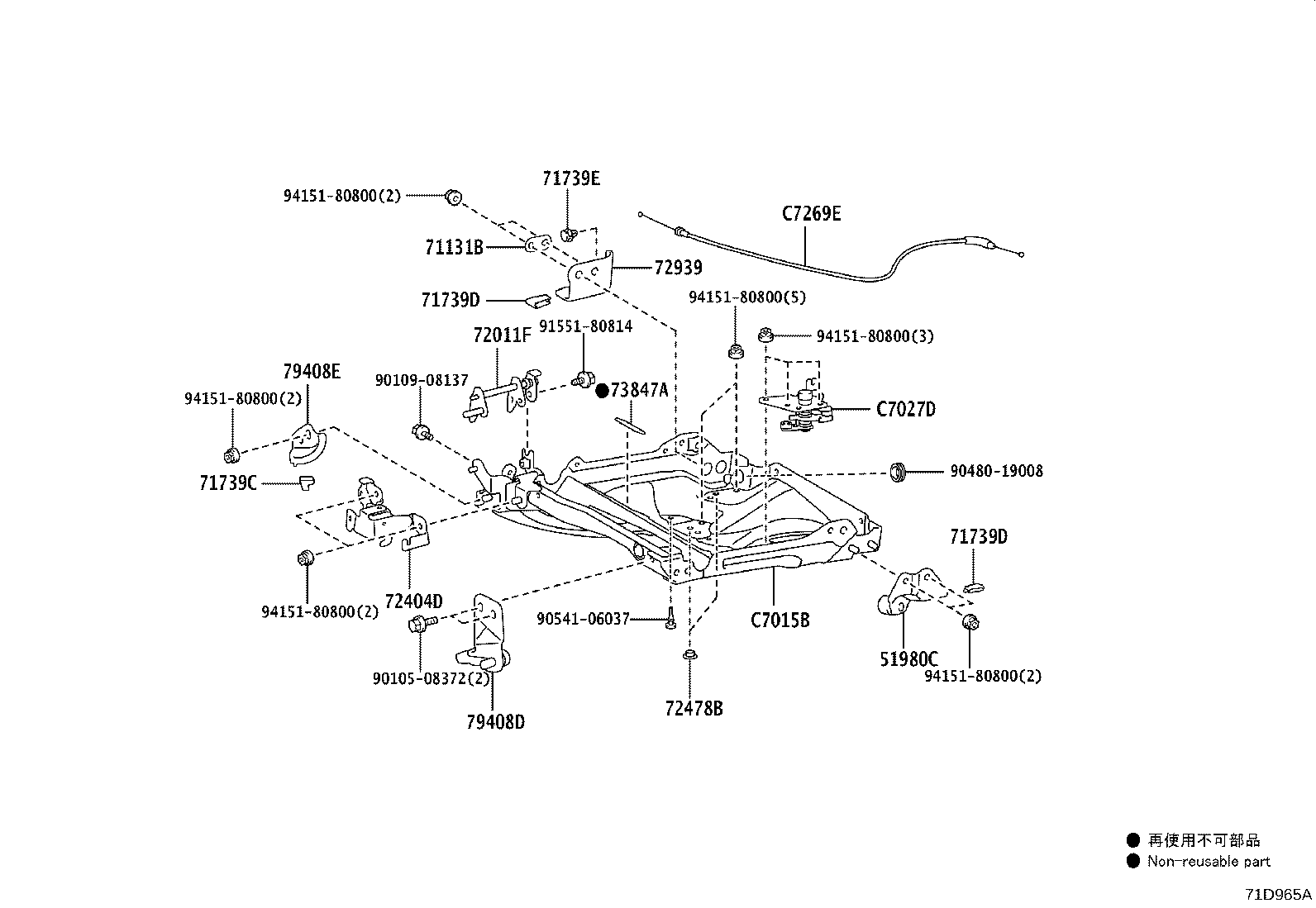

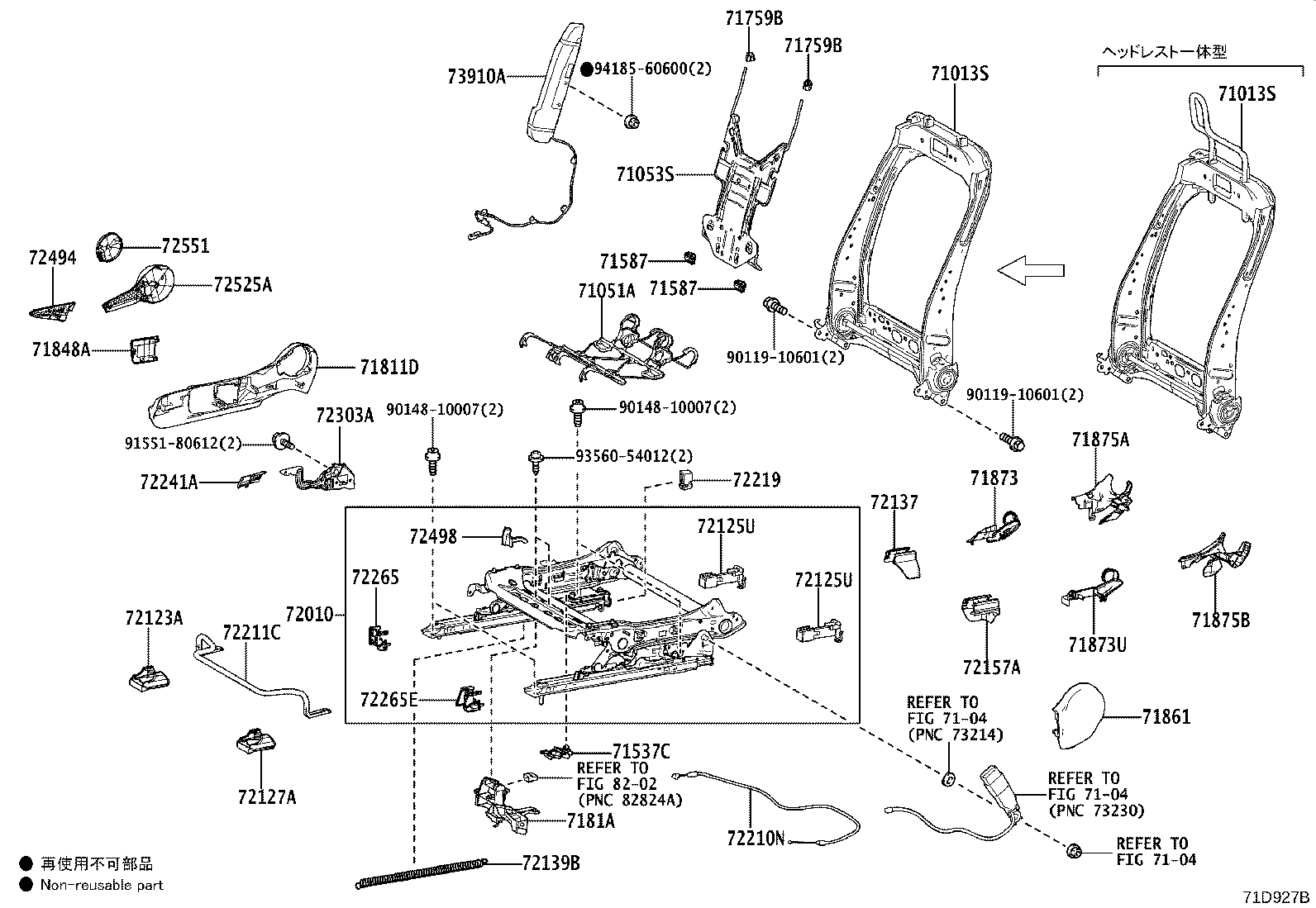

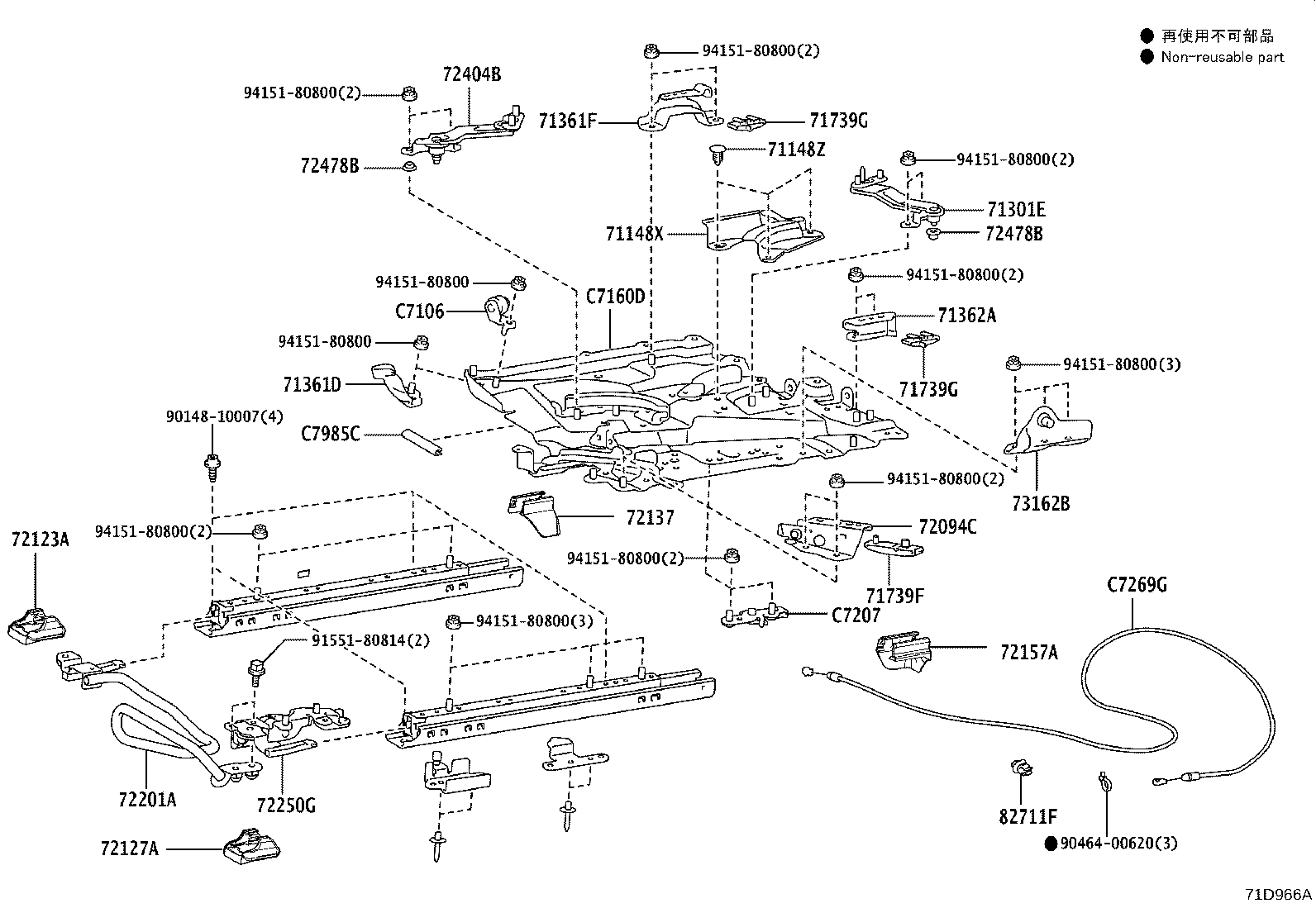

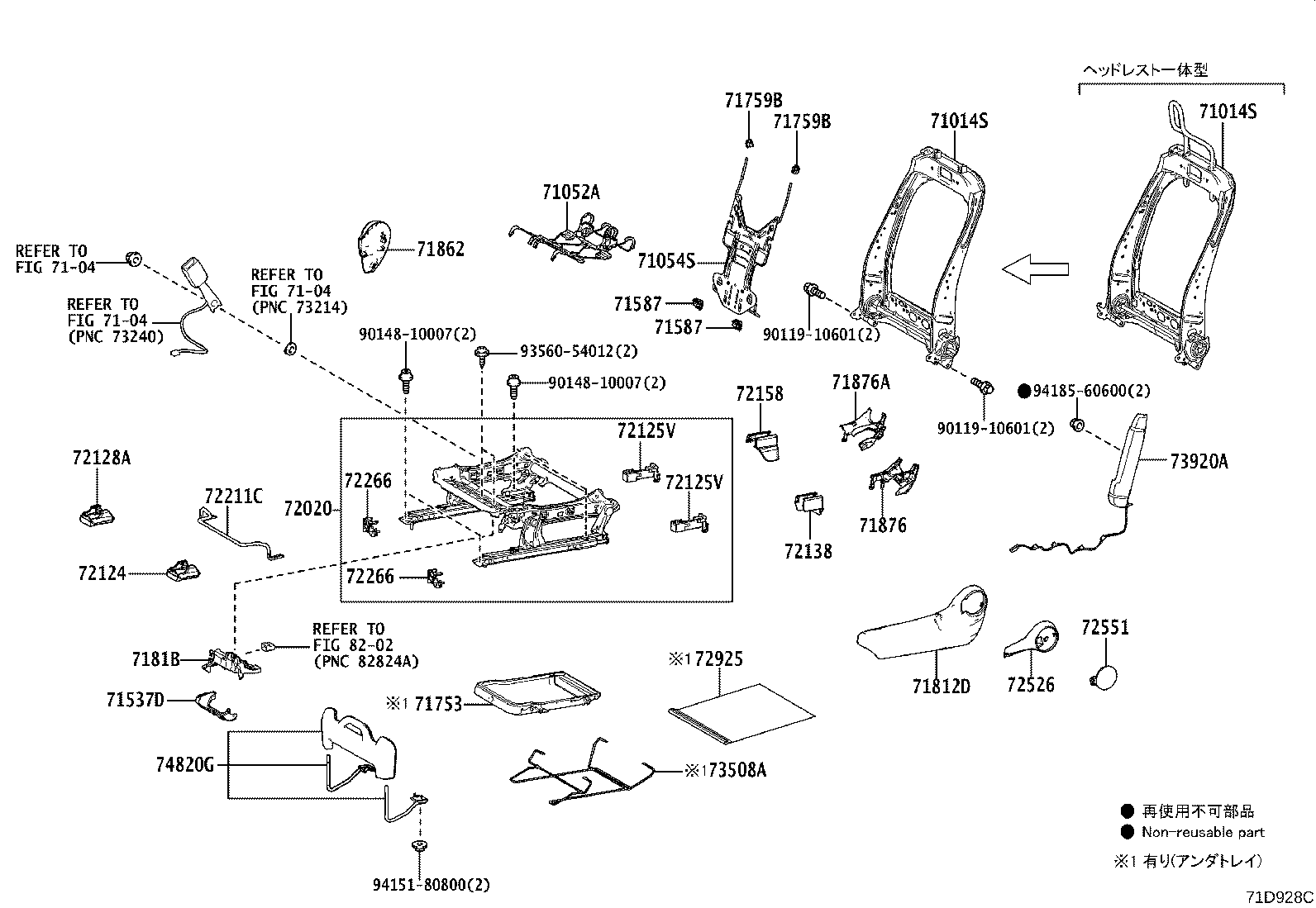

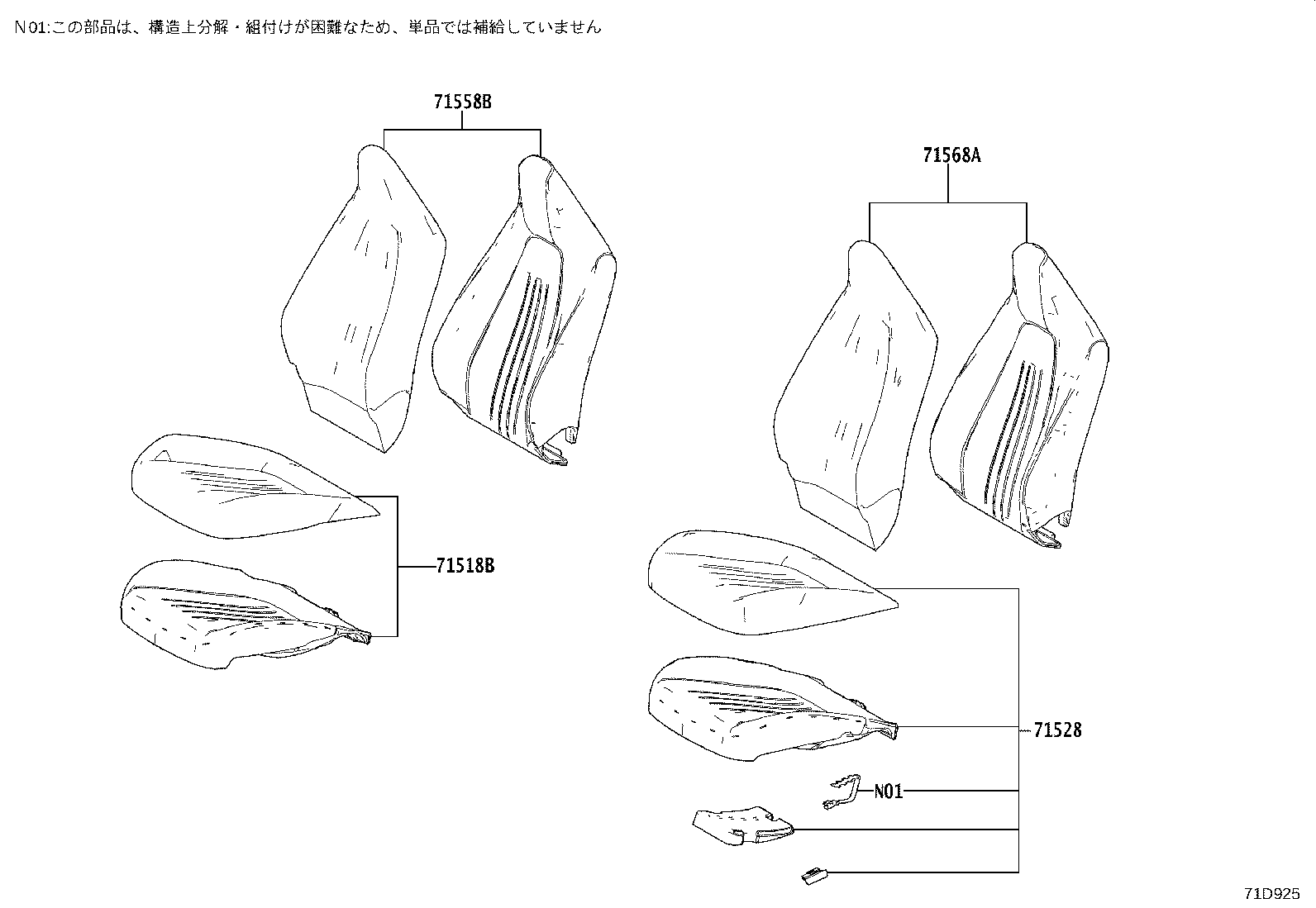

Figure 71D924B 71D924B 2021-06 → — Figure 71D925 71D925 2021-06 → — Figure 71D926D 71D926D 2021-06 → — Figure 71D927B 71D927B 2021-06 → — Figure 71D928C 71D928C 2021-06 → — Figure 71D964B 71D964B 2021-06 → — Figure 71D965A 71D965A 2021-06 → — Figure 71D966A 71D966A 2021-06 → — Figure 71D967C 71D967C 2021-06 → — Figure 71D968 71D968 2021-06 → — Figure 71D969A 71D969A 2021-06 → —

Part groups

PNCDescription
51980C Hook Assy, Pintle, RH
51980D Hook Assy, Pintle, LH
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71053S Spring Sub-assy, Front Seatback, RH
71054S Spring Sub-assy, Front Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71131B Plate, Front Seat Cushion, NO.1
71139C Cover, Front Seat Leg, RH
71139R Clip, Front Seat Leg Cover, RH
71139Z Cover, Front Seat Leg, LH
71148T Cover, Front Seat Leg, Outer NO.1(FOR RH SEAT)
71148U Cover, Front Seat Leg, Outer NO.1(FOR LH SEAT)
71148V Cover, Front Seat Leg, Outer NO.2(FOR RH SEAT)
71148W Cover, Front Seat Leg, Outer NO.2(FOR LH SEAT)
71148X Cover, Front Seat Leg, Outer RH
71148Y Cover, Front Seat Leg, Outer LH
71148Z Clip, Front Seat Leg Cover, RH
71301E Link Sub-assy, Rear Seat Cushion, RH
71301F Link Sub-assy, Rear Seat Cushion, LH
71361D Bracket, Front Seat Set, NO.1 Front Outer(FOR RH SEAT)
71361E Bracket, Front Seat Set, NO.1 Front Outer(FOR LH SEAT)
71361F Bracket, Front Seat Set, NO.1 Rear Outer(FOR RH SEAT)
71361G Bracket, Front Seat Set, NO.1 Rear Outer(FOR LH SEAT)
71362A Bracket, Front Seat Set, NO.2 Rear Inner(FOR RH SEAT)
71362B Bracket, Front Seat Set, NO.2 Rear Inner(FOR LH SEAT)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71518B Pad, Front Seat Cushion W/Cover, RH
71528 Pad, Front Seat Cushion W/Cover, LH
71537C Protector, Front Seat Cushion Edge, RH
71537D Protector, Front Seat Cushion Edge, LH
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71558B Pad, Front Seatback W/Cover, RH
71568A Pad, Front Seatback W/Cover, LH
71587 Protector, Front Seatback Edge
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71731C Fastener, Seat Cover, RH
71731P Fastener, Seat Cover, RH
71731Q Fastener, Seat Cover, LH
71739C Cushion, Seat Support, RH NO.1
71739D Cushion, Seat Support, RH NO.2
71739E Cushion, Seat Support, RH NO.3
71739F Cushion, Seat Support, RH NO.4
71739G Cushion, Seat Support, RH NO.5
71739H Cushion, Seat Support, LH NO.1
71739J Cushion, Seat Support, LH NO.2
71739K Cushion, Seat Support, LH NO.3
71739L Cushion, Seat Support, LH NO.4
71739M Cushion, Seat Support, LH NO.5
71753 Tray, Front Seat Under
71759B Hook, Front Seatback
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
7181A Holder, Front Seat Cushion Wire Harness, RH
7181B Holder, Front Seat Cushion Wire Harness, LH
71831B Cover, Front Seat Hinge, RH
71832B Cover, Front Seat Hinge, LH
71848A Cap, Seat Adjuster Cover, RH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867V Shield, Front Seat Cushion, Front RH
71873 Shield, Front Seat Cushion, Lower RH
71873U Shield, Front Seat Cushion, Lower RH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A Headrest Assy, Front Seat
71930A Support Assy, Front Seat Headrest
71A48 Clip, Front Seat Leg Cover, LH
71A49C Cover, Front Seat Leg, Inner NO.1(FOR RH SEAT)
71A49D Cover, Front Seat Leg, Inner NO.1(FOR LH SEAT)
71A49E Cover, Front Seat Leg, Inner NO.2(FOR RH SEAT)
71A49F Cover, Front Seat Leg, Inner NO.2(FOR LH SEAT)
72010 Adjuster Assy, Front Seat, RH
72011F Hinge Sub-assy, Front Seat, RH
72011G Hinge Sub-assy, Front Seat, LH
72020 Adjuster Assy, Front Seat, LH
72094C Lock Sub-assy, Front Seat Turn, RH
72094D Lock Sub-assy, Front Seat Turn, LH
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72125U Cover, Seat Track, Upper Rear RH
72125V Cover, Seat Track, Upper Rear LH
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72136 Spacer, Seat Track, Lower NO.1
72137 Cover, Seat Track, Outer RH
72138 Cover, Seat Track, Outer LH
72139B Spring, Seat Track Memory
72157A Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72201A Handle Sub-assy, Seat Track RH
72201B Handle Sub-assy, Seat Track LH
72205A Housing Sub-assy, Power Seat, NO.1
72205E Housing Sub-assy, Power Seat, NO.1
72210N Cable Assy, Seat Track Control
72211C Handle, Seat Track Adjusting
72219 Cover, Adjuster Spring Hook
72241A Lever, Seat Track Lock
72250G Lock Assy, Front Seat, RH
72250H Lock Assy, Front Seat, LH
72265 Cover, Seat Track Upper Rail, RH
72265E Cover, Seat Track Upper Rail, RH
72266 Cover, Seat Track Upper Rail, LH
72301 Wire Sub-assy, Seat Track Equalizing
72301A Wire Sub-assy, Seat Track Equalizing, RH
72303A Lever Sub-assy, Seat Track Lock, RH
72402 Housing Sub-assy, Cable Side
72404B Link Sub-assy, Front Seat Adjuster, RH NO.1
72404C Link Sub-assy, Front Seat Adjuster, LH NO.1
72404D Link Sub-assy, Front Seat Adjuster, RH NO.2
72404E Link Sub-assy, Front Seat Adjuster, LH NO.2
72405 Housing Sub-assy, Front Seat Vertical
72429 Plate, Front Seat Adjuster, RH
72475B Screw, Front Seat Horizontal Jack, Outer
72478B Bush, Vertical Adjuster, RH
72478C Bush, Vertical Adjuster, LH
72494 Handle, Vertical Adjusting, RH
72498 Cover, Vertical Adjuster Bracket
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72551 Cover, Reclining Hinge, NO.1
72553B Protector, Reclining Cover, RH
72713 Bracket, Seat Adjuster Shield Clamp, RH
72925 Cover, Front Seat Cushion
72939 Hook, Seat Turn Lock, RH
72939A Hook, Seat Turn Lock, LH
73162B Bracket, Belt Anchor Bar, Rear RH
73162C Bracket, Belt Anchor Bar, Rear LH
73508A Rail Sub-assy, Front Seat Under Tray, NO.2
73847A Cushion, Seat Suspension Stopper, RH
73847B Cushion, Seat Suspension Stopper, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
74611H Grip, Assist
74617D Plug, Assist Grip
74656N Cover, Hand Rail Bar, RH
74656P Cover, Hand Rail Bar, LH
74820G Protector Assy, Front LH
74865F Cover, Center Protector, RH
74865G Cover, Center Protector, LH
76681A Cover, Outside Moulding End, NO.1 RH
76681B Cover, Outside Moulding End, NO.1 LH
79408D Hook Sub-assy, NO.4 Seat, Inner RH
79408E Hook Sub-assy, NO.4 Seat, Outer RH
79408F Hook Sub-assy, NO.4 Seat, Inner LH
79408G Hook Sub-assy, NO.4 Seat, Outer LH
79977A Felt, Seatback
79977G Felt, Front Seatback, RH
79977H Felt, Front Seatback, LH
82667D Holder, Connector
82711F Clamp, Wiring Harness
82H17 Protector, Wiring Harness, RH
82H17A Protector, Wiring Harness, LH
84921E Knob, Power Seat Switch
84921F Knob, Power Seat Switch
84921G Knob, Power Seat Switch
85820Y Motor Assy, Power Seat
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
C7015B Panel Sub-assy, Turn Table, RH
C7015C Panel Sub-assy, Turn Table, LH
C7027D Lock Sub-assy, Welcab Seat Turn, RH
C7027E Lock Sub-assy, Welcab Seat Turn, LH
C7031 Swivel Sub-assy, Front Seat, RH
C7032 Swivel Sub-assy, Front Seat, LH
C7106 Roller Sub-assy, Slide Table, RH
C7106A Roller Sub-assy, Slide Table, LH
C7160D Panel Assy, Slide Table, RH
C7160E Panel Assy, Slide Table, LH
C7207 Bracket Sub-assy, Interlock, Lower RH NO.1
C7207A Bracket Sub-assy, Interlock, Lower LH NO.1
C7265 Handle, Seat Turn Lock, RH
C7265A Handle, Seat Turn Lock, LH
C7269E Cable, Seat Turn Lock Release, RH NO.1
C7269F Cable, Seat Turn Lock Release, LH NO.1
C7269G Cable, Seat Turn Lock Release, RH NO.2
C7269H Cable, Seat Turn Lock Release, LH NO.2
C7985C Guard, Rear Seat Turn, RH
C7985D Guard, Rear Seat Turn, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
