Toyota Aqua
2021-06 → present · chassis MXPK1# · catalogue 125120 · Japan
Supported model
Data version 2022-12

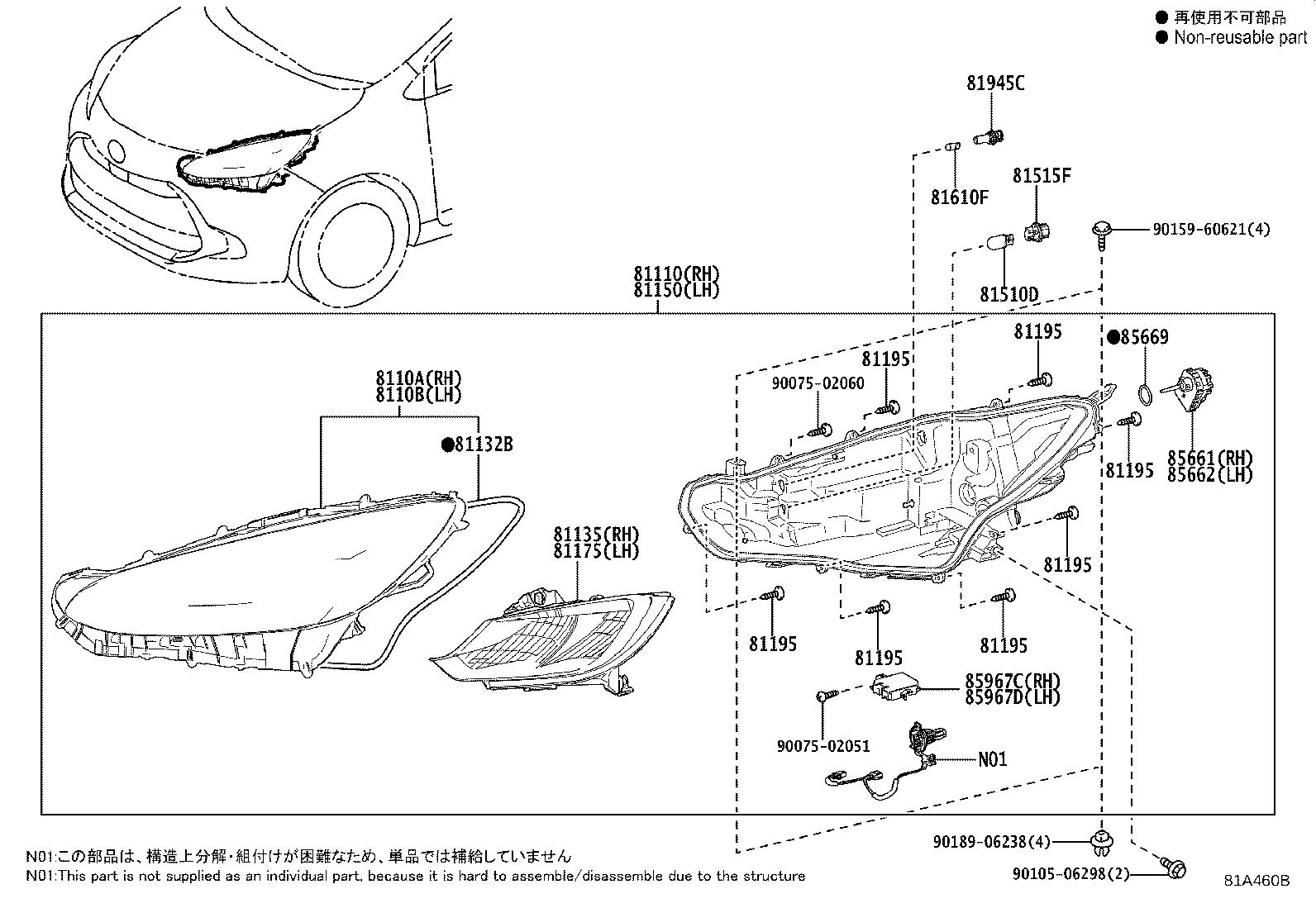

Headlamp
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 8110A | Lens Sub-assy, Headlamp, RH |
| 8110B | Lens Sub-assy, Headlamp, LH |
| 81110 | Headlamp Assy, RH |
| 81132B | Gasket, Headlamp Lens |
| 81135 | Unit Assy, Headlamp, RH |
| 81144 | Cover, Headlamp, NO.1 |
| 81150 | Headlamp Assy, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81195 | Screw, Headlamp |
| 81510D | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515F | Socket Plug Assy |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81945C | Socket, Bulb |
| 85661 | Motor, Headlamp Leveling, RH |
| 85662 | Motor, Headlamp Leveling, LH |
| 85669 | Packing, Headlamp Leveling Motor Base |
| 85967C | Computer, Light Control Led, RH |
| 85967D | Computer, Light Control Led, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
