Toyota Aqua

2021-06 → present · chassis MXPK1# · catalogue 125120 · Japan

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

10 part groups · 2 illustrations

Illustrations

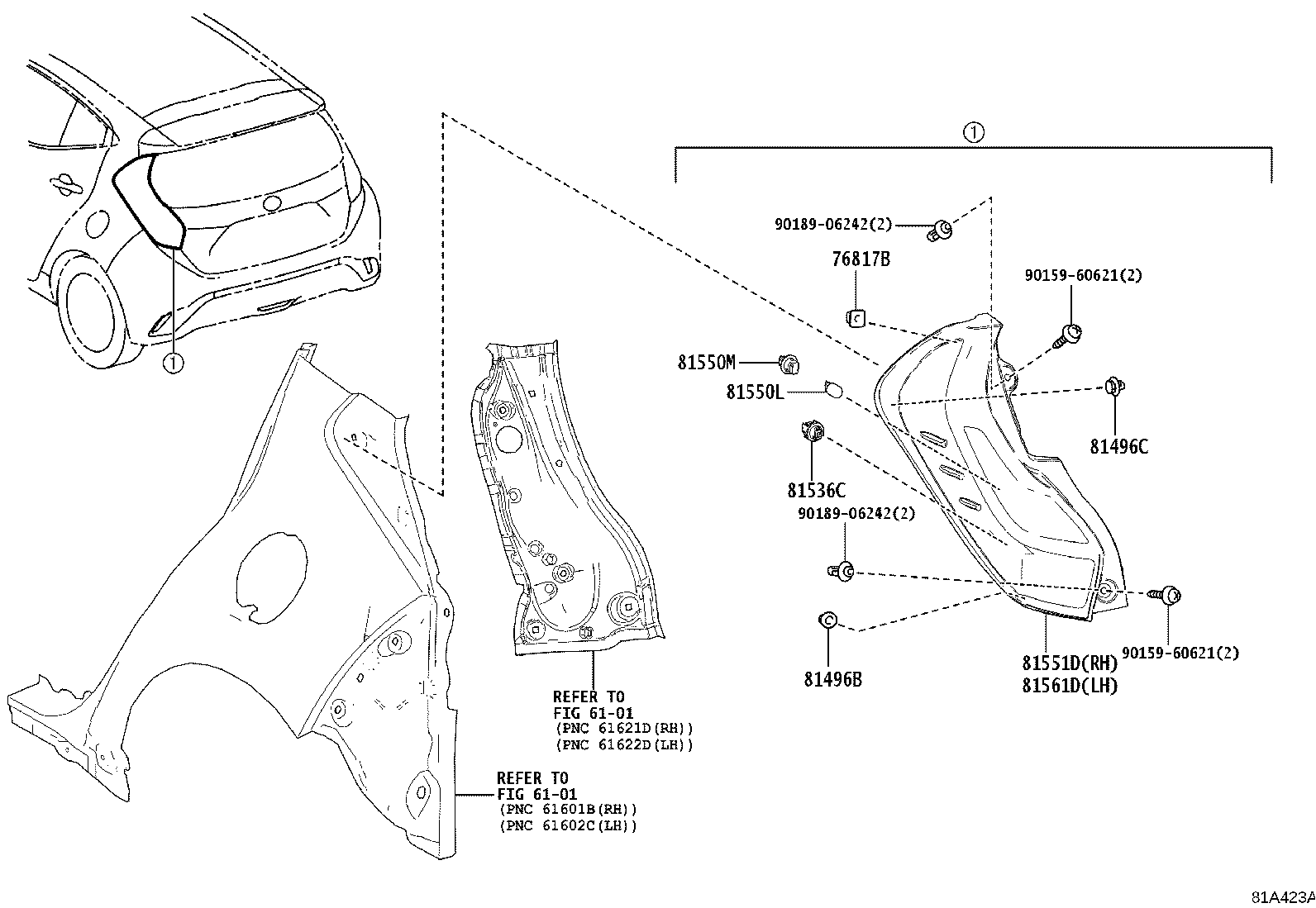

Figure 81A422A 81A422A 2021-06 → — Figure 81A423A 81A423A 2021-06 → —

Part groups

PNCDescription
76817B Clip, Rear Lamp
81496B Guide, Rear Lamp
81496C Guide, Rear Combination Lamp, NO.2
81536C Led, Tail & Stop Lamp
81536D Led, Taillamp
81536E Led, Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550M Socket, Rear Turn Signal Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81561D Lens & Body, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
