Toyota Aqua
2021-06 → present · chassis MXPK1# · catalogue 125120 · Japan
Supported model
Data version 2022-12
Abs & Vsc

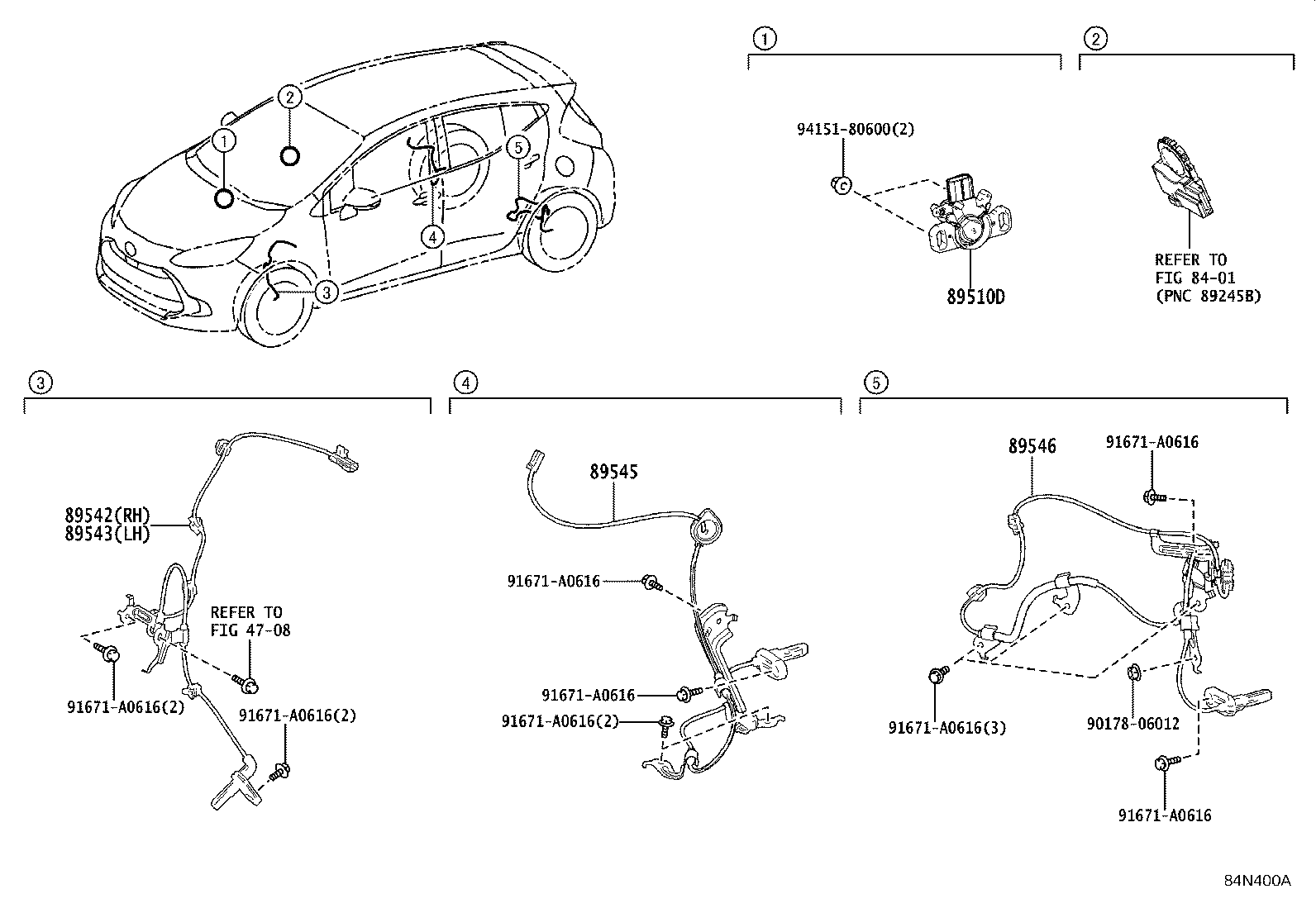

7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89510D | Sensor Assy, Brake Pedal Stroke |
| 89516C | Wire, Skid Control Sensor, RH |
| 89516D | Wire, Skid Control Sensor, LH |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
