Toyota Aqua

2021-06 → present · chassis MXPK1# · catalogue 125120 · Japan

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

14 part groups · 3 illustrations

Illustrations

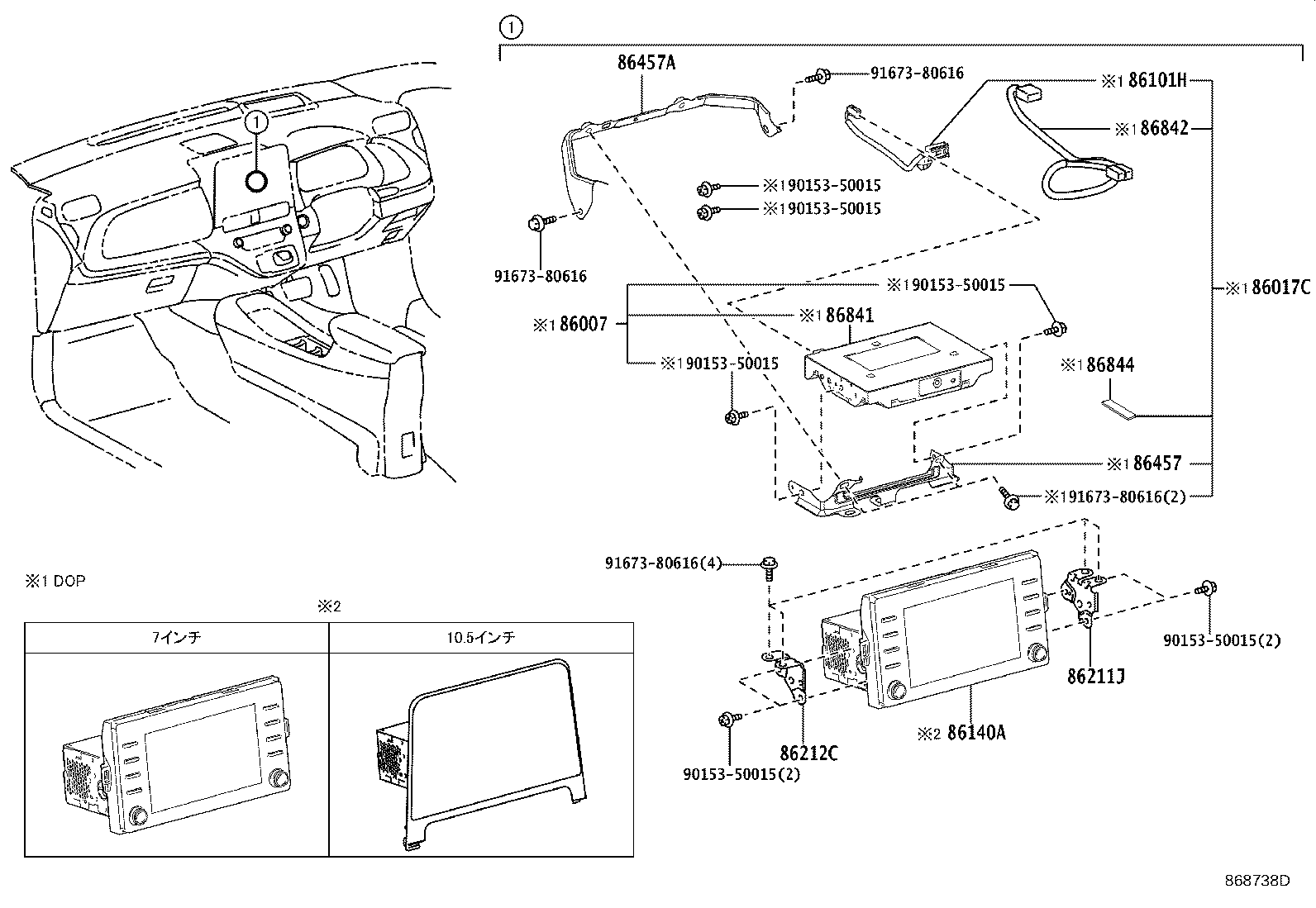

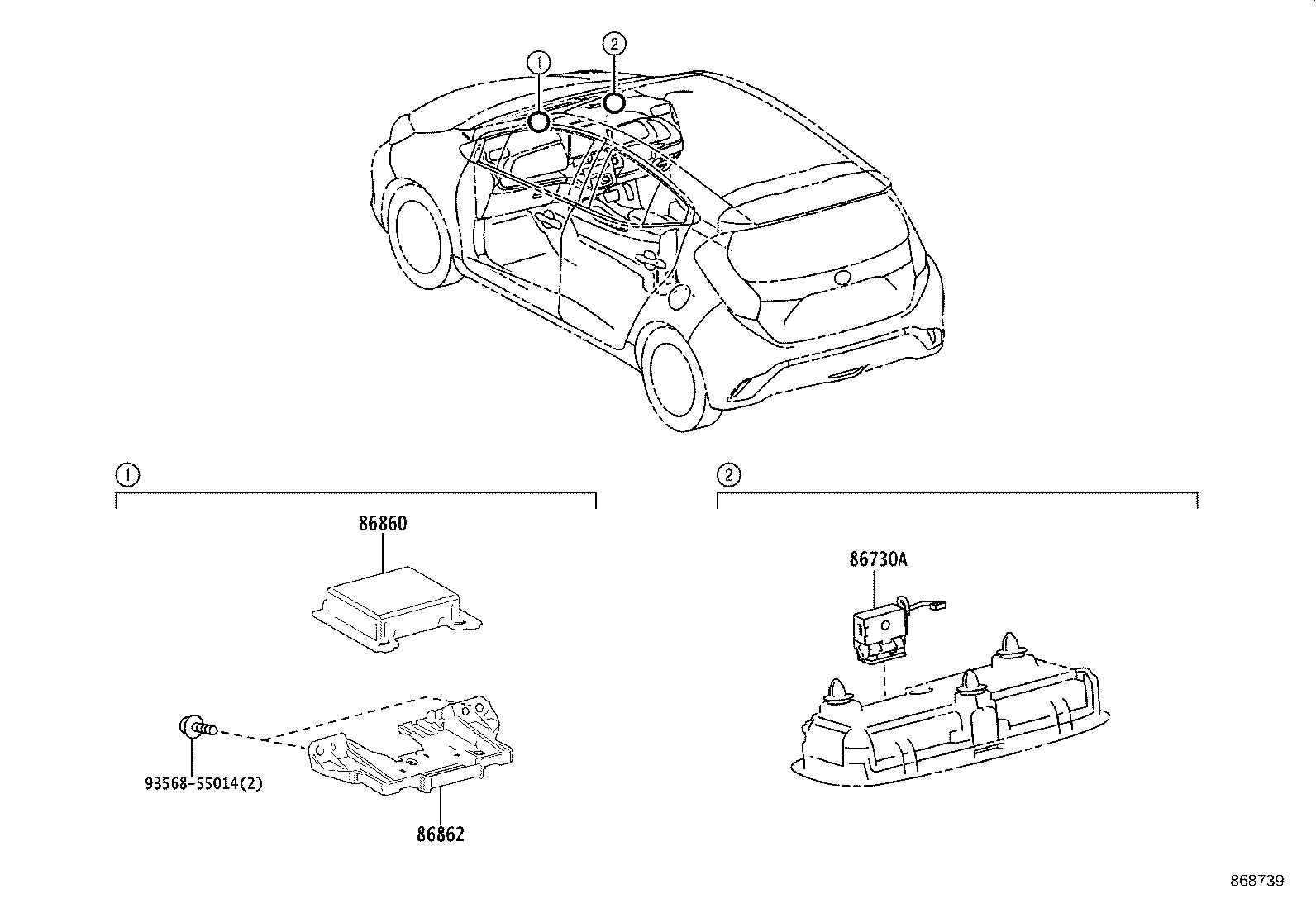

Figure 868737B 868737B 2021-06 → — Figure 868738D 868738D 2021-06 → — Figure 868739 868739 2021-06 → —

Part groups

PNCDescription
86007 Computer Set, Navigation
86017C Fitting Set, Navigation Setting
86101H Cord Sub-assy, Antenna
86140A Receiver Assy, Radio & Display
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86457 Bracket, Multi-media Module NO.1
86457A Bracket, Multi-media Module NO.2
86730A Microphone Assy, Telephone
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86844 Retainer, Navigation Computer Cover
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
