Toyota Aqua

2021-06 → present · chassis MXPK1# · catalogue 125120 · Japan

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

11 part groups · 2 illustrations

Illustrations

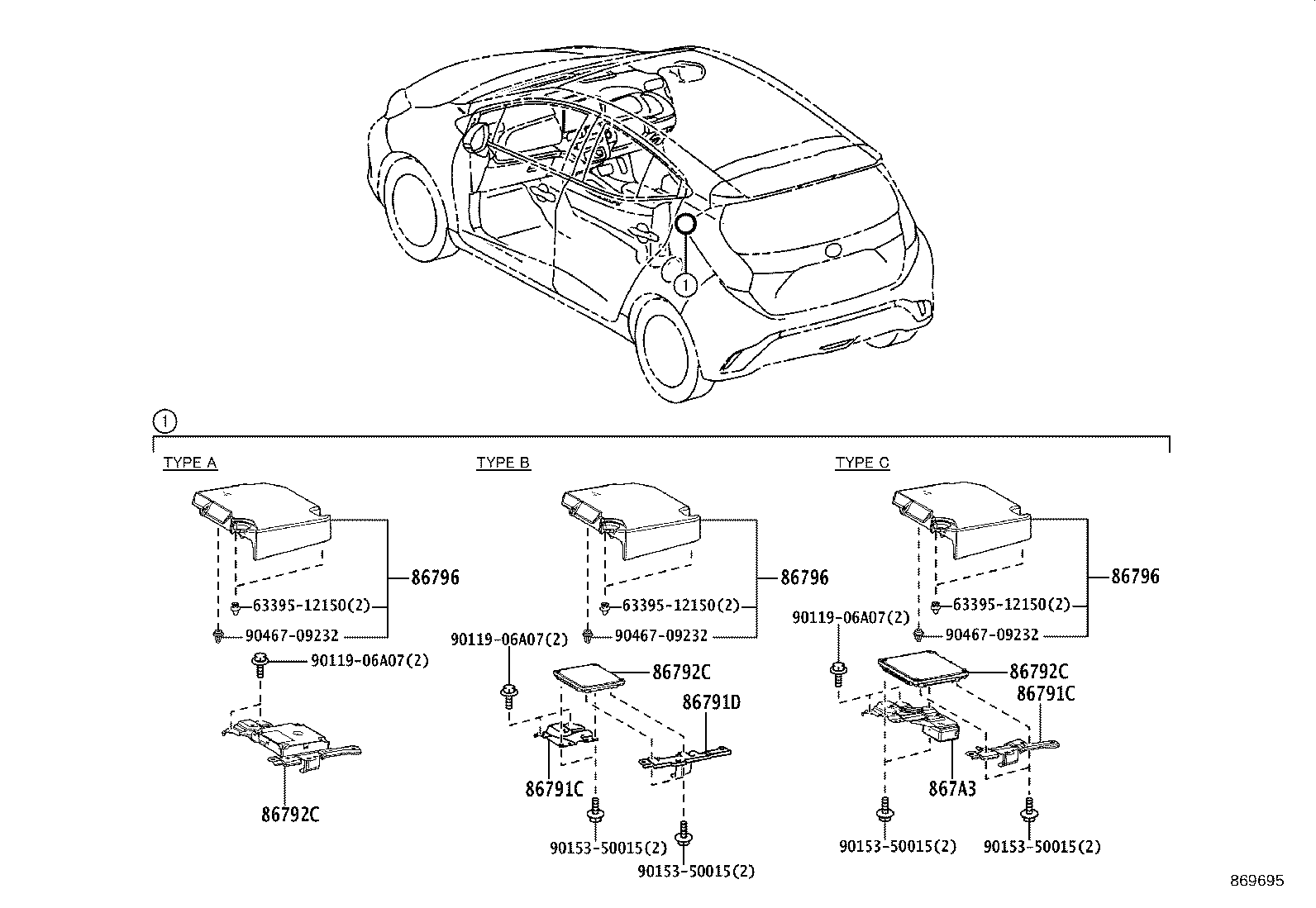

Figure 868785F 868785F 2021-06 → — Figure 869695 869695 2021-06 → —

Part groups

PNCDescription
86790B Camera Assy, Television, FR
86790D Camera Assy, Television, RR
86790E Camera Assy, Television, Side RH
86790F Camera Assy, Television, Side LH
86791C Bracket, Computer Parking Assist, NO.1
86791D Bracket, Computer Parking Assist, NO.2
86792C Computer, Parking Assist
86796 Cover, Computer Parking Assist
867A3 Circuit, Light Parking Assist
867M0 Camera Assy, Drive Recorder, Front
867M0A Camera Assy, Drive Recorder, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
