Toyota Aqua
2021-06 → present · chassis MXPK1# · catalogue 125120 · Japan
Supported model
Data version 2022-12
Heating & Air Conditioning - Control & Air Duct
23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

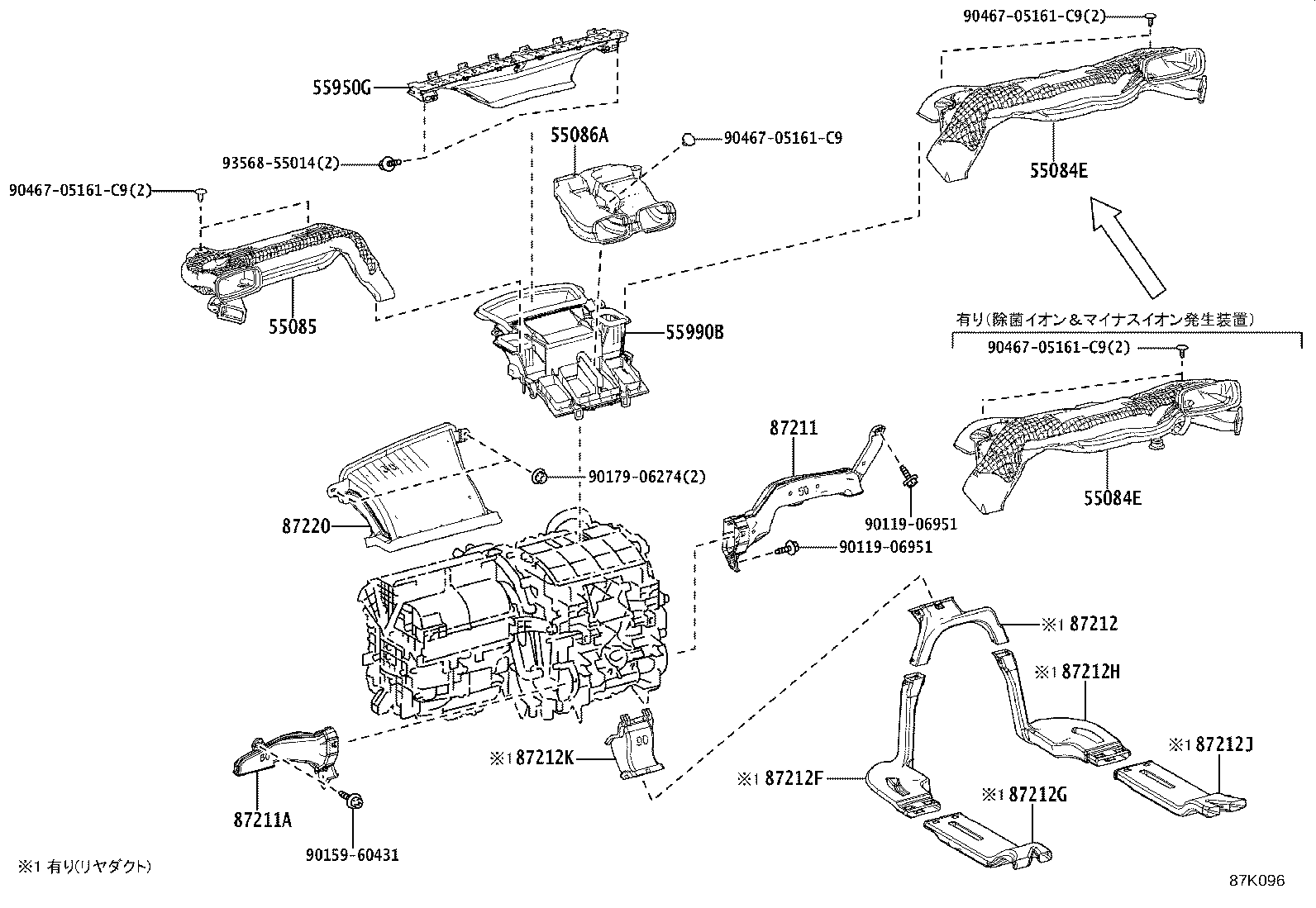

| 55084E | Duct Sub-assy, Heater TO Register, NO.1 |
| 55085 | Duct Sub-assy, Heater TO Register, NO.2 |
| 55086A | Duct Sub-assy, Heater TO Register, Center |

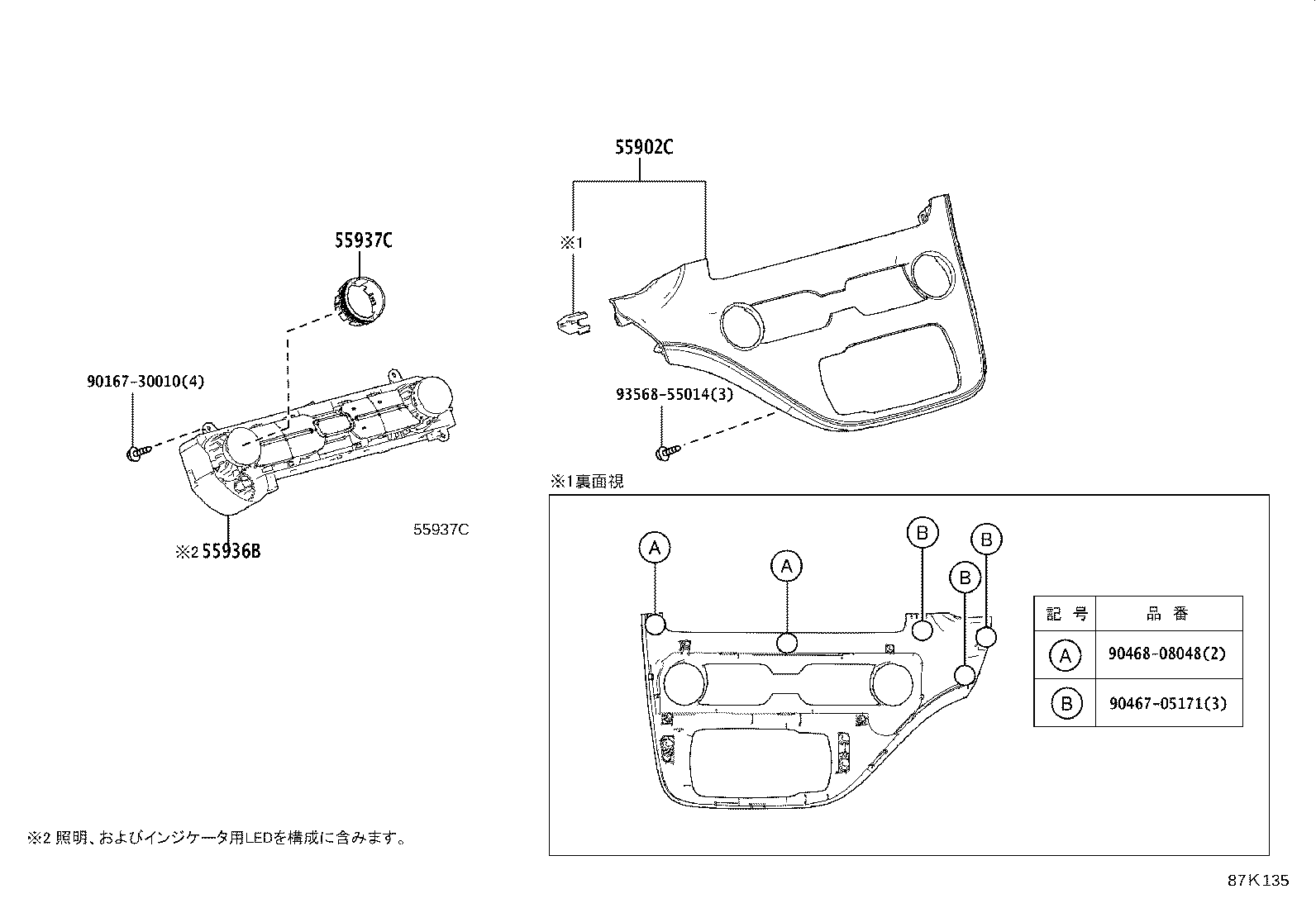

| 55902C | Panel Sub-assy, Air Conditioner |
| 55902D | Panel Sub-assy, Air Conditioner |
| 55904A | Housing Sub-assy, Heater Control |
| 55936B | Switch, Center Cluster Module |
| 55937C | Knob, Center Cluster Module |
| 55942 | Guard, Heater Control |
| 55950G | Nozzle Assy, Defroster |
| 55990B | Nozzle Assy, Defroster, Lower |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87212 | Duct, Air, Rear NO.1 |
| 87212F | Duct, Air, Rear NO.2 |
| 87212G | Duct, Air, Rear NO.3 |
| 87212H | Duct, Air, Rear NO.4 |
| 87212J | Duct, Air, Rear NO.5 |
| 87212K | Duct, Air, Rear NO.6 |
| 87220 | Duct Assy, Air |

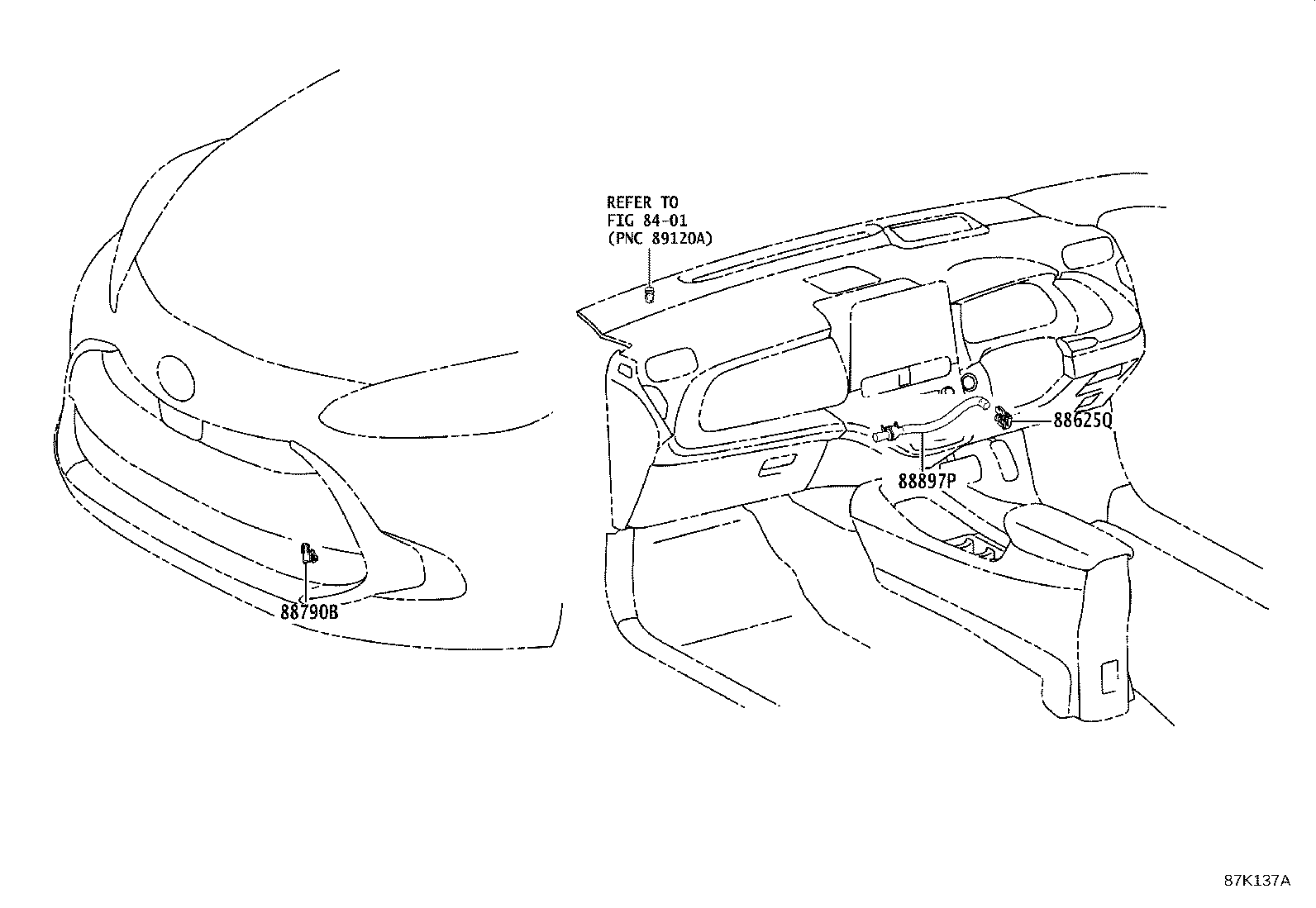

| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88790B | Thermistor Assy |
| 88897P | Aspirator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
