Toyota Corsa/Tercel

1982-05 → 1989-10 · chassis AL2# · catalogue 131120 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

9 part groups · 4 illustrations

Illustrations

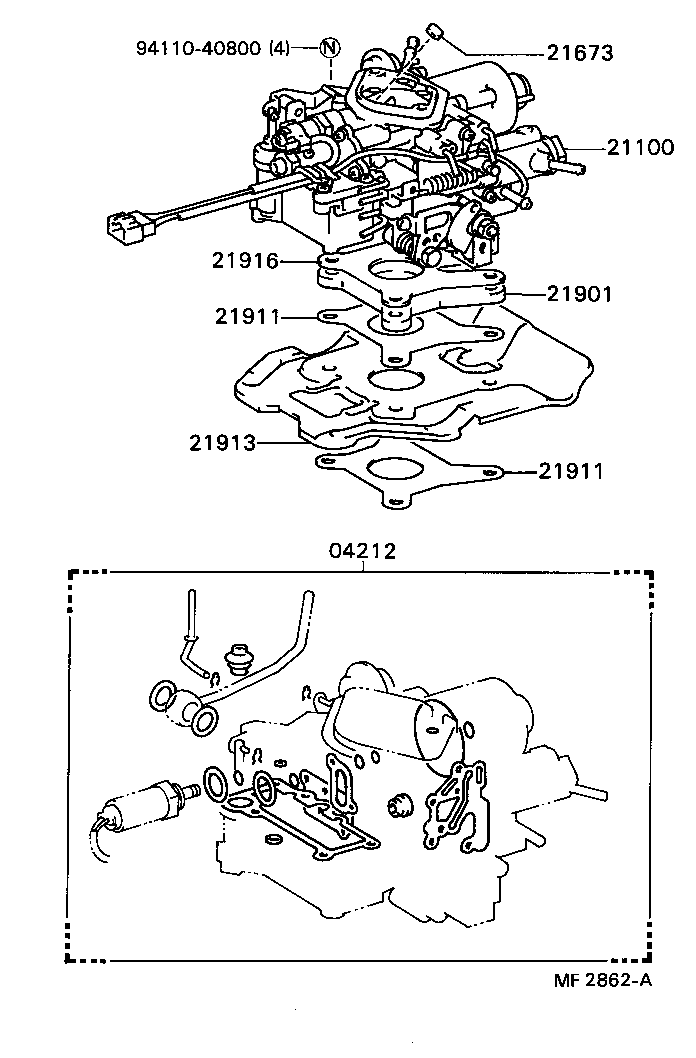

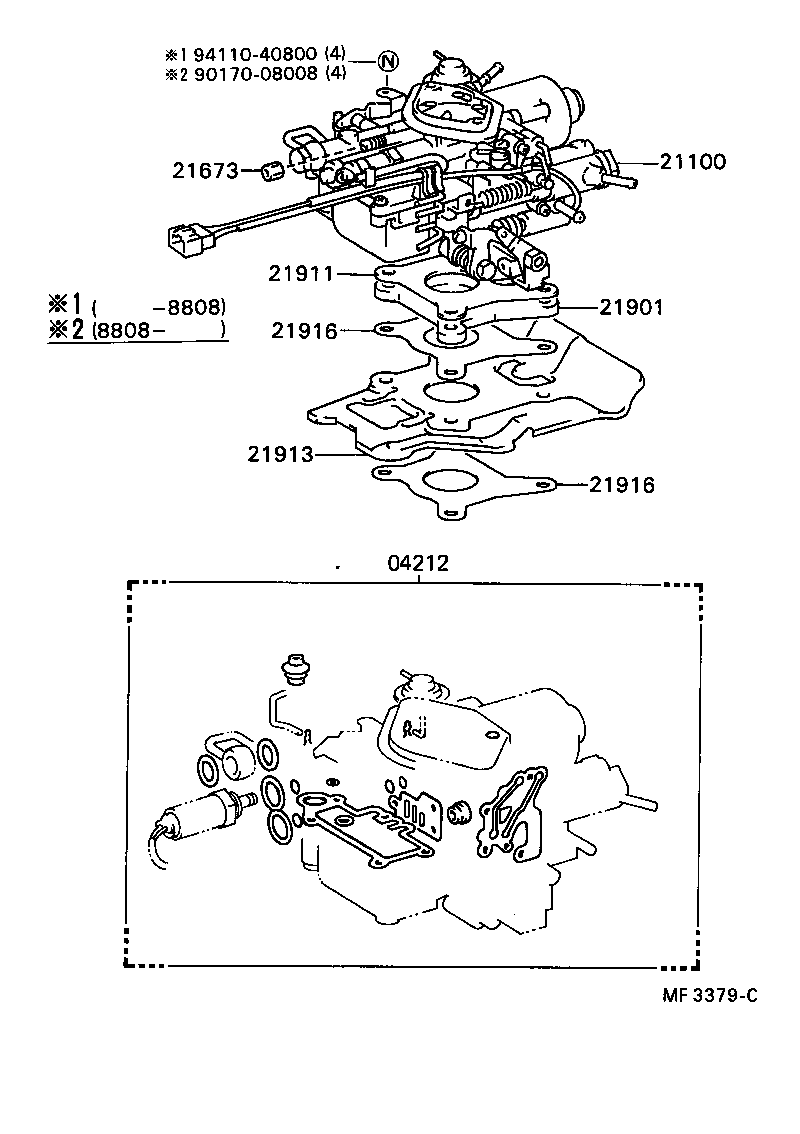

Figure MF2216B MF2216B 1982-05 → 1984-08 Figure MF3379C MF3379C 1984-08 → — Figure MF2862A MF2862A 1982-05 → 1984-08 Figure MF3380C MF3380C 1984-08 → —

Part groups

PNCDescription
04211 Carburetor Kit
04212 Gasket Kit, Carburetor
21100 Carburetor Assy
21673 Cap, Idle Limit
21901 Insulator Sub-assy, Carburetor Heat, NO.1
21911 Gasket, Carburetor
21912 Insulator, Carburetor Heat
21913 Insulator, Carburetor Heat, NO.2
21916 Gasket, Carburetor, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
