Toyota Corsa/Tercel

1982-05 → 1989-10 · chassis AL2# · catalogue 131120 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

26 part groups · 3 illustrations

Illustrations

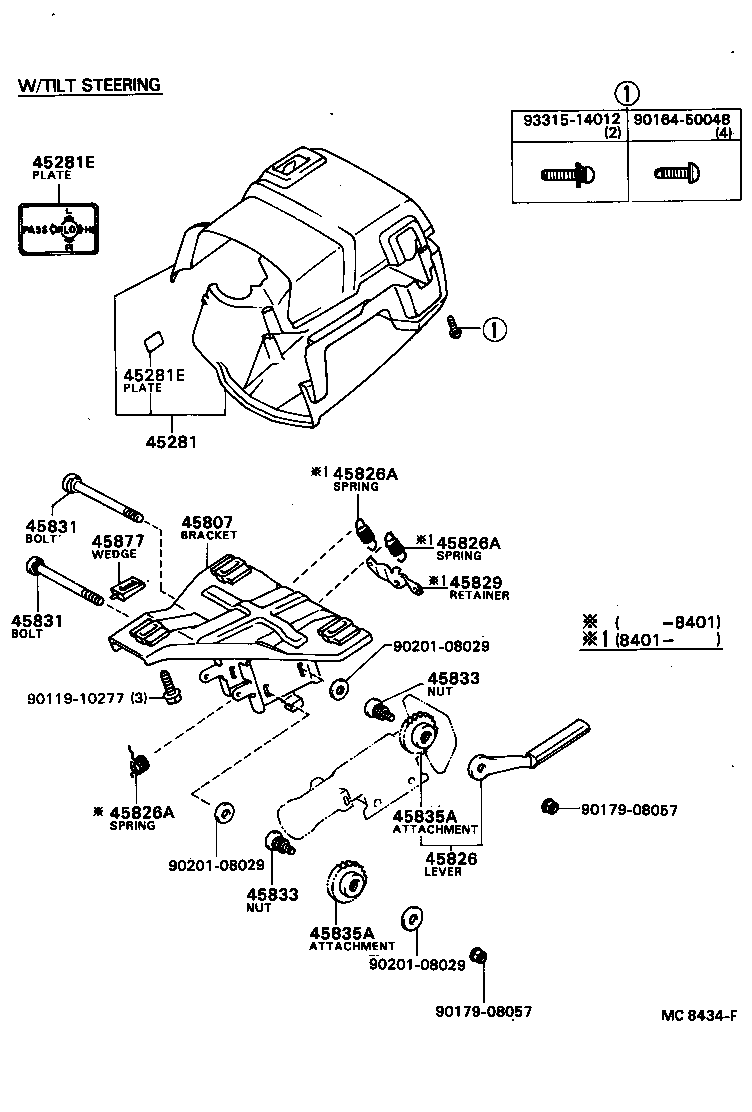

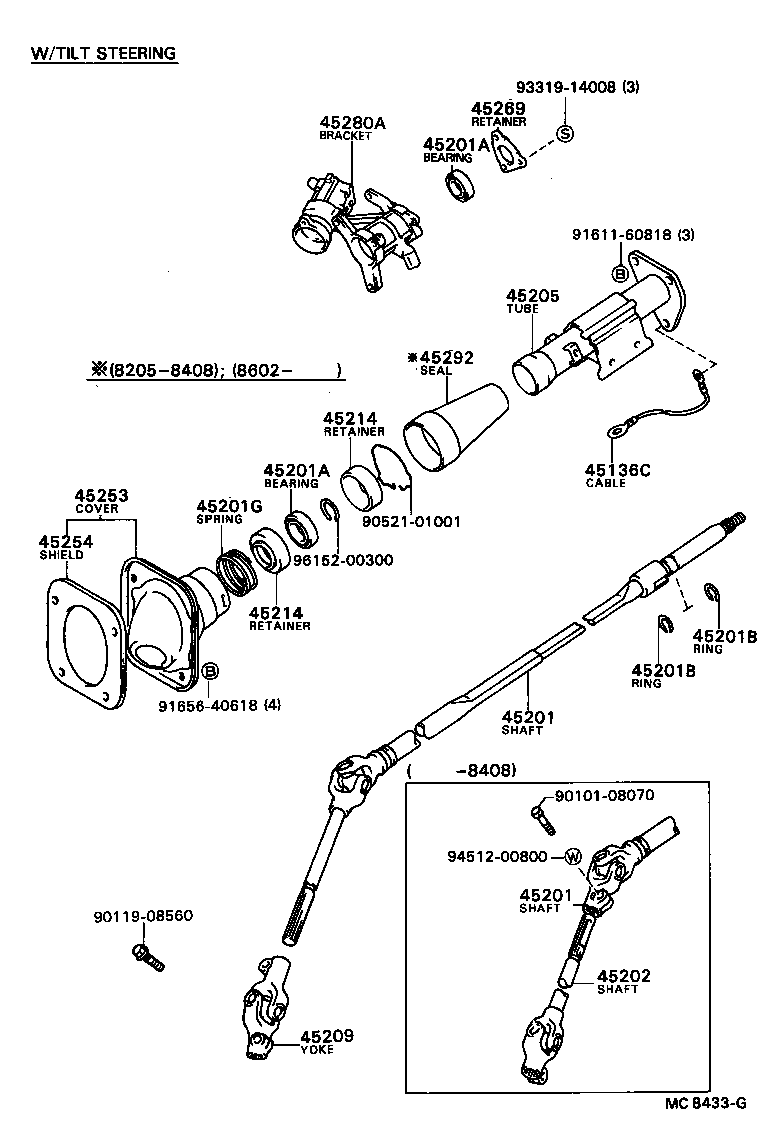

Figure MC8432J MC8432J 1982-05 → — Figure MC8434F MC8434F 1982-05 → — Figure MC8433G MC8433G 1982-05 → —

Part groups

PNCDescription
45136C Cable, Bond(FOR HORN EARTH)
45201 Shaft Sub-assy, Steering Main
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201G Spring, Compression(FOR STEERING MAIN SHAFT)
45202 Shaft Sub-assy, Steering Intermediate
45205 Tube Sub-assy, Steering Column
45209 Yoke Sub-assy, Steering Sliding
45214 Retainer, Main Shaft Spring
45253 Cover, Steering Column Hole
45254 Shield, Steering Column Hole
45269 Retainer, Main Shaft Bearing
45280A Bracket Assy, Steering Column, Upper
45281 Housing, Steering Column
45281E Plate, Safety Caution
45292 Seal, Main Shaft Lower Dust
45524A Nut(FOR STEERING RACK GUIDE SPRING CAP)
45807 Bracket Sub-assy, Steering Column Upper Support
45826 Lever, Steering Tilt
45826A Spring, Tension(FOR STEERING TILT LEVER)
45829 Retainer, Tilt Steering Return Spring
45831 Bolt, Tilt Lever Lock, NO.1
45833 Nut, Tilt Steering Adjusting, NO.1
45835A Attachment, Tilt Lever Serration
45877 Wedge, Caster(FOR STEERING COLUMN TUBE SETTING)
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
