Toyota Corsa/Tercel

1982-05 → 1989-10 · chassis AL2# · catalogue 131120 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

9 part groups · 3 illustrations

Illustrations

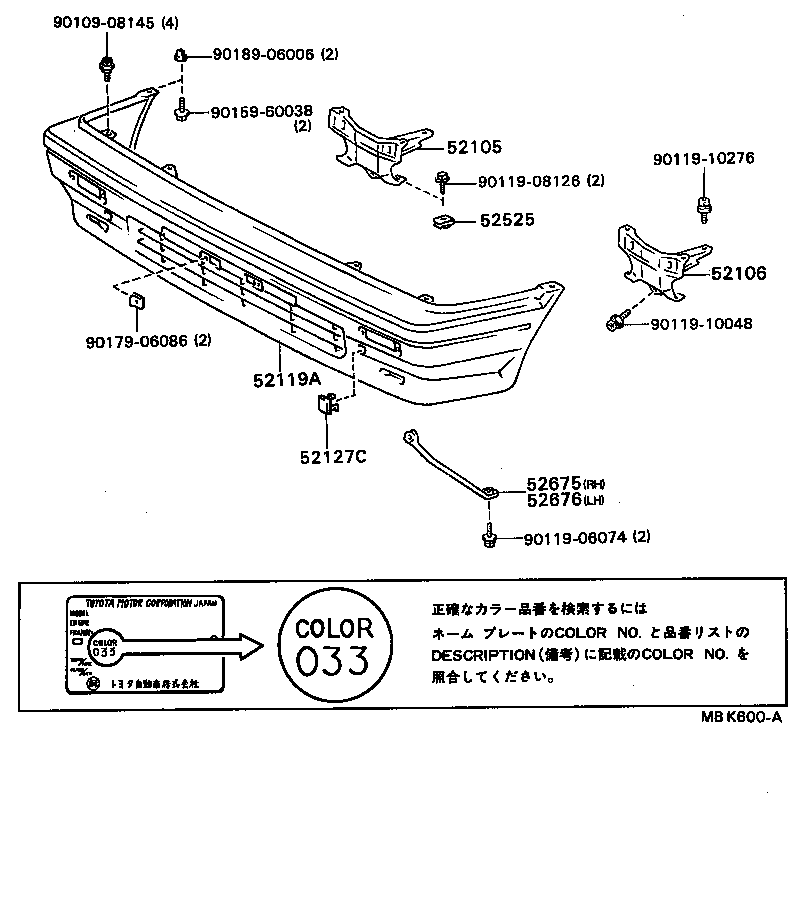

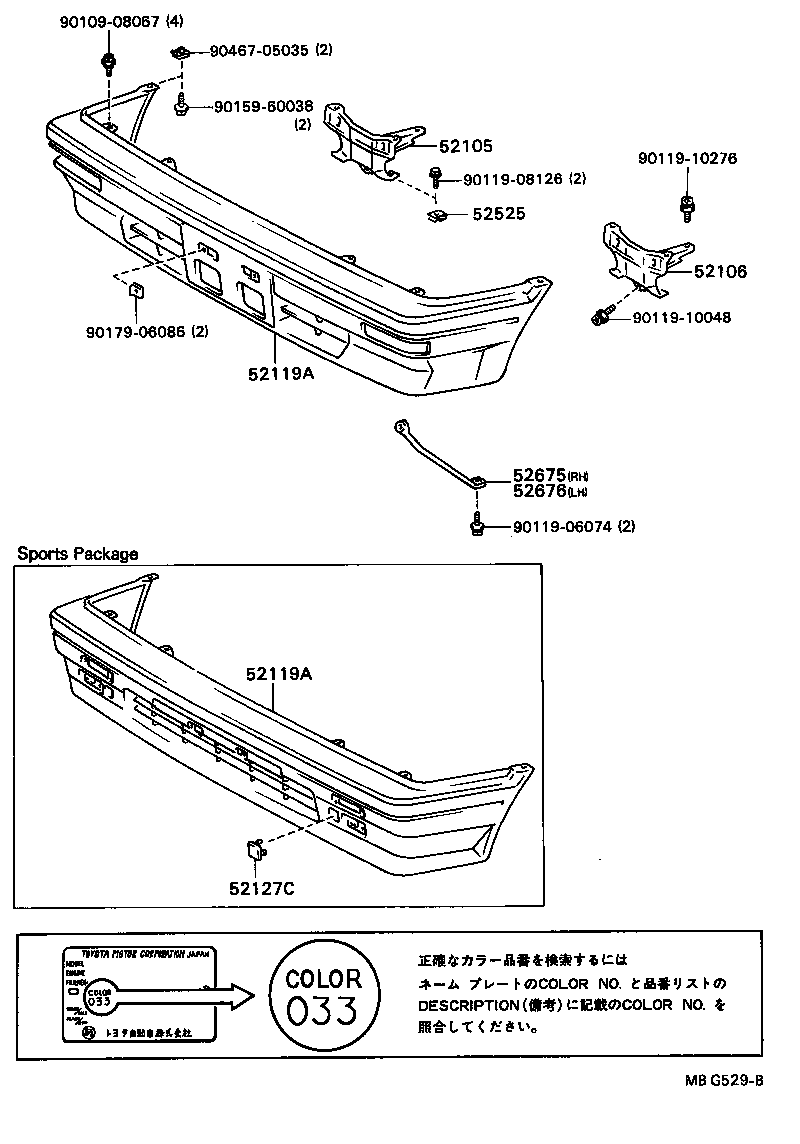

Figure MBD615C MBD615C 1982-05 → 1984-08 Figure MBG529B MBG529B 1984-08 → 1986-05 Figure MBK600A MBK600A 1986-05 → —

Part groups

PNCDescription
52105 Stay Sub-assy, Front Bumper, RH
52106 Stay Sub-assy, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52525 Retainer, Front Bumper, Lower Center
52675 Support, Front Bumper Lower Side, RH
52676 Support, Front Bumper Lower Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
