Toyota Corsa/Tercel

1982-05 → 1989-10 · chassis AL2# · catalogue 131120 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

14 part groups · 2 illustrations

Illustrations

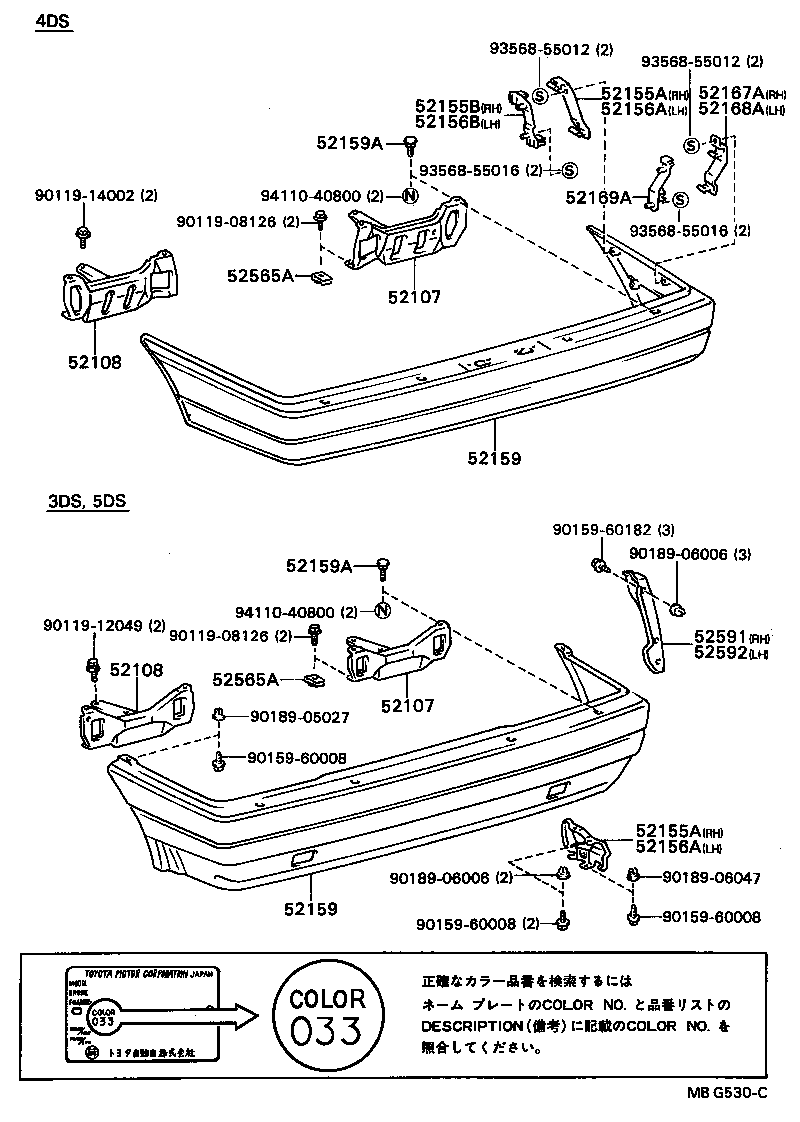

Figure MBD617C MBD617C 1982-05 → 1984-08 Figure MBG530C MBG530C 1984-08 → —

Part groups

PNCDescription
52107 Stay Sub-assy, Rear Bumper, RH
52108 Stay Sub-assy, Rear Bumper, LH
52155A Support, Rear Bumper Side, RH
52155B Support, Rear Bumper Side, NO.2 RH
52156A Support, Rear Bumper Side, LH
52156B Support, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52159A Bolt(FOR REAR BUMPER COVER)
52167A Support, Rear Bumper Side, NO.4 RH
52168A Support, Rear Bumper Side, NO.4 LH
52169A Support, Rear Bumper Side, NO.3
52565A Retainer, Rear Bumper, Lower
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
