Toyota Corsa/Tercel

1982-05 → 1989-10 · chassis AL2# · catalogue 131120 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

19 part groups · 6 illustrations

Illustrations

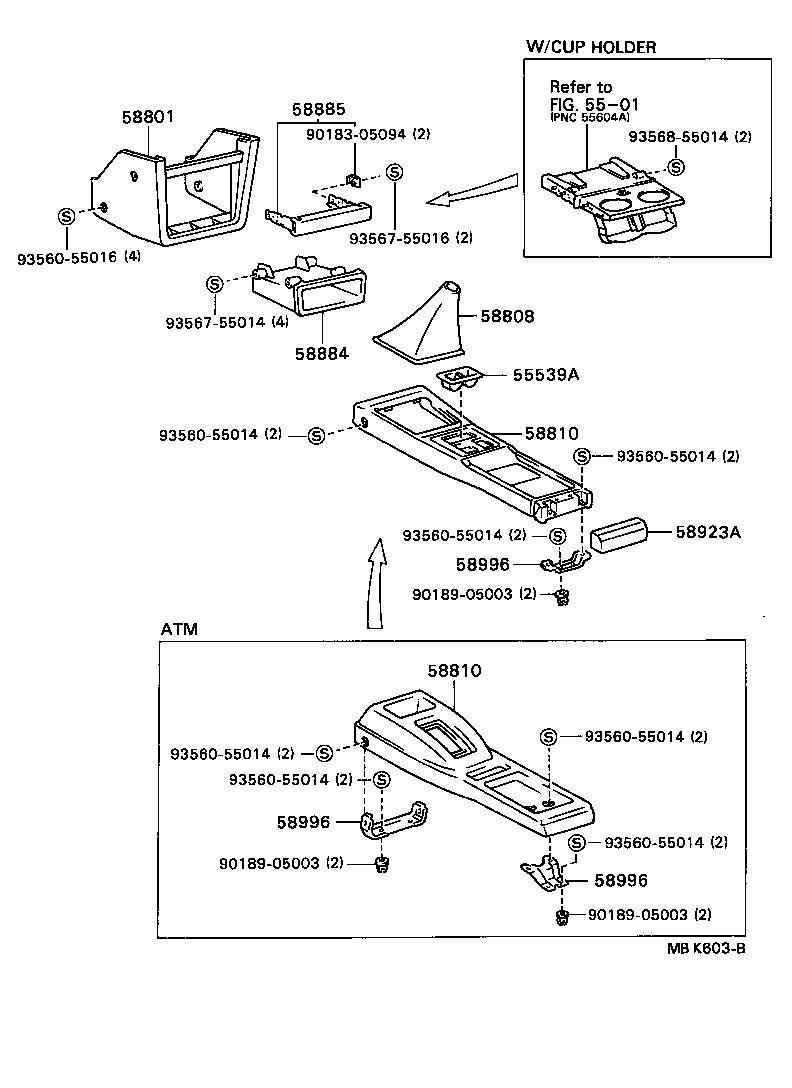

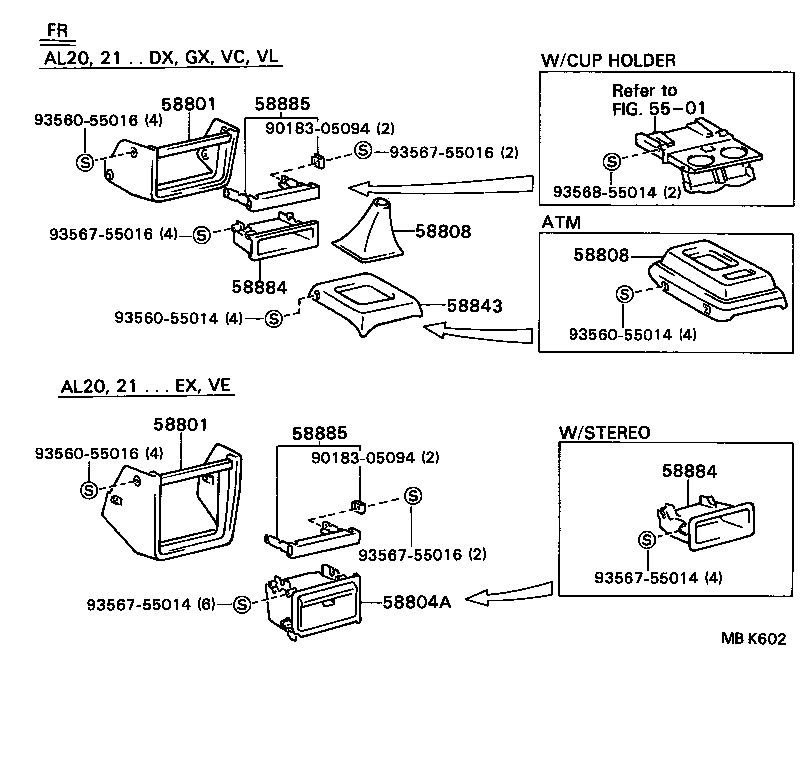

Figure MBD642D MBD642D 1982-05 → 1986-05 Figure MBK602 MBK602 1986-05 → — Figure MBK603B MBK603B 1986-05 → — Figure MBK604A MBK604A 1986-05 → — Figure MBD643D MBD643D 1982-05 → 1986-05 Figure MBD643D MBD643D 1986-05 → —

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
58801 Console Sub-assy, Upper
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58827B Spacer, Console Compartment Door Stopper
58843 Bezel, Shifting Hole
58884 Cover, Stereo Opening
58885 Cover, Console Box Opening
58904A Stopper Sub-assy, Console Compartment Door
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58919B Plate, Console Box
58923A Panel, Console Rear End
58940 Console Assy, Rear
58969A Retainer, Console Compartment Door Stopper
58996 Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
