Toyota Corsa/Tercel

1982-05 → 1989-10 · chassis AL2# · catalogue 131120 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board & Door Opening Trim Moulding

32 part groups · 3 illustrations

Illustrations

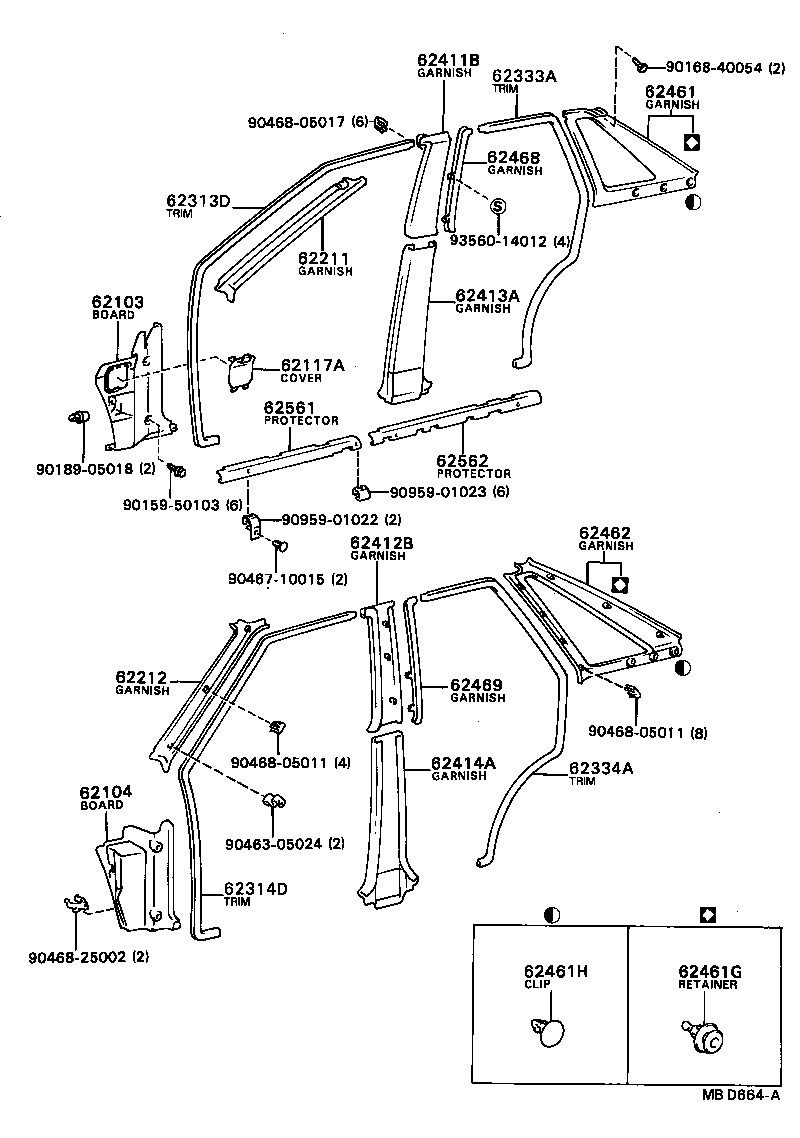

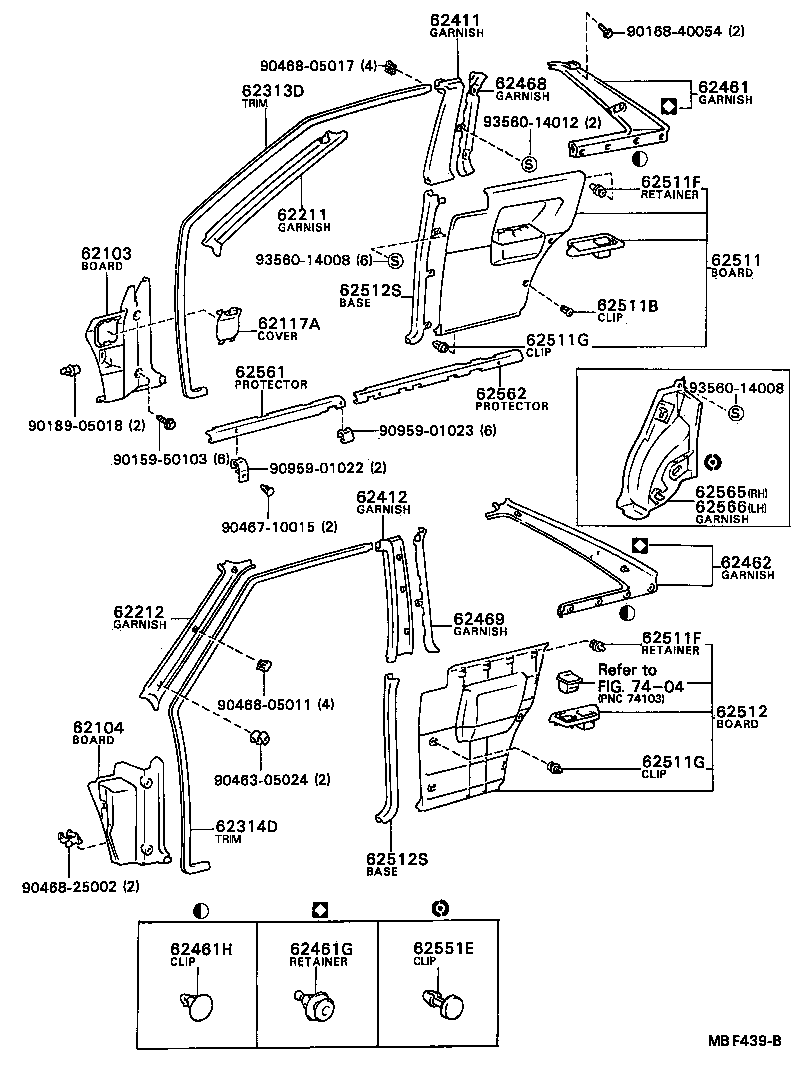

Figure MBD663D MBD663D 1982-05 → — Figure MBD664A MBD664A 1982-05 → 1986-05 Figure MBF439B MBF439B 1983-08 → 1986-05

Part groups

PNCDescription
62103 Board Sub-assy, Cowl Side Trim, RH
62104 Board Sub-assy, Cowl Side Trim, LH
62117A Cover, Cowl Side Trim Service Hole
62211 Garnish, Front Pillar, RH
62212 Garnish, Front Pillar, LH
62313D Trim, Front Door Opening, RH
62314D Trim, Front Door Opening, LH
62333A Trim, Rear Door Opening, RH
62334A Trim, Rear Door Opening, LH
62411 Garnish, Center Pillar, RH
62411B Garnish, Center Pillar, Upper RH
62412 Garnish, Center Pillar, LH
62412B Garnish, Center Pillar, Upper LH
62413A Garnish, Center Pillar, Lower RH
62414A Garnish, Center Pillar, Lower LH
62461 Garnish, Roof Side Trim, RH
62461G Retainer, Door Trim
62461H Clip (FOR ROOF SIDE INNER GARNISH)
62462 Garnish, Roof Side Trim, LH
62468 Garnish, Center Pillar, Rear RH
62469 Garnish, Center Pillar, Rear LH
62511 Board, Quarter Inside Trim, RH
62511B Clip (FOR QUARTER INSIDE TRIM BOARD)
62511F Retainer (FOR QUARTER INSIDE TRIM BOARD)
62511G Clip (FOR QUARTER INSIDE TRIM BOARD)
62512 Board, Quarter Inside Trim, LH
62512S Base, Quarter Trim, Front
62551E Clip(FOR REAR SEAT SIDE GARNISH)
62561 Protector, Rocker Panel, Inner Front
62562 Protector, Rocker Panel, Inner Rear
62565 Garnish, Rear Seat Side, RH
62566 Garnish, Rear Seat Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
