Toyota Corsa/Tercel

1982-05 → 1989-10 · chassis AL2# · catalogue 131120 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Package Tray Panel & Luggage Compartment Mat

19 part groups · 2 illustrations

Illustrations

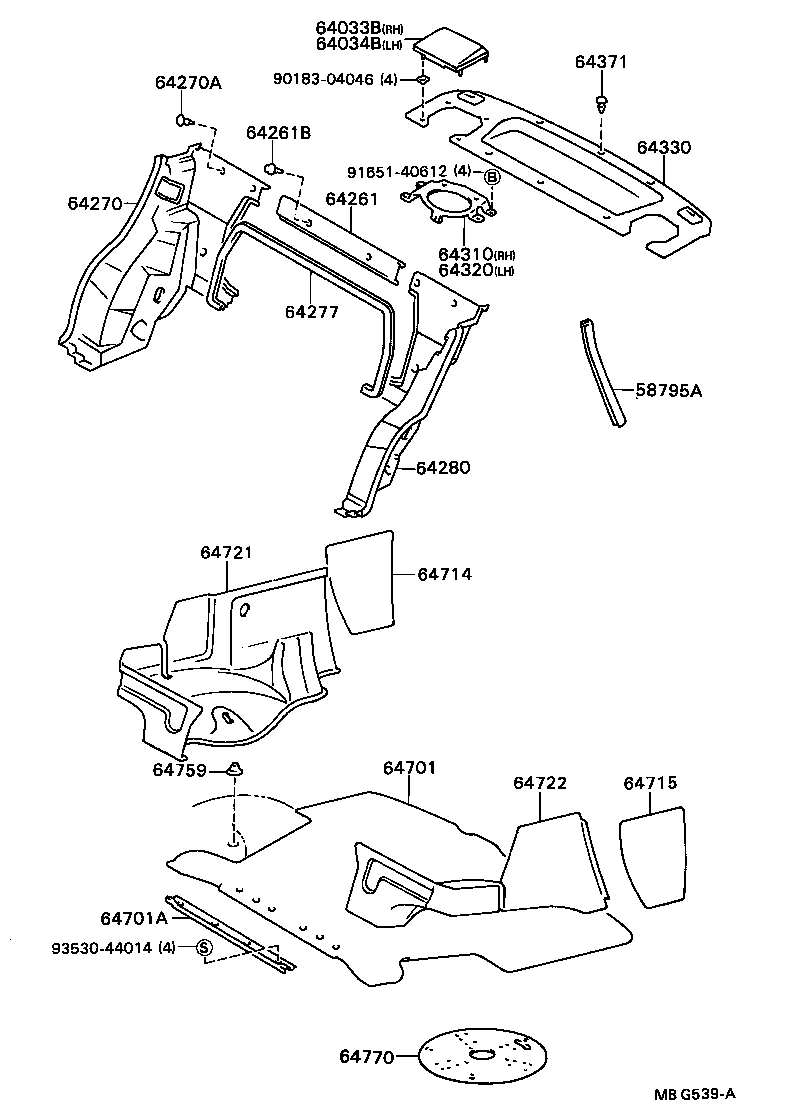

Figure MBD669B MBD669B 1982-05 → — Figure MBG539A MBG539A 1984-08 → —

Part groups

PNCDescription
58795A Trim, Jack House Opening
64033B Grille Sub-assy, Rear Speaker, RH
64034B Grille Sub-assy, Rear Speaker, LH
64261 Garnish, Room Partition
64261B Cushion(FOR ROOM PARTITION GARNISH)
64270 Board Assy, Room Partition, RH
64270A Clip(FOR ROOM PARTITION BOARD SETTING)
64277 Trim, Room Partition Lower
64280 Board Assy, Room Partition, LH
64330 Panel Assy, Package Tray Trim
64371 Retainer, Package Tray Trim
64701 Mat Sub-assy, Luggage Compartment
64701A Set Plate, Luggage Compartment
64714 Cover, Luggage Compartment, RH
64715 Cover, Luggage Compartment, LH
64721 Cover, Luggage Compartment Trim, Inner RH
64722 Cover, Luggage Compartment Trim, Inner LH
64759 Cover, Shock Absorber Head
64770 Cover Assy, Spare Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
