Toyota Corsa/Tercel

1982-05 → 1989-10 · chassis AL2# · catalogue 131120 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

13 part groups · 4 illustrations

Illustrations

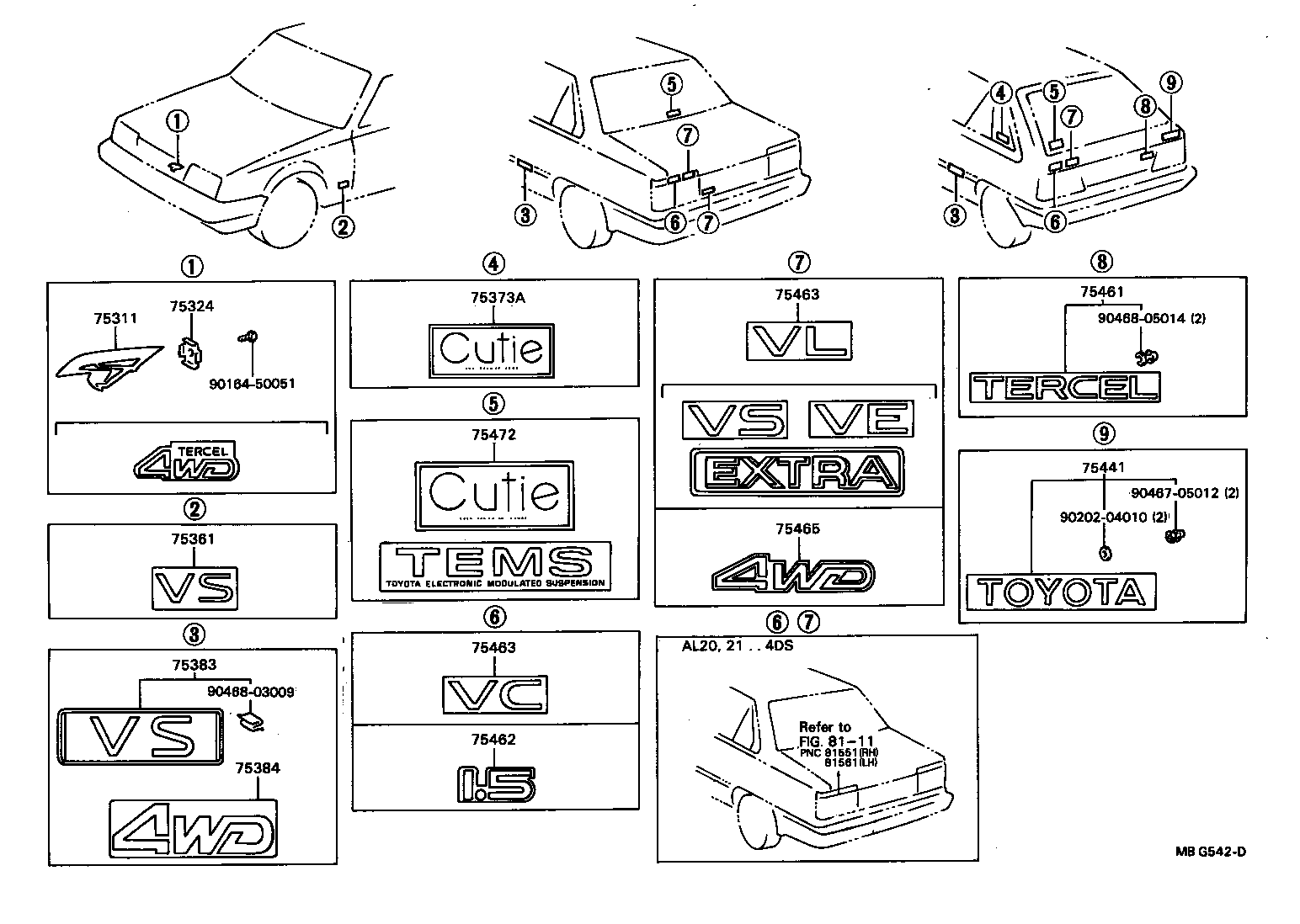

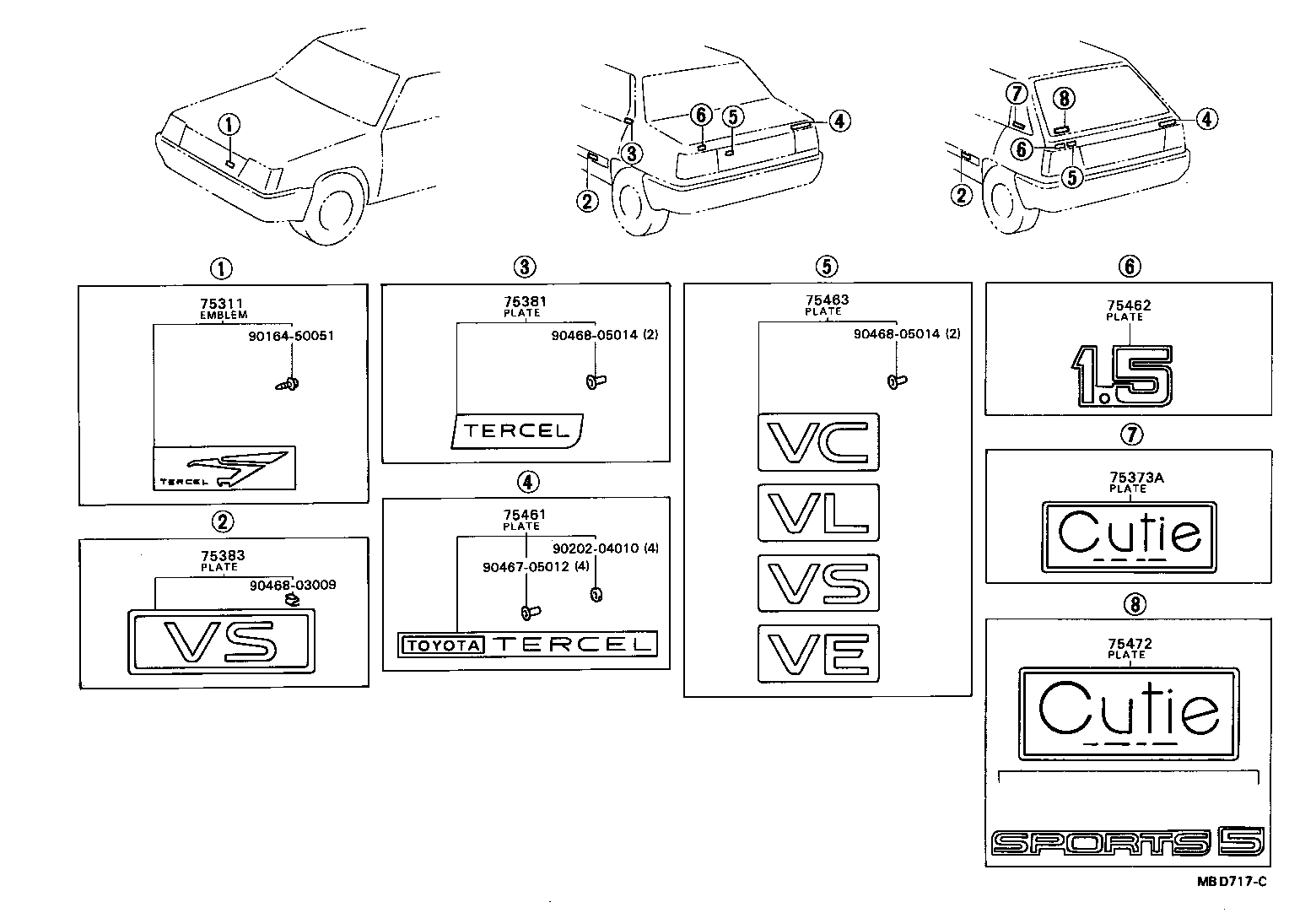

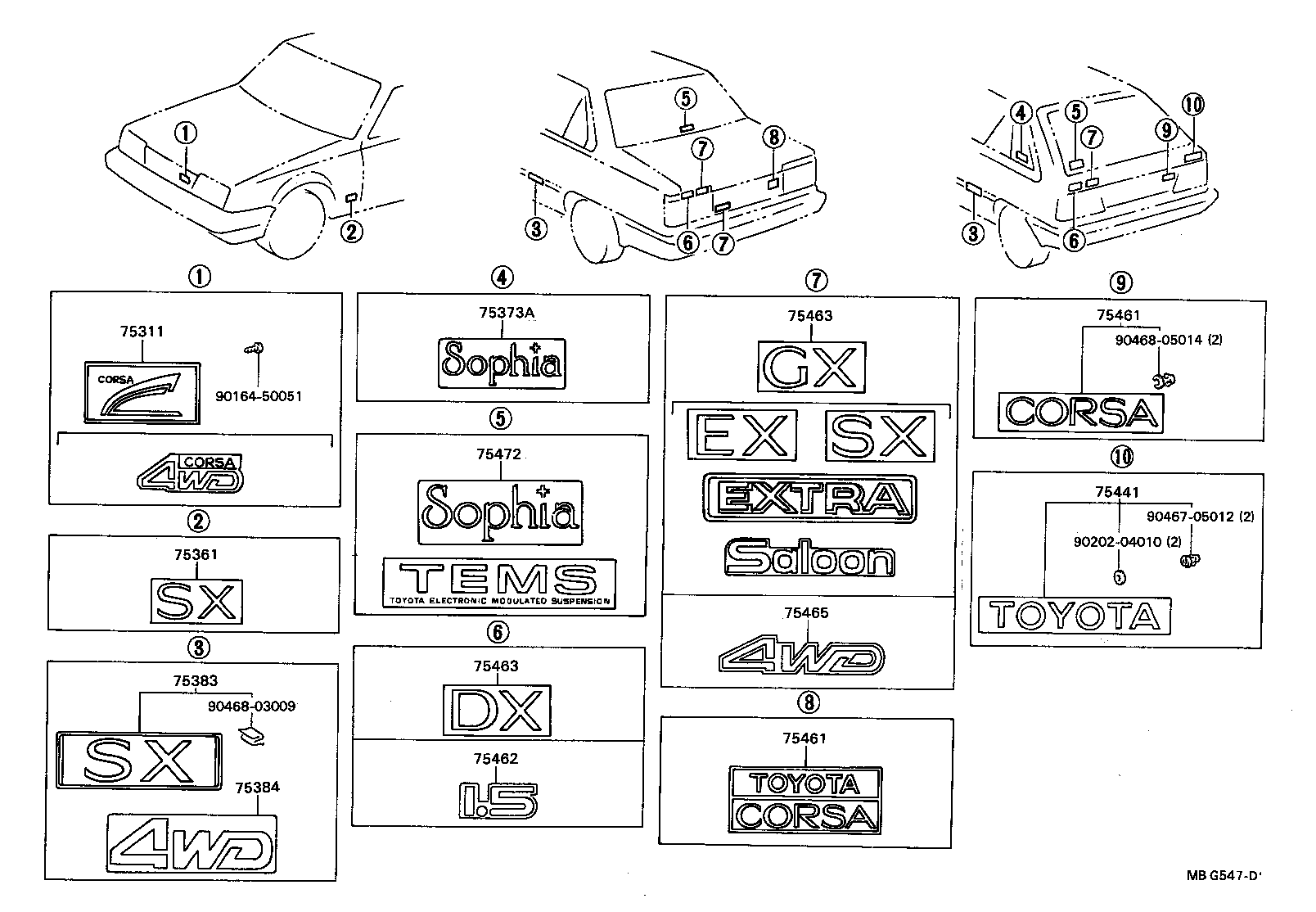

Figure MBD718A MBD718A 1982-05 → 1984-08 Figure MBG547D MBG547D 1984-08 → — Figure MBD717C MBD717C 1982-05 → 1984-08 Figure MBG542D MBG542D 1984-08 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75324 Retainer, Front Bumper Emblem
75361 Plate, Front Fender Name, NO.1 (MODEL MARK)
75373A Plate, Quarter Window Mark
75381 Plate, Quarter Panel OR Side Panel Name (MODEL MARK)
75383 Plate, Quarter Panel OR Side Panel Name (GRADE MARK)
75384 Plate, Quarter Panel OR Side Panel Name, NO.3 (MECHANISM)
75441 Plate, Rear Name, NO.1
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75462 Plate, Rear Name, NO.3 (DISPLACEMENT)
75463 Plate, Rear Name, NO.4 (GRADE MARK)
75465 Plate, Rear Name, NO.5 (MECHANISM)
75472 Plate, Rear Window Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
