Toyota Corsa/Tercel

1982-05 → 1989-10 · chassis AL2# · catalogue 131120 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

17 part groups · 5 illustrations

Illustrations

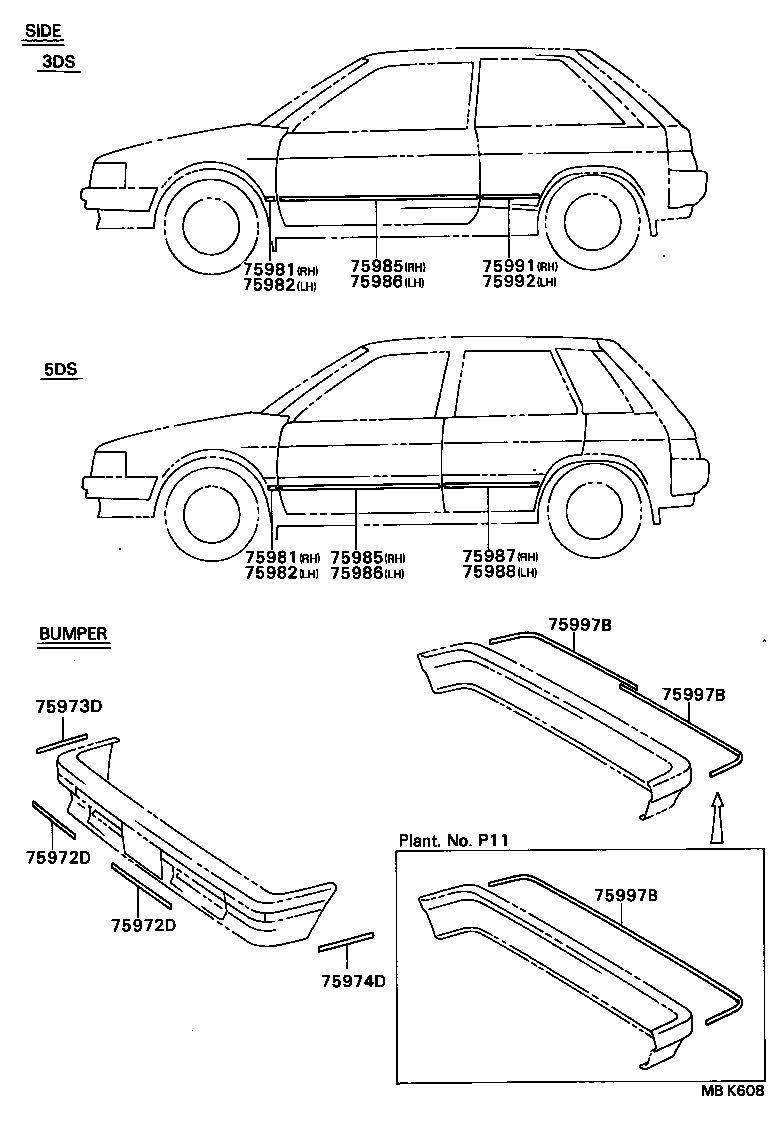

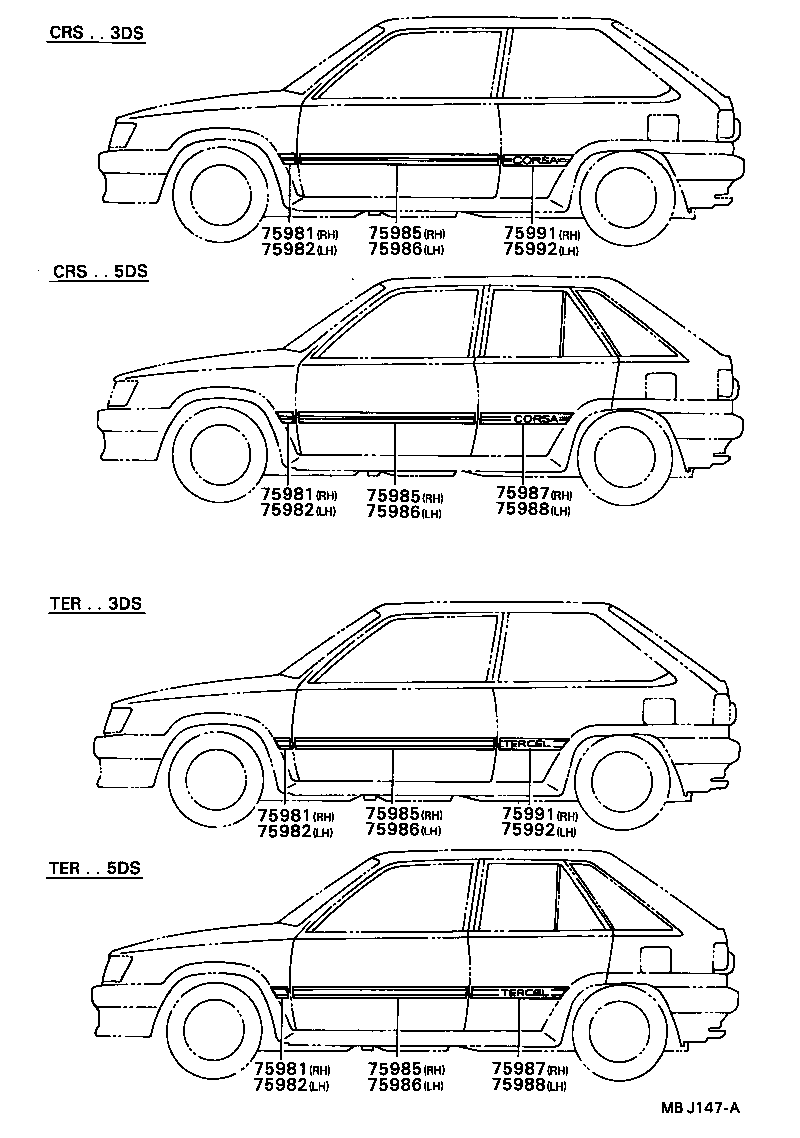

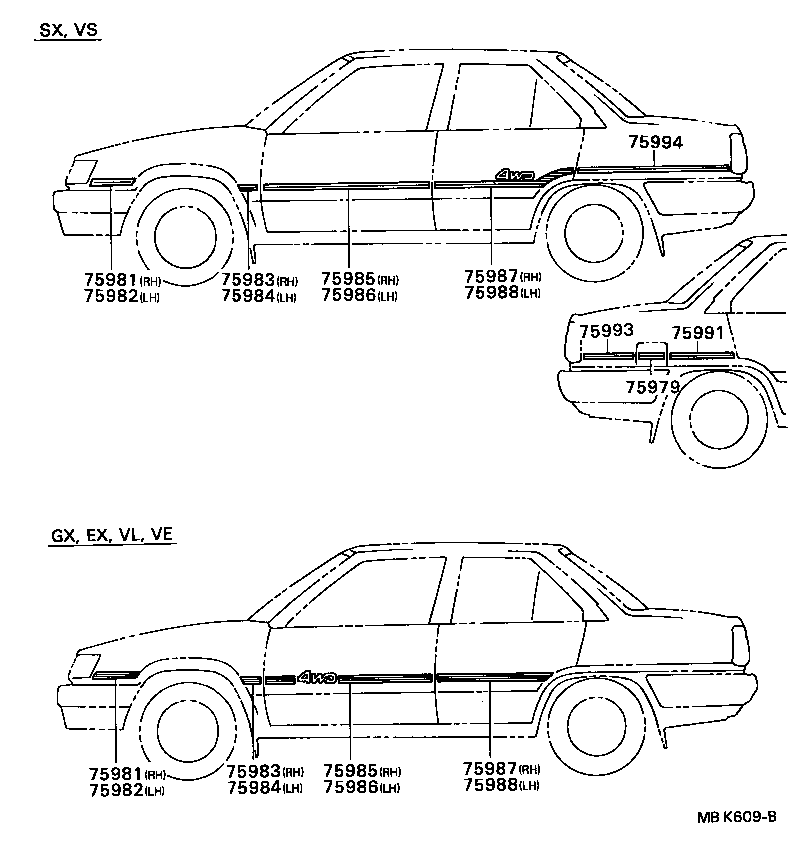

Figure MBG543C MBG543C 1984-08 → 1986-05 Figure MBJ146 MBJ146 1985-04 → 1986-05 Figure MBK608 MBK608 1985-01 → 1986-05 Figure MBJ147A MBJ147A 1985-04 → 1986-05 Figure MBK609B MBK609B 1986-05 → —

Part groups

PNCDescription
75972D Stripe, Front Bumper, Center
75973D Stripe, Front Bumper Side, RH
75974D Stripe, Front Bumper Side, LH
75979 Stripe, Fuel Filler Opening Lid
75981 Stripe, Front Fender, RH NO.1
75982 Stripe, Front Fender, LH NO.1
75983 Stripe, Front Fender, RH NO.2
75984 Stripe, Front Fender, LH NO.2
75985 Stripe, Front Door, RH
75986 Stripe, Front Door, LH
75987 Stripe, Rear Door, RH
75988 Stripe, Rear Door, LH
75991 Stripe, Quarter, RH NO.1
75992 Stripe, Quarter, LH NO.1
75993 Stripe, Quarter, RH NO.2
75994 Stripe, Quarter, LH NO.2
75997B Stripe, Rear Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
