Toyota Corsa/Tercel
1982-05 → 1989-10 · chassis AL2# · catalogue 131120 · Japan
Discontinued model
Data version 1990-07
Headlamp
19 part groups · 5 illustrations
Part groups

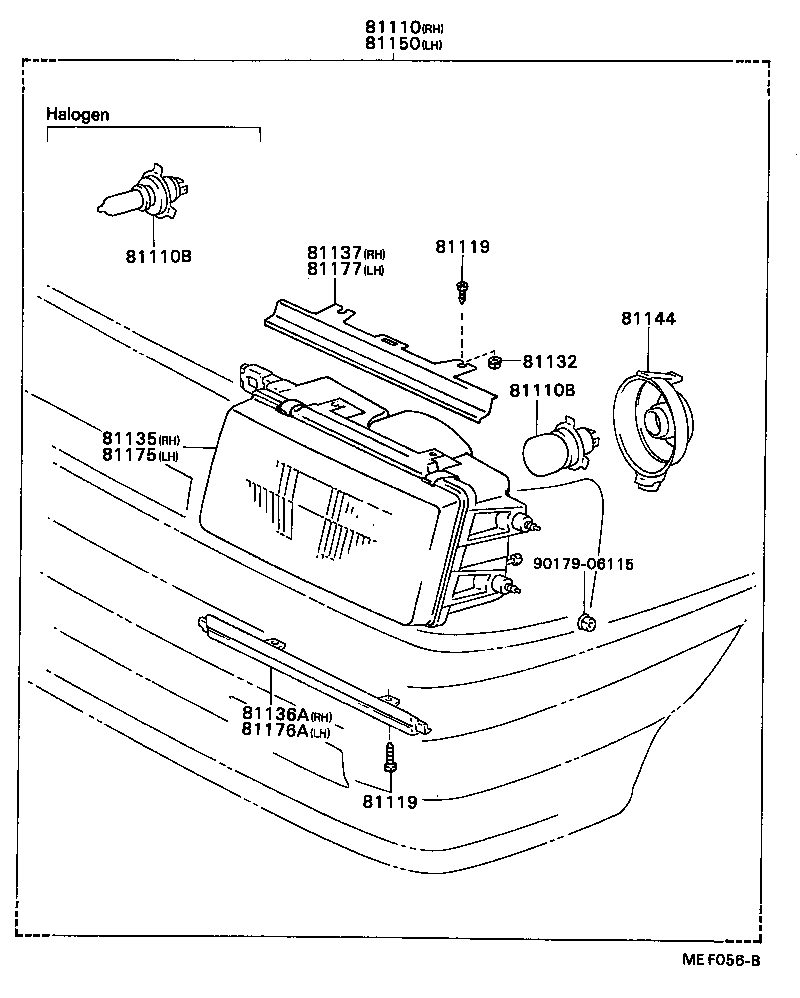

| PNC | Description |
|---|---|
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81115A | Body And Reflector Sub-assy, Headlamp, RH |
| 81116A | Body And Reflector Sub-assy, Headlamp, LH |
| 81117 | Packing, Headlamp Housing |
| 81118 | Nut, Spring |
| 81119 | Screw, Headlamp |
| 81132 | Nut, Headlamp Self Locking |
| 81135 | Unit Assy, Headlamp, RH |
| 81136A | Rim, Headlamp, RH |
| 81137 | Protector, Headlamp, NO.2 RH |
| 81138 | Spring, Headlamp |
| 81144 | Cover, Headlamp, NO.1 |
| 81146 | Lens, Headlamp, RH |
| 81150 | Headlamp Assy, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81176A | Rim, Headlamp, LH |
| 81177 | Protector, Headlamp, NO.2 LH |
| 81186 | Lens, Headlamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
