Toyota Corsa/Tercel

1982-05 → 1989-10 · chassis AL2# · catalogue 131120 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

19 part groups · 8 illustrations

Illustrations

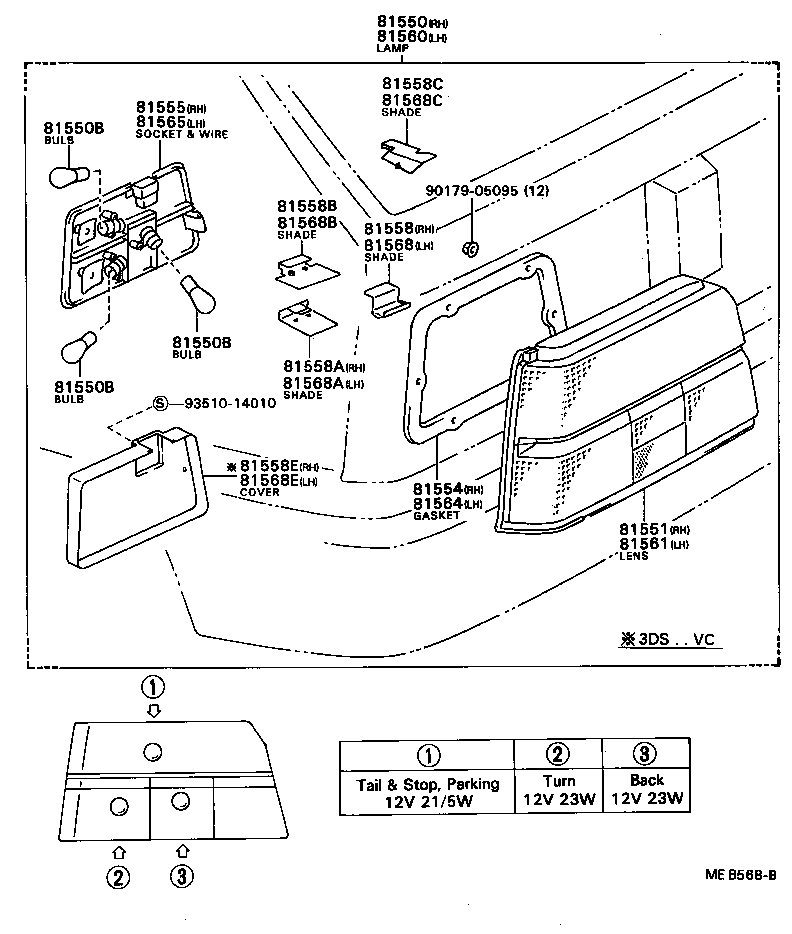

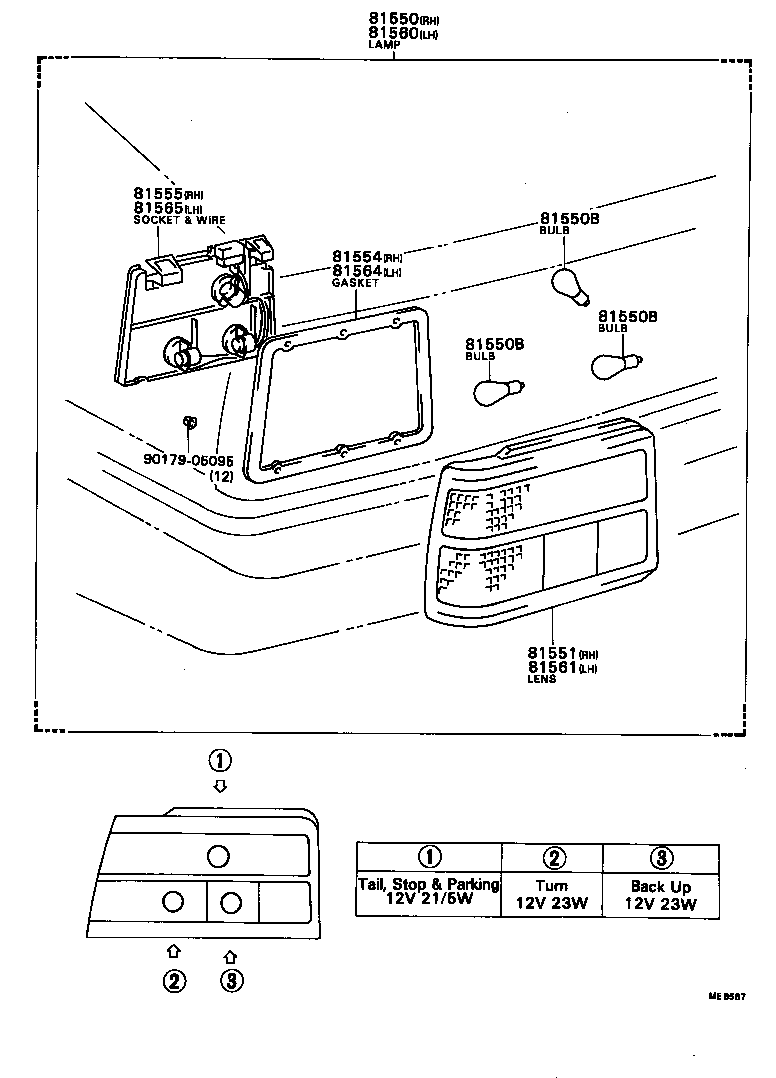

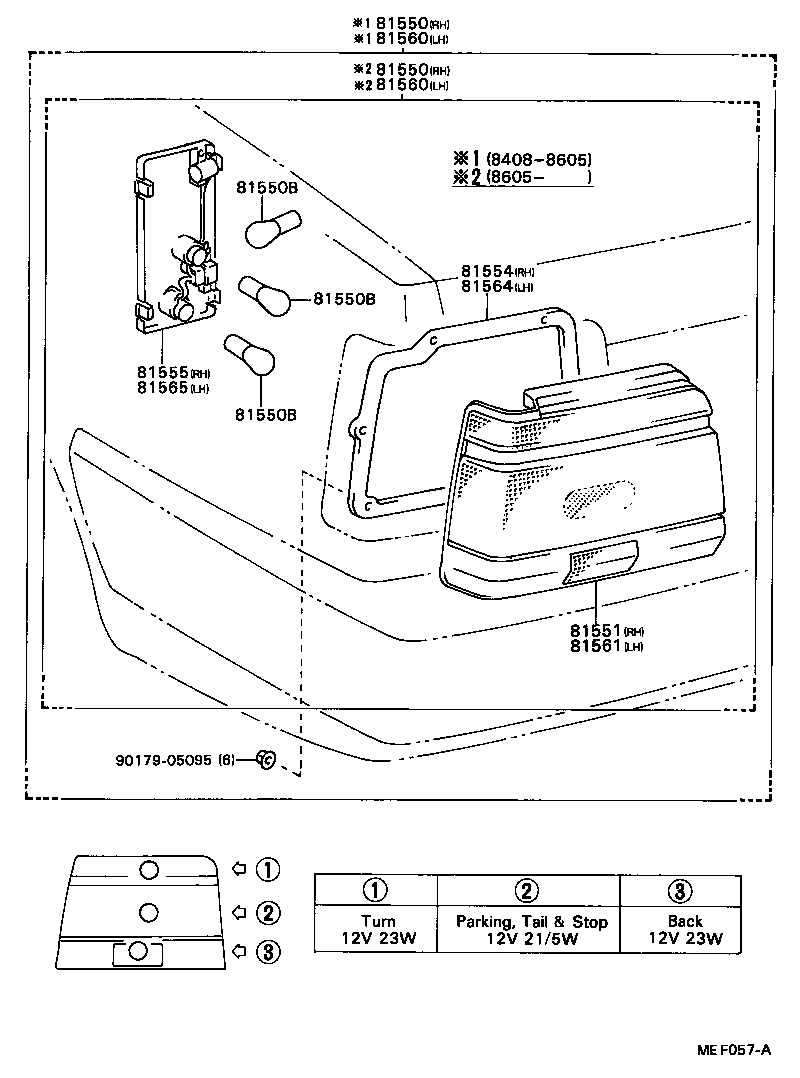

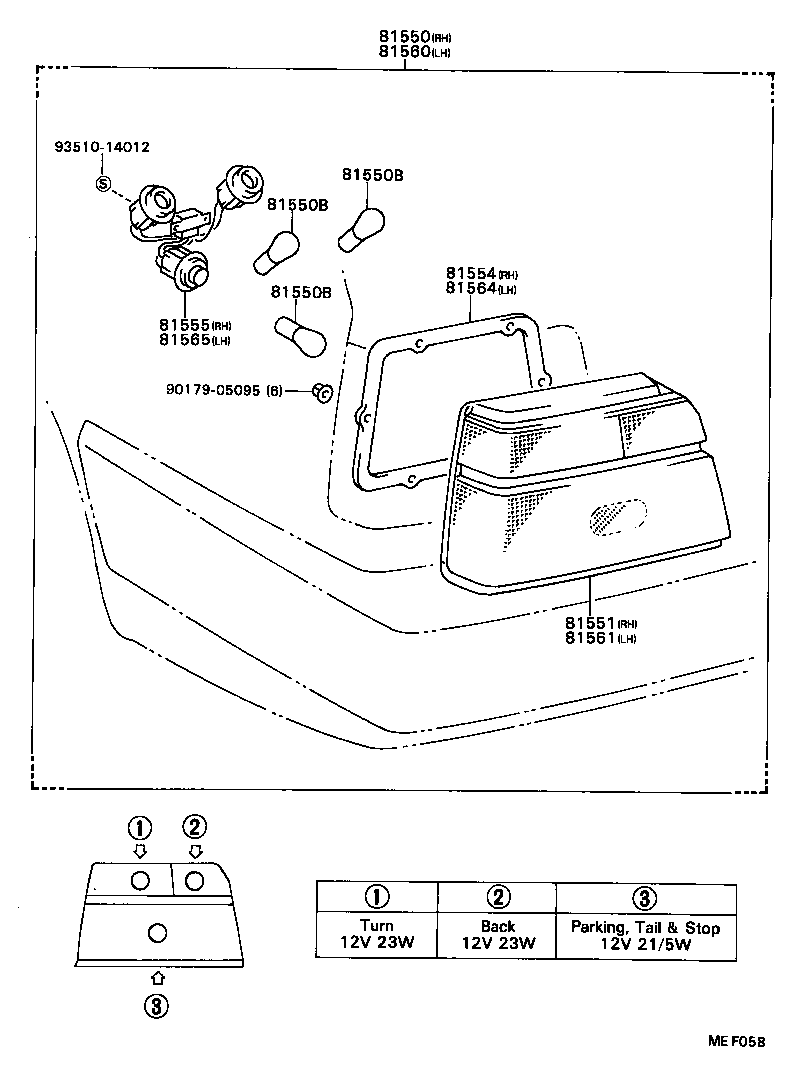

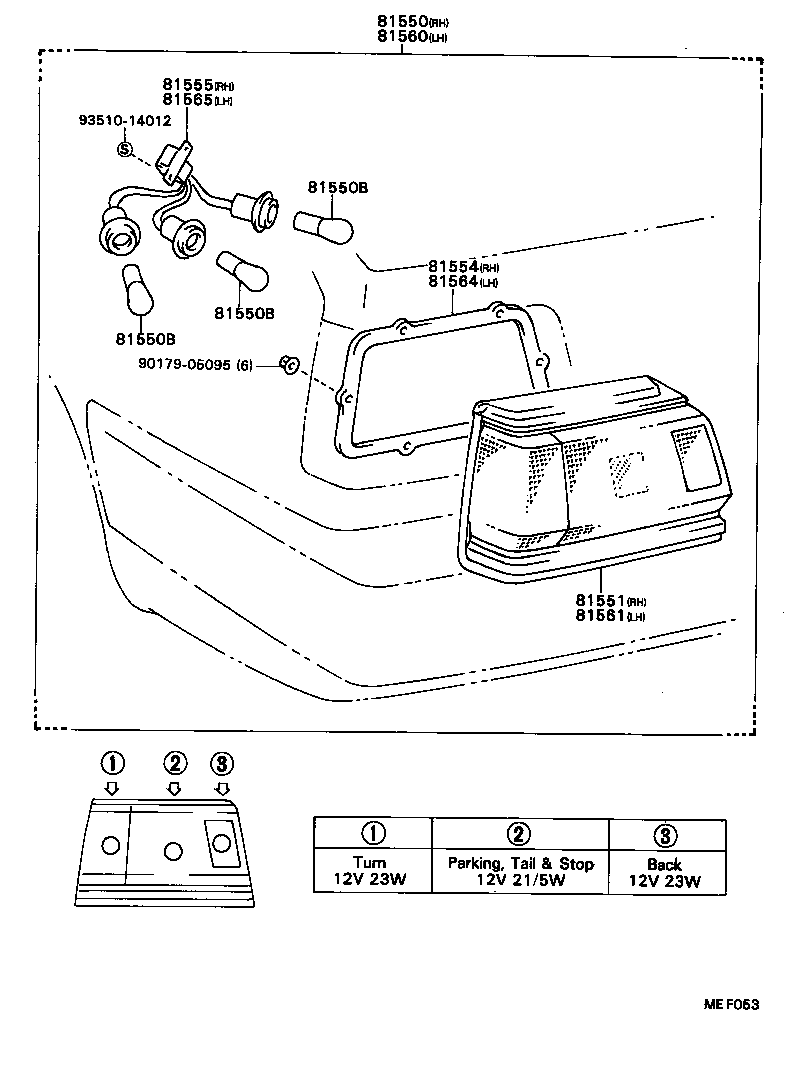

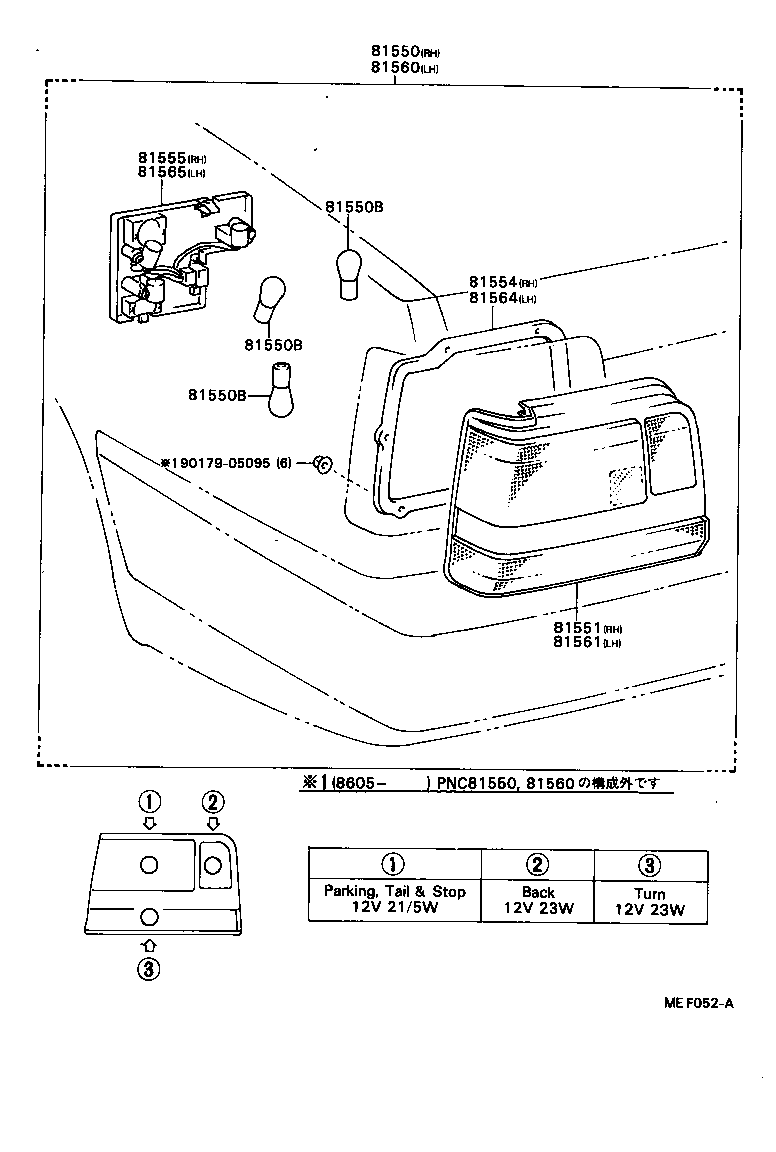

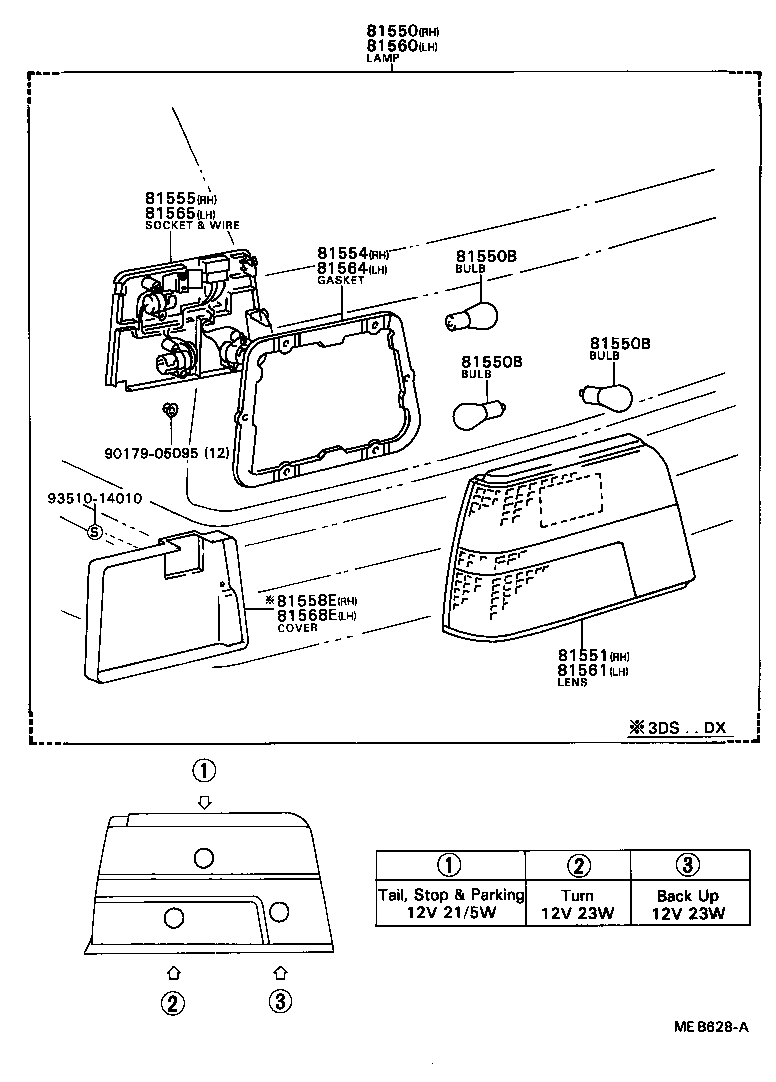

Figure MEB627 MEB627 1982-05 → 1984-08 Figure MEF057A MEF057A 1984-08 → — Figure MEB628A MEB628A 1982-05 → 1984-08 Figure MEF058 MEF058 1984-08 → 1986-05 Figure MEB567 MEB567 1982-05 → 1984-08 Figure MEF052A MEF052A 1984-08 → — Figure MEB568B MEB568B 1982-05 → 1984-08 Figure MEF053 MEF053 1984-08 → 1986-05

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81558 Shade, Rear Combination Lamp, NO.1 RH
81558A Shade, Rear Combination Lamp, NO.2 RH
81558B Shade, Rear Combination Lamp, NO.3 RH
81558C Shade, Rear Combination Lamp, NO.4 RH
81558E Cover, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81568 Shade, Rear Combination Lamp, NO.1 LH
81568A Shade, Rear Combination Lamp, NO.2 LH
81568B Shade, Rear Combination Lamp, NO.3 LH
81568C Shade, Rear Combination Lamp, NO.4 LH
81568E Cover, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
