Toyota Corsa/Tercel

1982-05 → 1989-10 · chassis AL2# · catalogue 131120 · Japan

Discontinued model Data version 1990-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

32 part groups · 5 illustrations

Illustrations

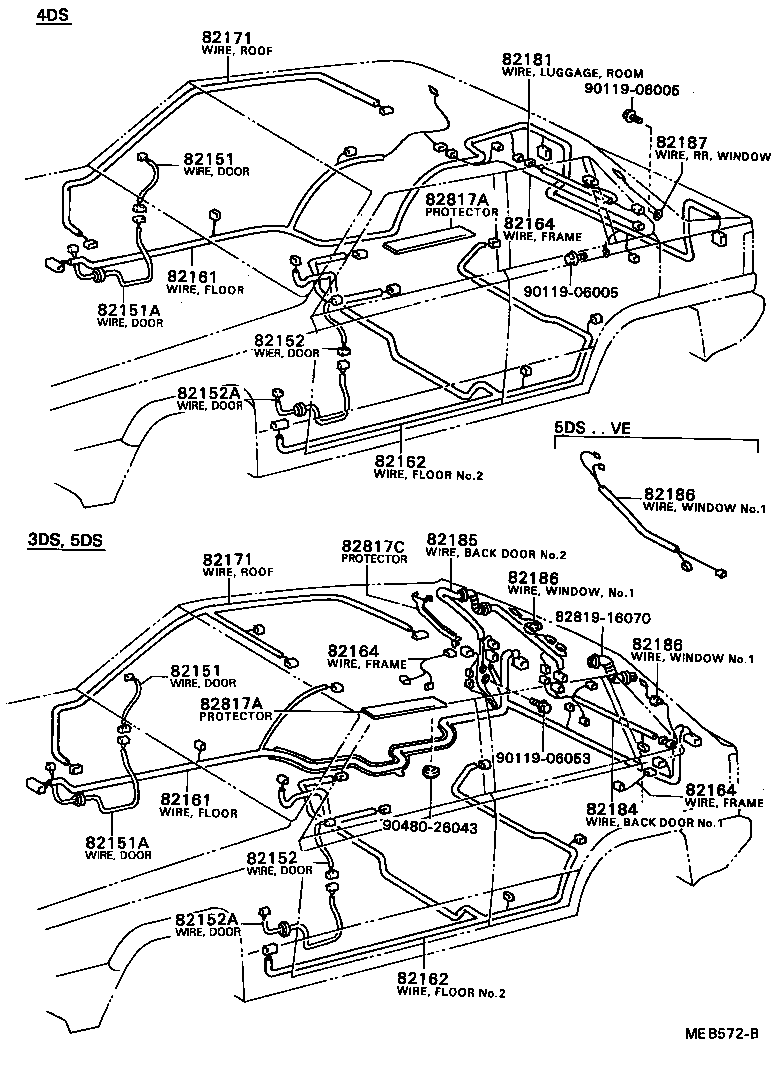

Figure MEB573G MEB573G 1982-05 → — Figure MEB572B MEB572B 1982-05 → — Figure MEB574E MEB574E 1982-05 → — Figure MEF862 MEF862 1982-05 → — Figure MEC296A MEC296A 1982-05 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82131 Wire, Cowl
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82221 Wire, Oil Pressure Switch
82291 Wiring, TO Solenoid
82345 Diode
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82823 Cap, Terminal, NO.1
82823A Cap, Terminal, NO.2
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82985 Wire, Side Turn Signal Lamp Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
