Toyota Corolla 2

1982-05 → 1986-04 · chassis AL2# · catalogue 133120 · Japan

Discontinued model Data version 1986-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

22 part groups · 2 illustrations

Illustrations

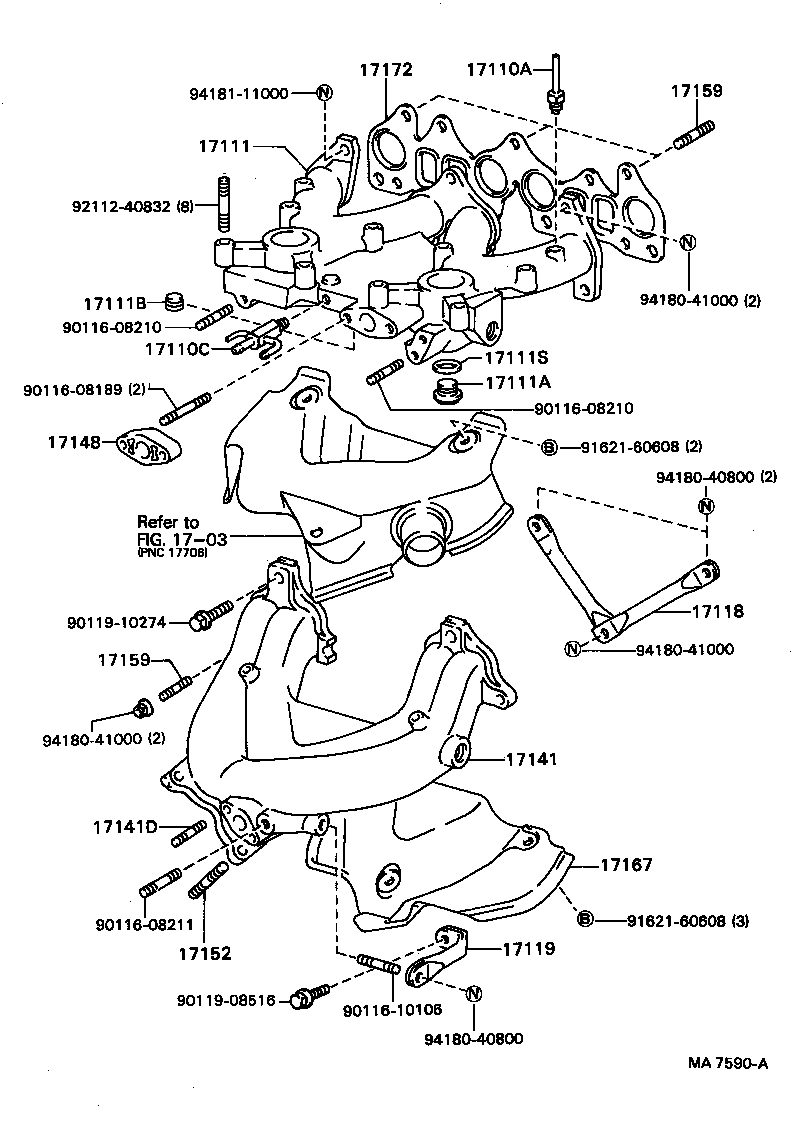

Figure MA5759E MA5759E 1982-05 → — Figure MA7590A MA7590A 1984-08 → —

Part groups

PNCDescription
17110A Union, Vacuum Hose
17110C Union(FOR AIR CLEANER TO MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17111S Gasket(FOR MANIFOLD PLUG)
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17148 Plate, Exhaust Manifold(FOR EGR INLET)
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17172 Gasket, Manifold TO Cylinder Head
17233 Counter Weight
17233A Spring, Spiral, NO.1(FOR COUNTER WEIGHT)
17233B Spring, Spiral, NO.2(FOR COUNTER WEIGHT)
17233C Bolt(FOR COUNTER WEIGHT)
17233D Shim(FOR COUNTER WEIGHT)
17233E Ring, E(FOR COUNTER WEIGHT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
