Toyota Corolla 2

1982-05 → 1986-04 · chassis AL2# · catalogue 133120 · Japan

Discontinued model Data version 1986-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

9 part groups · 4 illustrations

Illustrations

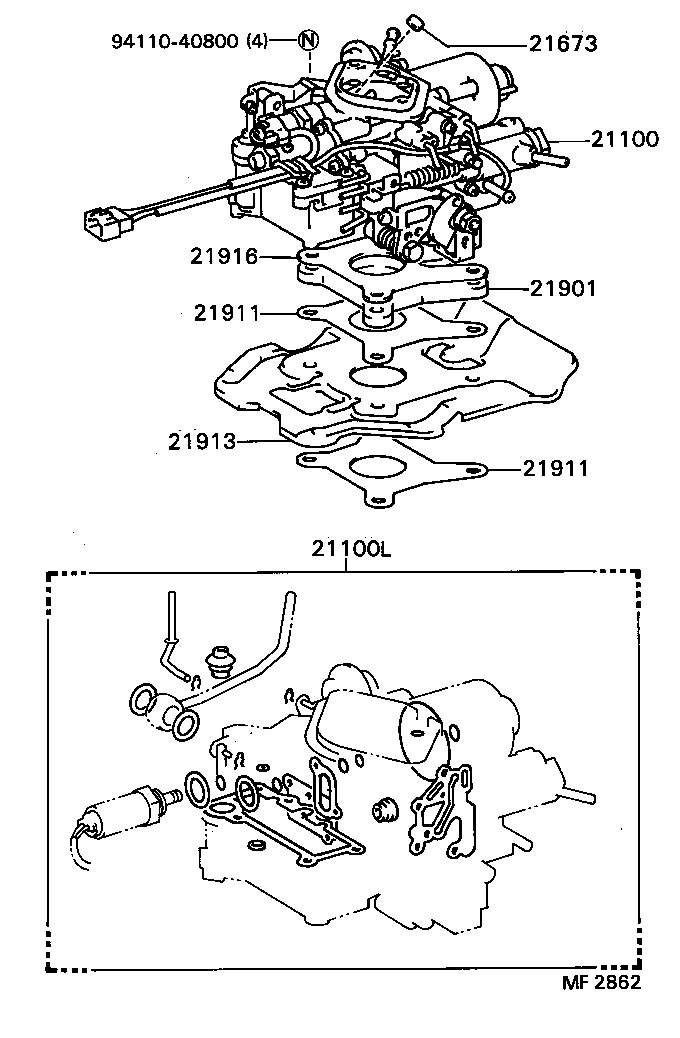

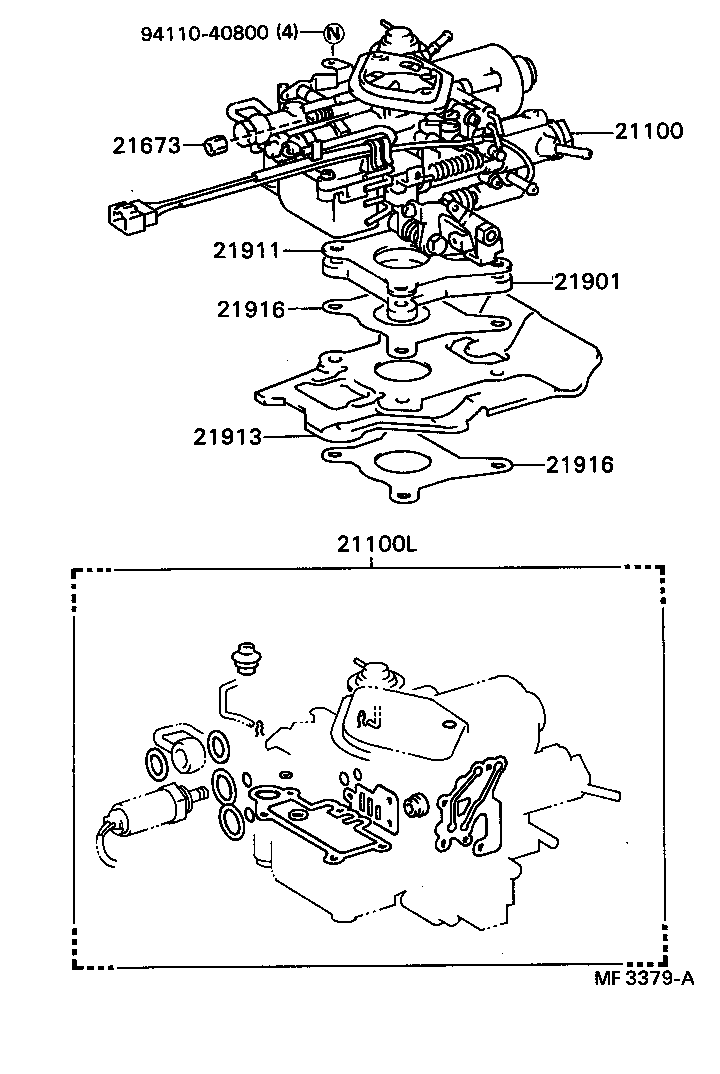

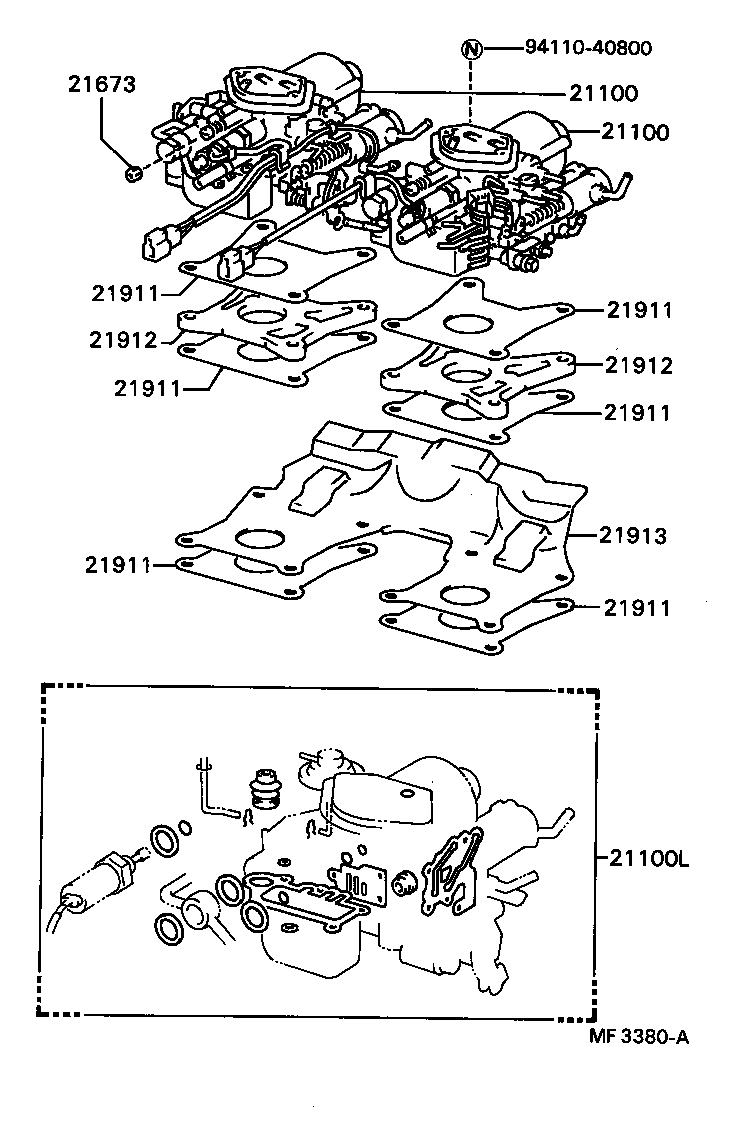

Figure MF2216A MF2216A 1982-05 → 1984-08 Figure MF3379A MF3379A 1984-08 → — Figure MF2862 MF2862 1982-05 → 1984-08 Figure MF3380A MF3380A 1984-08 → —

Part groups

PNCDescription
21100 Carburetor Assy
21100K Carburetor Kit
21100L Gasket Kit, Carburetor
21673 Cap, Idle Limit
21901 Insulator Sub-assy, Carburetor Heat, NO.1
21911 Gasket, Carburetor
21912 Insulator, Carburetor Heat
21913 Insulator, Carburetor Heat, NO.2
21916 Gasket, Carburetor, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
