Toyota Corolla 2
1982-05 → 1986-04 · chassis AL2# · catalogue 133120 · Japan
Discontinued model
Data version 1986-10

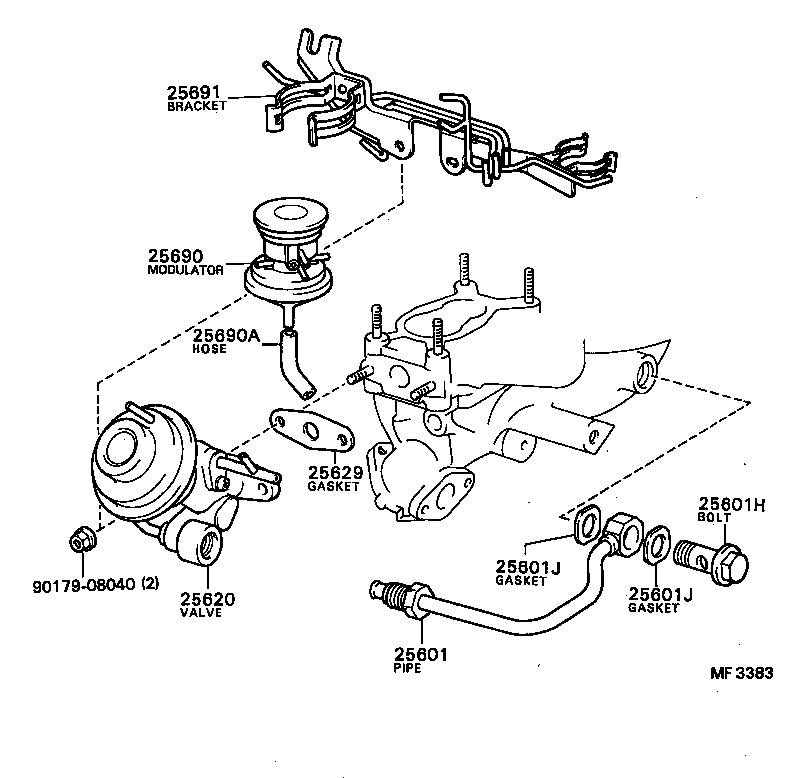

Exhaust Gas Recirculation System
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 25601 | Pipe Sub-assy, Egr, NO.1 |
| 25601H | Bolt, Union(FOR EGR PIPE,NO.1) |
| 25601J | Gasket(FOR EGR PIPE, NO.1) |
| 25620 | Valve Assy, Egr |
| 25629 | Gasket, Egr Valve Adapter |
| 25690 | Modulator Assy, Egr Vacuum |
| 25690A | Hose(FOR EGR VACUUM MODULATOR) |
| 25691 | Bracket, Egr Vacuum Modulator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
