Toyota Corolla 2
1982-05 → 1986-04 · chassis AL2# · catalogue 133120 · Japan
Discontinued model
Data version 1986-10
Front Axle Housing & Differential
41 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 31105 | Case Sub-assy, Transaxle(MTM) |
| 31105A | Plug, Tight(FOR FRONT TRANSAXLE CASE) |
| 31105B | Bolt, Hexagon(FOR DIFFERENTIAL BEARING CAP SETTING) |
| 31105C | Pin, Straight(FOR TRANSAXLE CASE) |
| 31110A | Plug(FOR DIFFERENTIAL FILLER) |
| 31110B | Plug(FOR DIFFERENTIAL DRAIN) |
| 31110C | Gasket(FOR DIFFERENTIAL FILLER) |
| 31110D | Gasket(FOR DIFFERENTIAL DRAIN) |
| 33101F | Ring, O(FOR INPUT FRONT) |

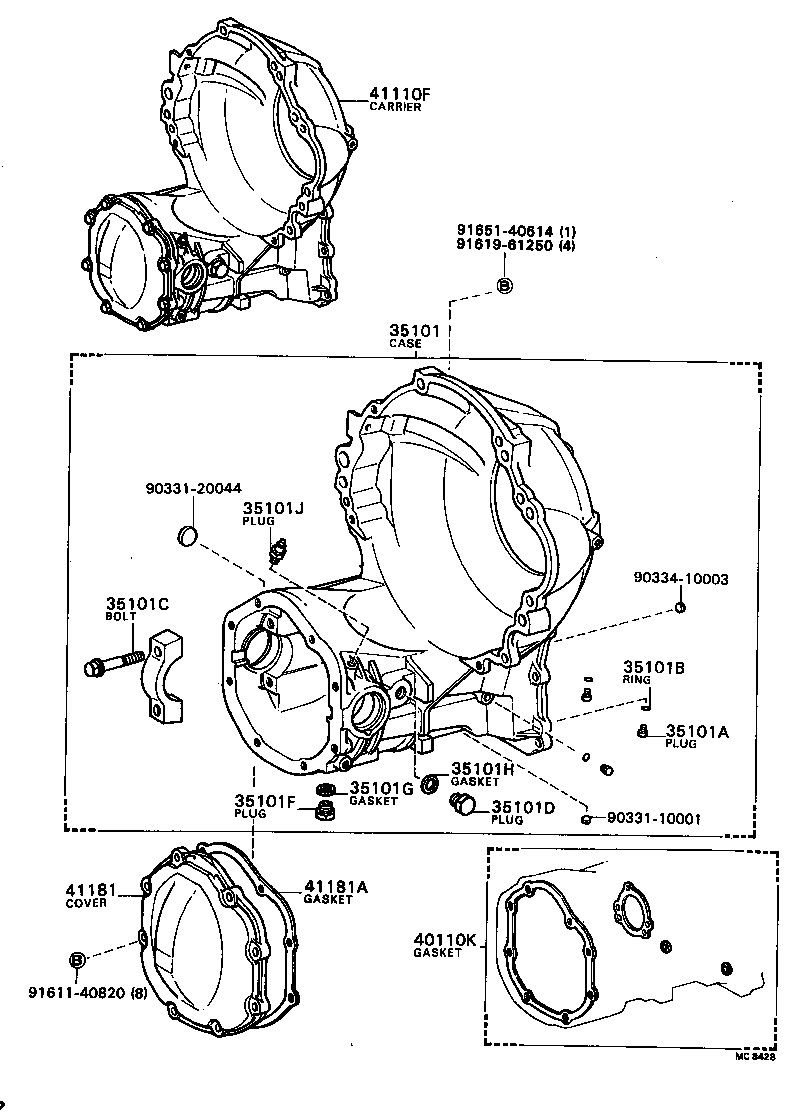

| 35101 | Case Sub-assy, Torque Converter & Differential |
| 35101A | Plug, Straight (FOR TORQUE CONVERTER & DIFFERENTIAL CASE) |
| 35101B | Ring, O (FOR TORQUE CONVERTER & DIFFERENTIAL CASE) |
| 35101C | Bolt, Hexagon (FOR DIFFERENTIAL BEARING CAP SETTING) |
| 35101D | Plug (FOR DIFFERENTIAL FILLER) |
| 35101F | Plug Sub-assy, Drain (FOR AUTOMATIC TRANSMISSION CASE) |
| 35101G | Gasket, Drain Plug (FOR AUTOMATIC TRANSMISSION CASE) |
| 35101H | Gasket (FOR DIFFERENTIAL FILLER) |
| 35101J | Plug, Breather (FOR AUTOMATIC TRANSMISSION CASE) |
| 40110K | Gasket Kit, Differential Carrier |

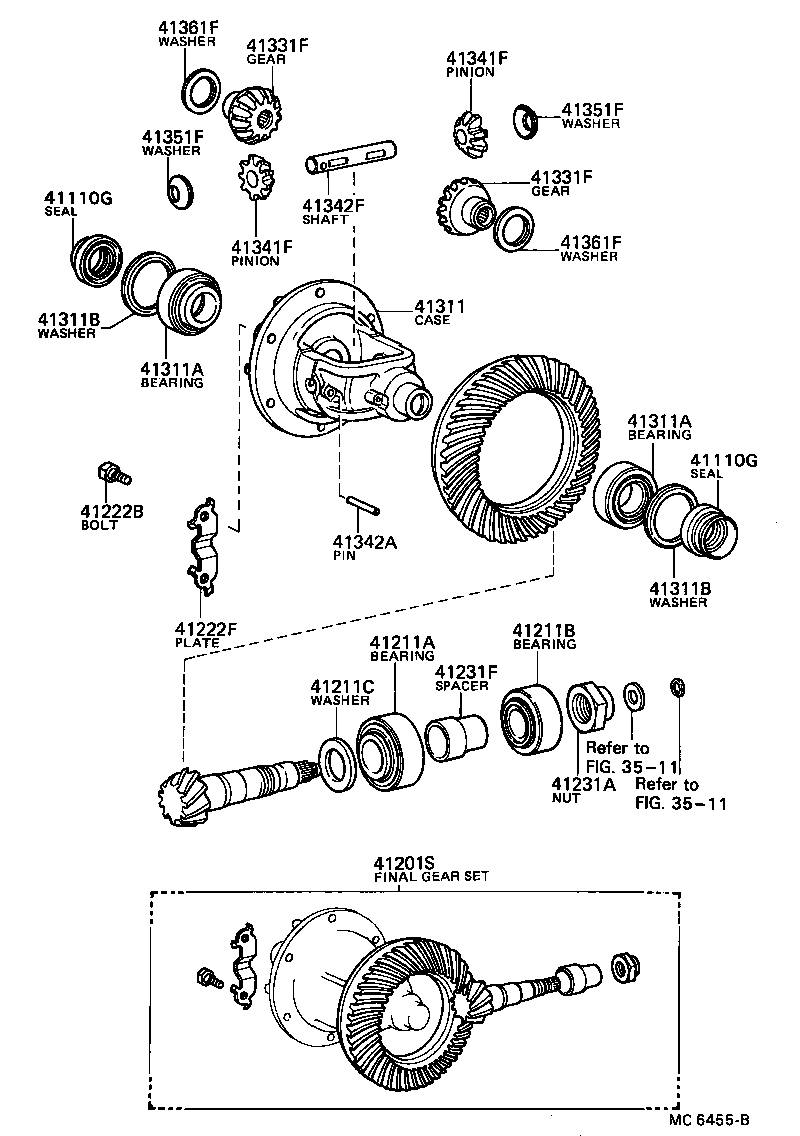

| 41110F | Carrier Assy, Differential, Front |
| 41110G | Seal, Oil (FOR DIFFERENTIAL SIDE) |

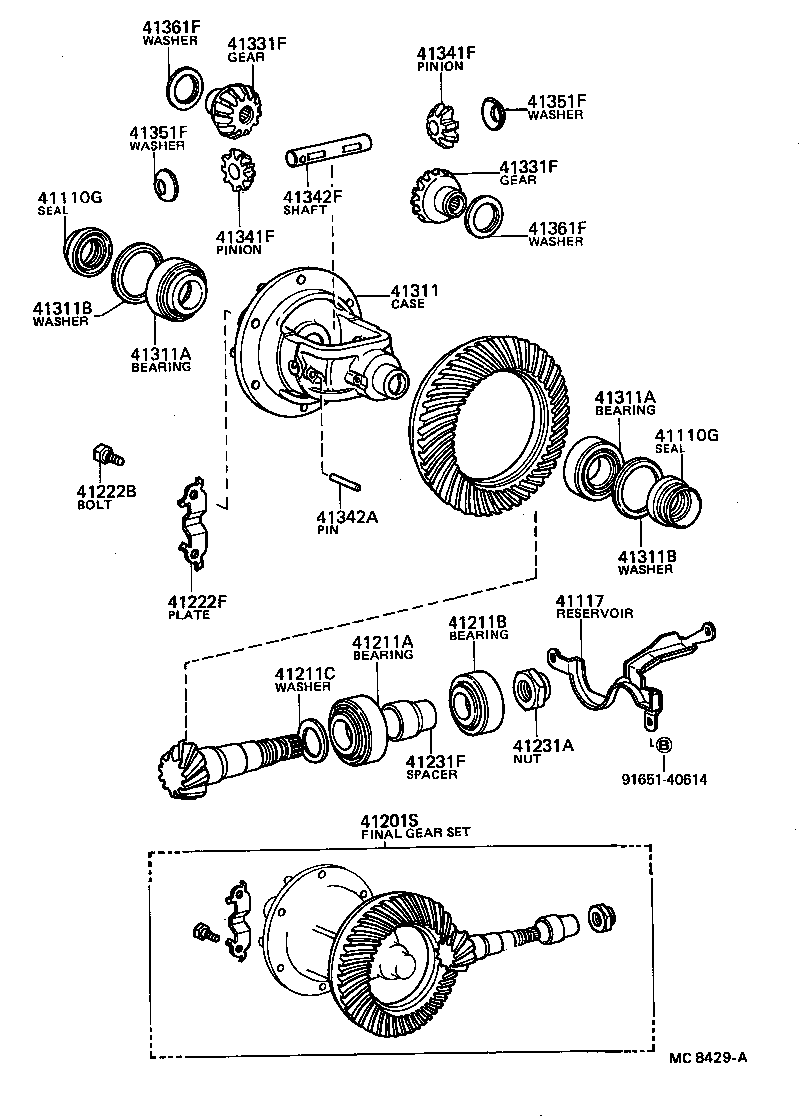

| 41117 | Reservoir, Differential Oil |
| 41181 | Cover, Front Differential Carrier |
| 41181A | Gasket, Front Differential Carrier Cover |
| 41201S | Final Gear Kit, Differential, Front |
| 41211A | Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT) |
| 41211B | Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR) |
| 41211C | Gear, Differential Ring |
| 41222B | Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET) |
| 41222F | Plate, Fornt Differential Ring Gear Set Bolt Lock |
| 41231A | Nut, Drive Pinion Lock |
| 41231F | Spacer, Front Differential Drive Pinion Bearing |
| 41311 | Case, Front Differential |
| 41311A | Bearing (FOR FRONT DIFFERENTIAL CASE) |
| 41311B | Washer, Plate (FOR FRONT DIFFERENTIAL CASE) |
| 41331F | Gear, Front Differential Side |
| 41341F | Pinion, Front Differential |
| 41342A | Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT) |
| 41342F | Shaft, Front Differential Pinion, NO.1 |
| 41351F | Washer, Front Differential Pinion Thrust |
| 41361F | Washer, Front Differential Side Gear Thrust, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
