Toyota Corolla 2

1982-05 → 1986-04 · chassis AL2# · catalogue 133120 · Japan

Discontinued model Data version 1986-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

16 part groups · 4 illustrations

Illustrations

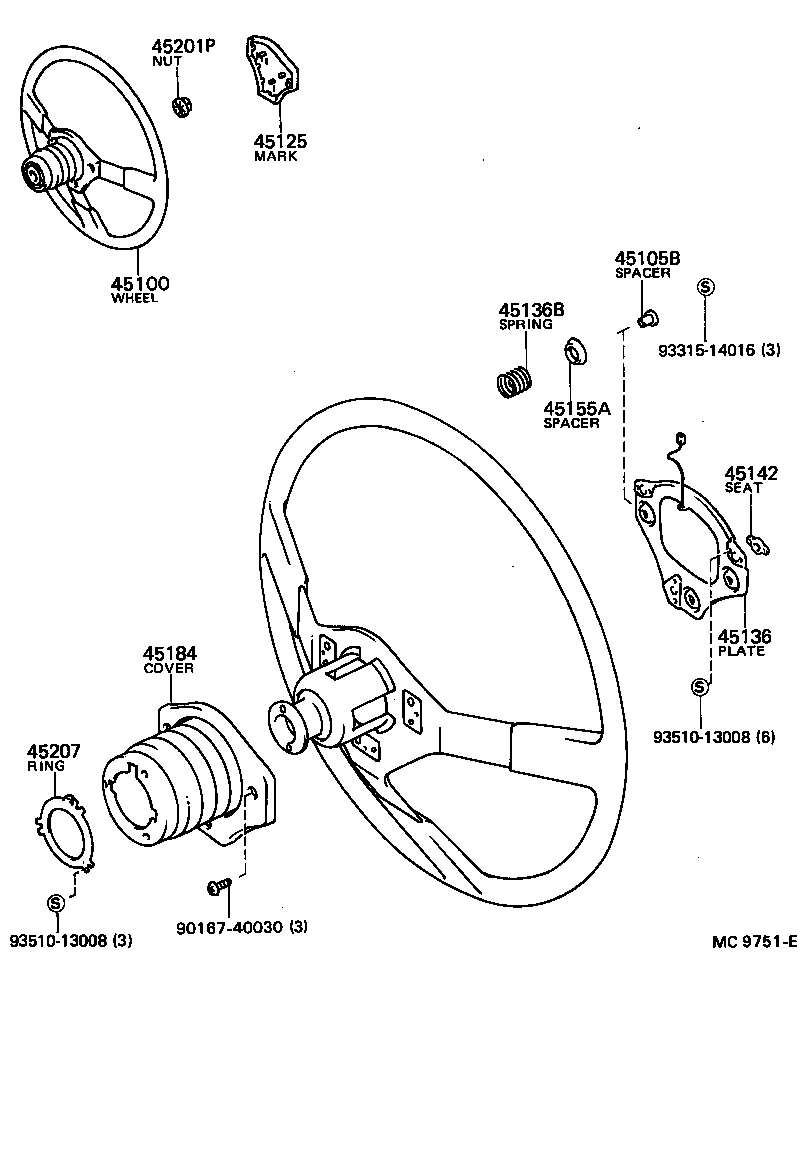

Figure MC8439B MC8439B 1982-05 → 1984-08 Figure MC8440B MC8440B 1982-05 → 1984-08 Figure MCB486A MCB486A 1984-08 → — Figure MC9751E MC9751E 1984-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45125 Mark, Steering Wheel Pad
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45136 Plate, Horn Button Contact
45136A Cord(FOR HORN CONTACT RING)
45136B Spring, Compression(FOR HORN BUTTON CONTACT PLATE)
45142 Seat, Horn Button Contact, NO.1
45146 Spring, Horn Button Contact
45155A Spacer, Horn Contact
45184 Cover, Steering Wheel Boss, Lower
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
