Toyota Corolla 2

1982-05 → 1986-04 · chassis AL2# · catalogue 133120 · Japan

Discontinued model Data version 1986-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

14 part groups · 2 illustrations

Illustrations

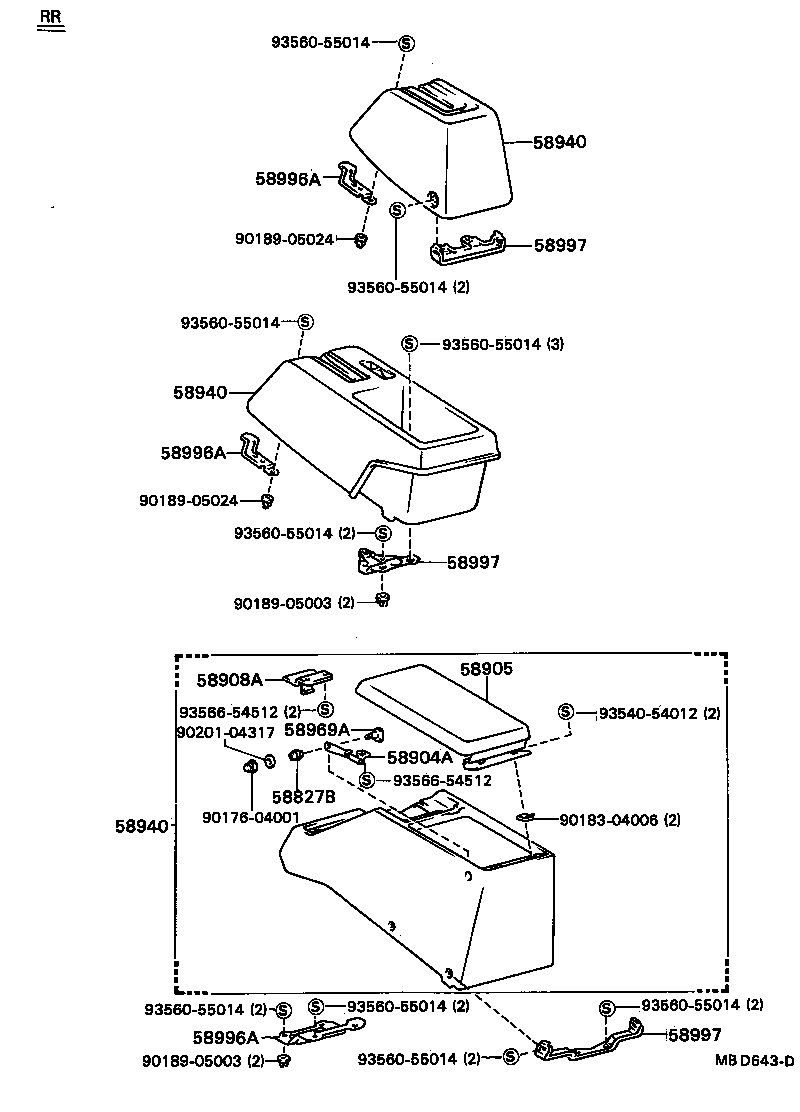

Figure MBD644E MBD644E 1982-05 → — Figure MBD643D MBD643D 1982-05 → —

Part groups

PNCDescription
58801 Console Sub-assy, Upper
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58827B Spacer, Console Compartment Door Stopper
58843 Bezel, Shifting Hole
58884 Cover, Stereo Opening
58885 Cover, Console Box Opening
58904A Stopper Sub-assy, Console Compartment Door
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58940 Console Assy, Rear
58969A Retainer, Console Compartment Door Stopper
58996A Bracket, Console Box Mounting, NO.2
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
