Toyota Corolla 2

1982-05 → 1986-04 · chassis AL2# · catalogue 133120 · Japan

Discontinued model Data version 1986-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Truck

6 part groups · 2 illustrations

Illustrations

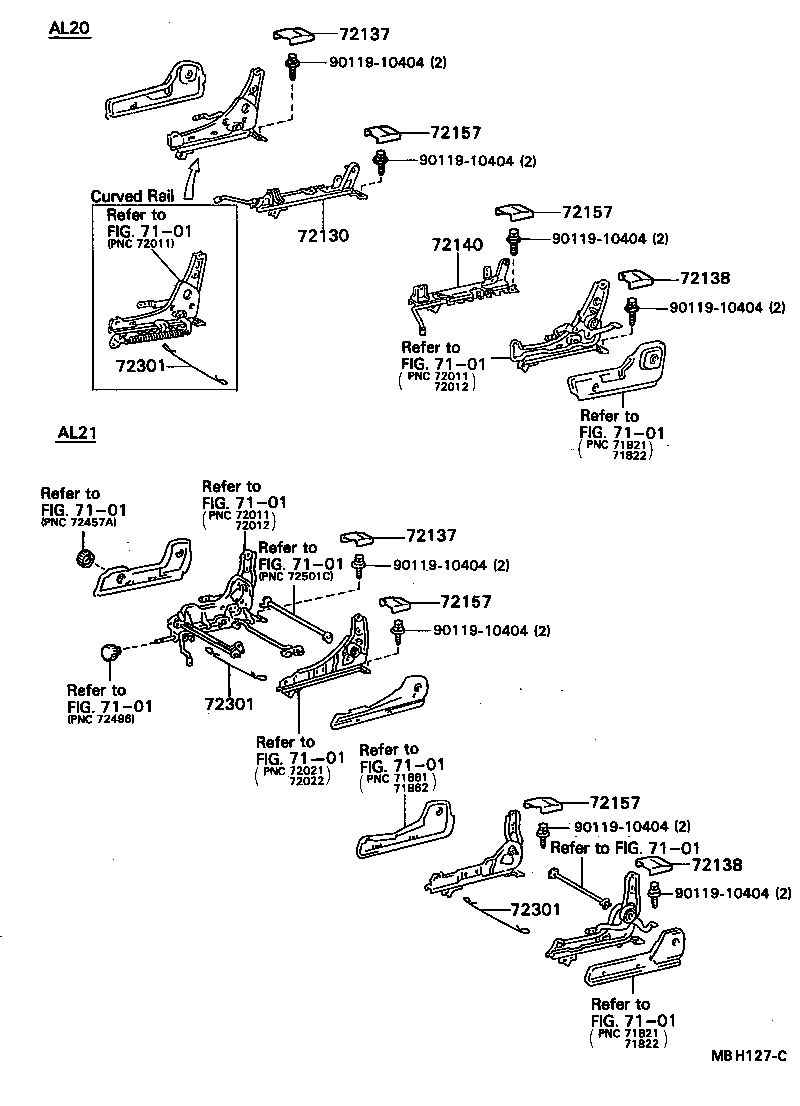

Figure MBD702C MBD702C 1982-05 → 1984-08 Figure MBH127C MBH127C 1984-08 → —

Part groups

PNCDescription
72130 Track Assy, RH Seat, Inner
72137 Cover, Seat Track, Outer RH
72138 Cover, Seat Track, Outer LH
72140 Track Assy, LH Seat, Inner
72157 Cover, Seat Track Bracket, Inner
72301 Wire Sub-assy, Seat Track Equalizing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
