Toyota Corolla 2

1982-05 → 1986-04 · chassis AL2# · catalogue 133120 · Japan

Discontinued model Data version 1986-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

8 part groups · 2 illustrations

Illustrations

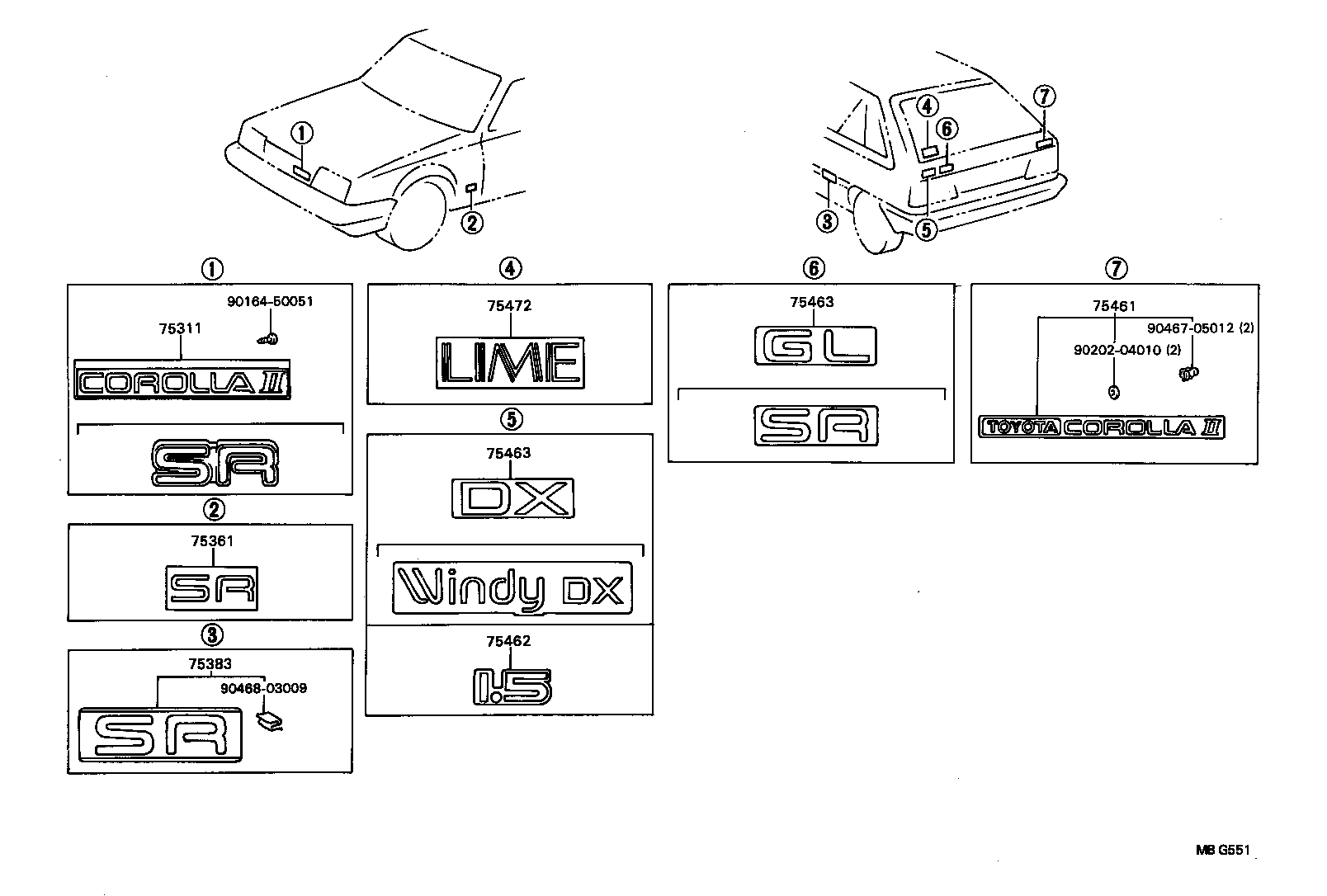

Figure MBD719D MBD719D 1982-05 → 1984-08 Figure MBG551 MBG551 1984-08 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75322 Retainer, Radiator Grille Name Plate
75361 Plate, Front Fender Name, NO.1 (MODEL MARK)
75383 Plate, Quarter Panel OR Side Panel Name (GRADE MARK)
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75462 Plate, Rear Name, NO.3 (DISPLACEMENT)
75463 Plate, Rear Name, NO.4 (GRADE MARK)
75472 Plate, Rear Window Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
