Toyota Corolla 2

1982-05 → 1986-04 · chassis AL2# · catalogue 133120 · Japan

Discontinued model Data version 1986-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

13 part groups · 4 illustrations

Illustrations

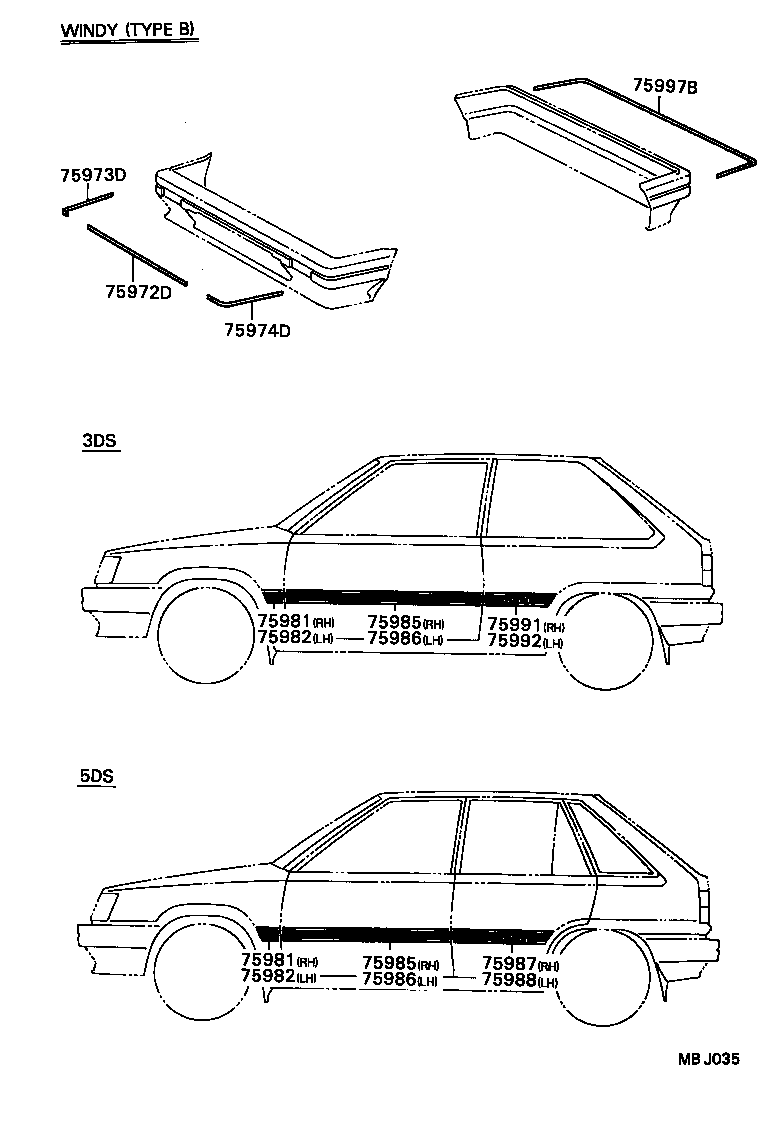

Figure MBF441B MBF441B 1983-05 → 1984-08 Figure MBF441B MBF441B 1983-08 → 1984-08 Figure MBF441B MBF441B 1984-08 → — Figure MBJ035 MBJ035 1985-01 → —

Part groups

PNCDescription
75972D Stripe, Front Bumper, Center
75972E Stripe, Front Bumper
75973D Stripe, Front Bumper Side, RH
75974D Stripe, Front Bumper Side, LH
75981 Stripe, Front Fender, RH NO.1
75982 Stripe, Front Fender, LH NO.1
75985 Stripe, Front Door, RH
75986 Stripe, Front Door, LH
75987 Stripe, Rear Door, RH
75988 Stripe, Rear Door, LH
75991 Stripe, Quarter, RH NO.1
75992 Stripe, Quarter, LH NO.1
75997B Stripe, Rear Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
