Toyota Corolla 2
1982-05 → 1986-04 · chassis AL2# · catalogue 133120 · Japan
Discontinued model
Data version 1986-10
Radio Receiver & Amplifier & Condenser
8 part groups · 2 illustrations
Part groups

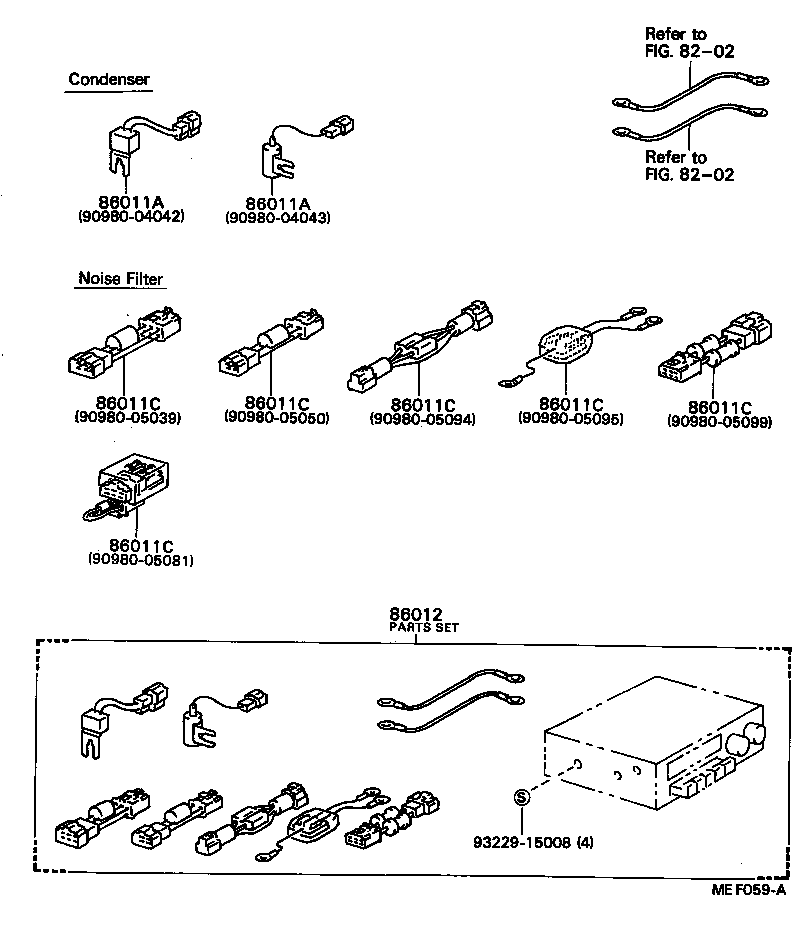

| PNC | Description |
|---|---|
| 86011A | Condenser, Radio Setting |
| 86011C | Filter, Noise |
| 86012 | Parts Set, Radio Setting |
| 86120 | Receiver Assy, Radio |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86260 | Tape Player Assy |
| 86280 | Amplifier Assy, Stereo Component |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
