Toyota Sprinter Carib

1982-08 → 1988-01 · chassis AL25 · catalogue 134120 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

24 part groups · 3 illustrations

Illustrations

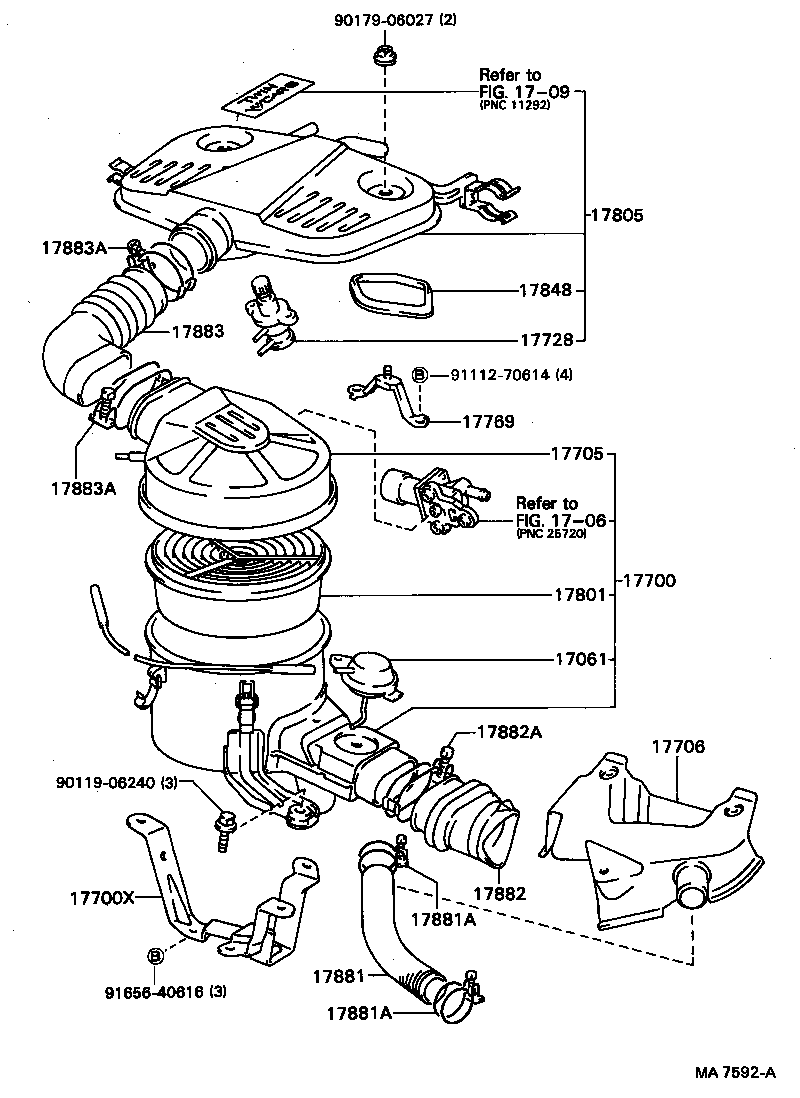

Figure MA5762B MA5762B 1982-08 → 1984-08 Figure MA7869C MA7869C 1984-08 → — Figure MA7592A MA7592A 1984-08 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17305 Valve Sub-assy, Reed
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17700X Bracket, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17706 Inlet Sub-assy, Air Cleaner, NO.2
17709 Inlet Sub-assy, Air Cleaner
17728 Valve, Thermostatic
17769 Support, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17812 Filter, Air Cleaner, NO.2
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
25710D Valve Assy, Air Switching
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
