Toyota Sprinter Carib

1982-08 → 1988-01 · chassis AL25 · catalogue 134120 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

21 part groups · 4 illustrations

Illustrations

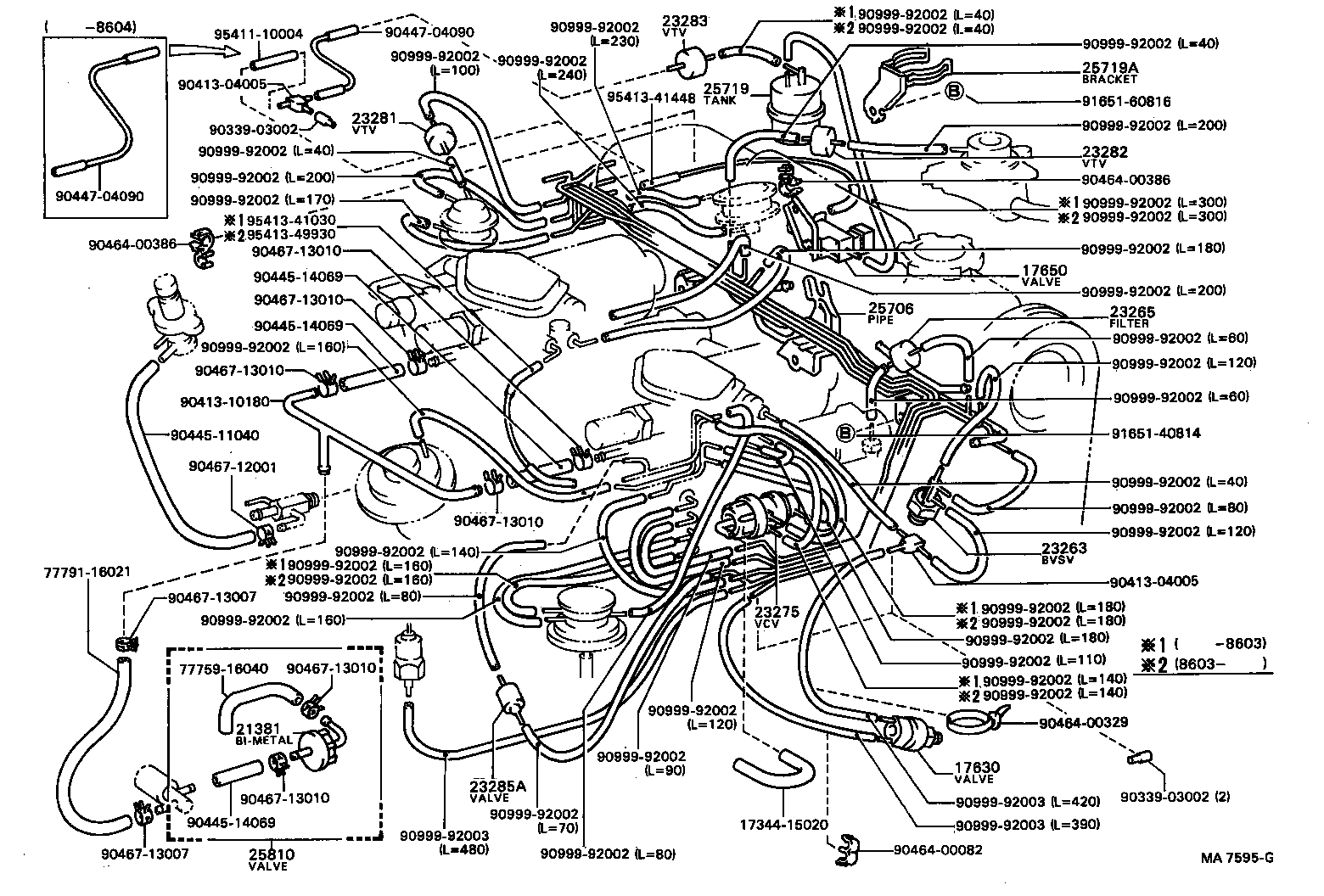

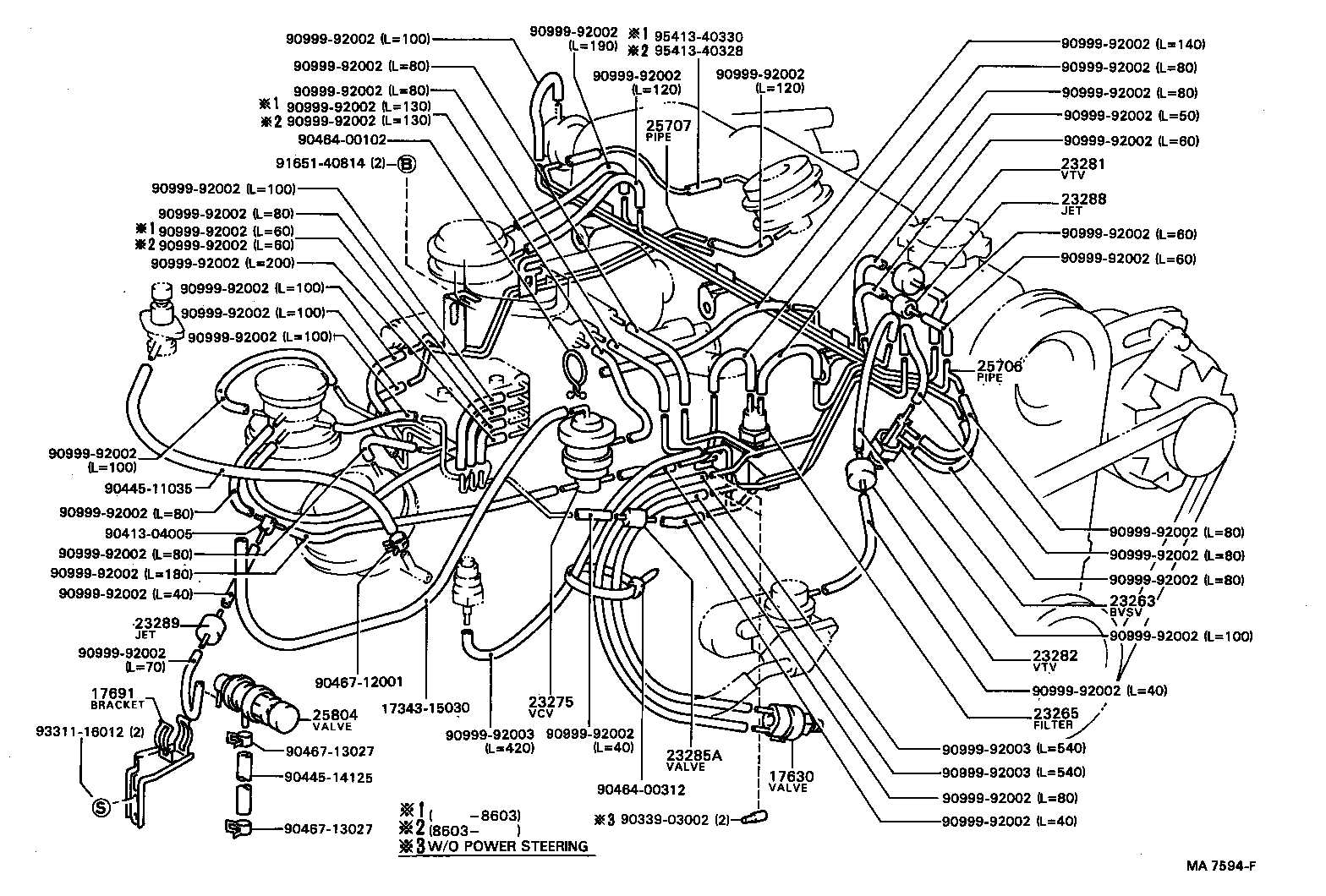

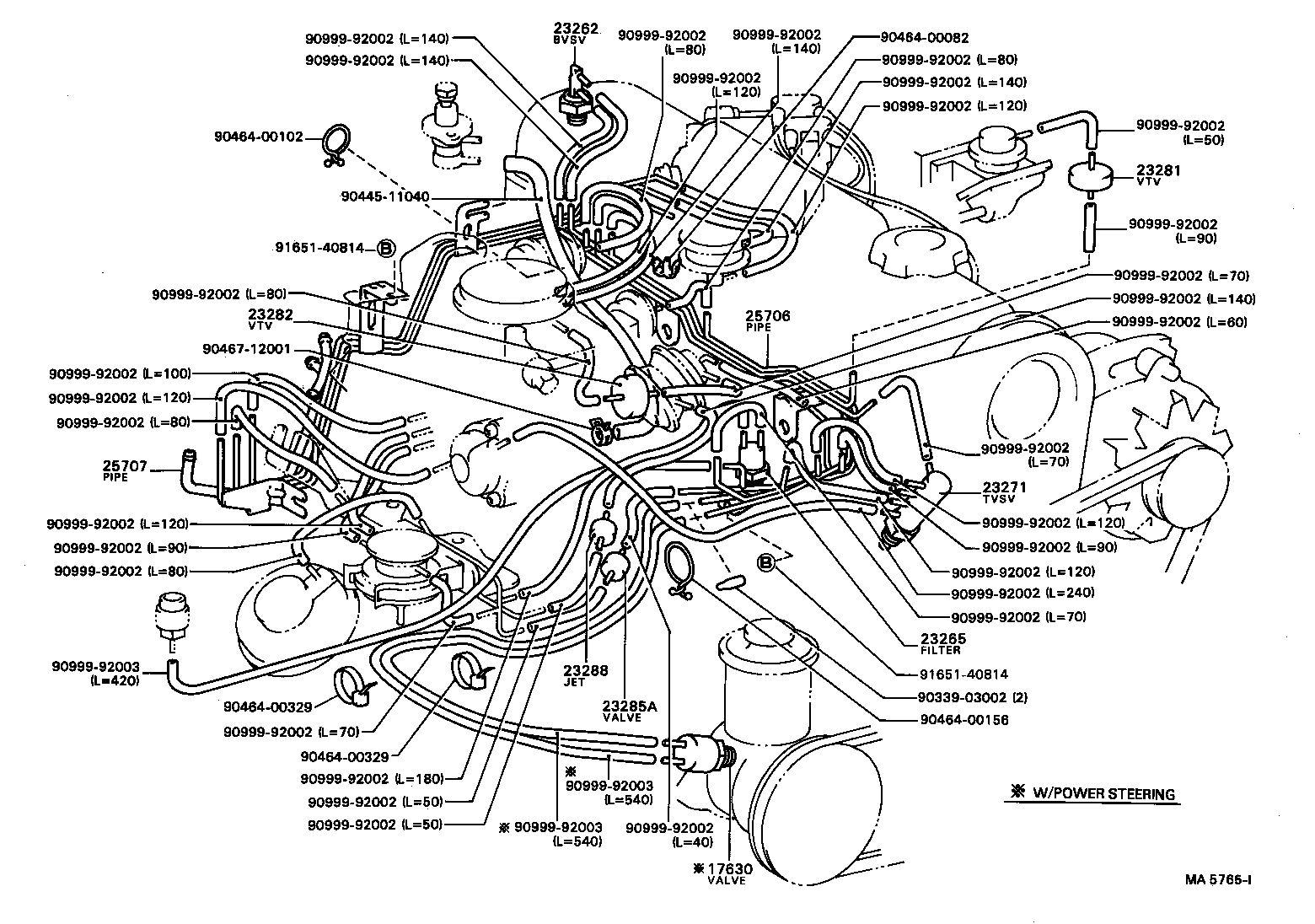

Figure MA9503A MA9503A 1982-08 → — Figure MA5765I MA5765I 1982-08 → 1984-08 Figure MA7594F MA7594F 1984-08 → — Figure MA7595G MA7595G 1984-08 → —

Part groups

PNCDescription
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17691 Bracket, Vacuum Control Valve, NO.1
21381 Bimetal, Thermostatic
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
23285A Valve, Check, NO.1
23288 Jet, NO.1
23289 Jet, NO.2
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25719 Tank, Vacuum Surge
25719A Bracket, Vacuum Tank Clamp
25804 Valve Set, Vacuum Control
25810 Valve Assy, Bimetal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
