Toyota Sprinter Carib

1982-08 → 1988-01 · chassis AL25 · catalogue 134120 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

16 part groups · 3 illustrations

Illustrations

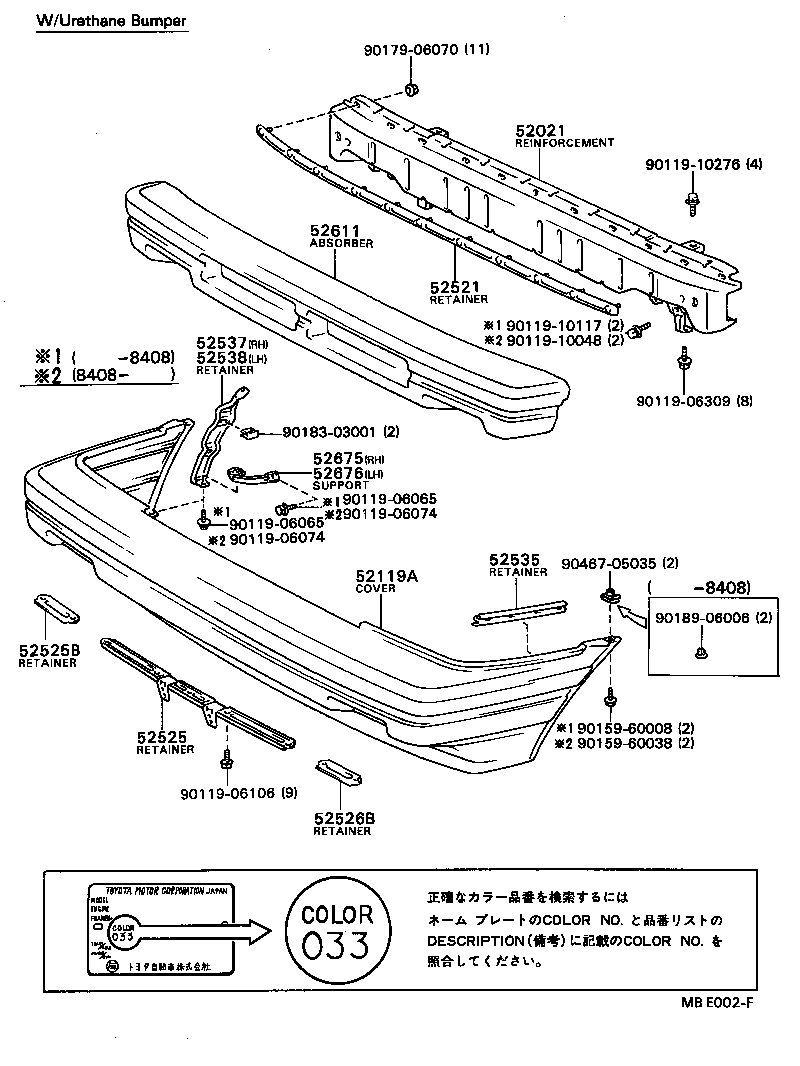

Figure MBD616C MBD616C 1982-08 → 1984-08 Figure MBG567B MBG567B 1984-08 → — Figure MBE002F MBE002F 1982-08 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52105 Stay Sub-assy, Front Bumper, RH
52106 Stay Sub-assy, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52521 Retainer, Front Bumper, Upper Center
52525 Retainer, Front Bumper, Lower Center
52525B Retainer, Front Bumper, Lower Side RH
52526B Retainer, Front Bumper, Lower Side LH
52535 Retainer, Front Bumper Side, RH
52537 Retainer, Front Bumper End, RH
52538 Retainer, Front Bumper End, LH
52611 Absorber, Front Bumper Energy
52675 Support, Front Bumper Lower Side, RH
52676 Support, Front Bumper Lower Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
