Toyota Sprinter Carib

1982-08 → 1988-01 · chassis AL25 · catalogue 134120 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

16 part groups · 3 illustrations

Illustrations

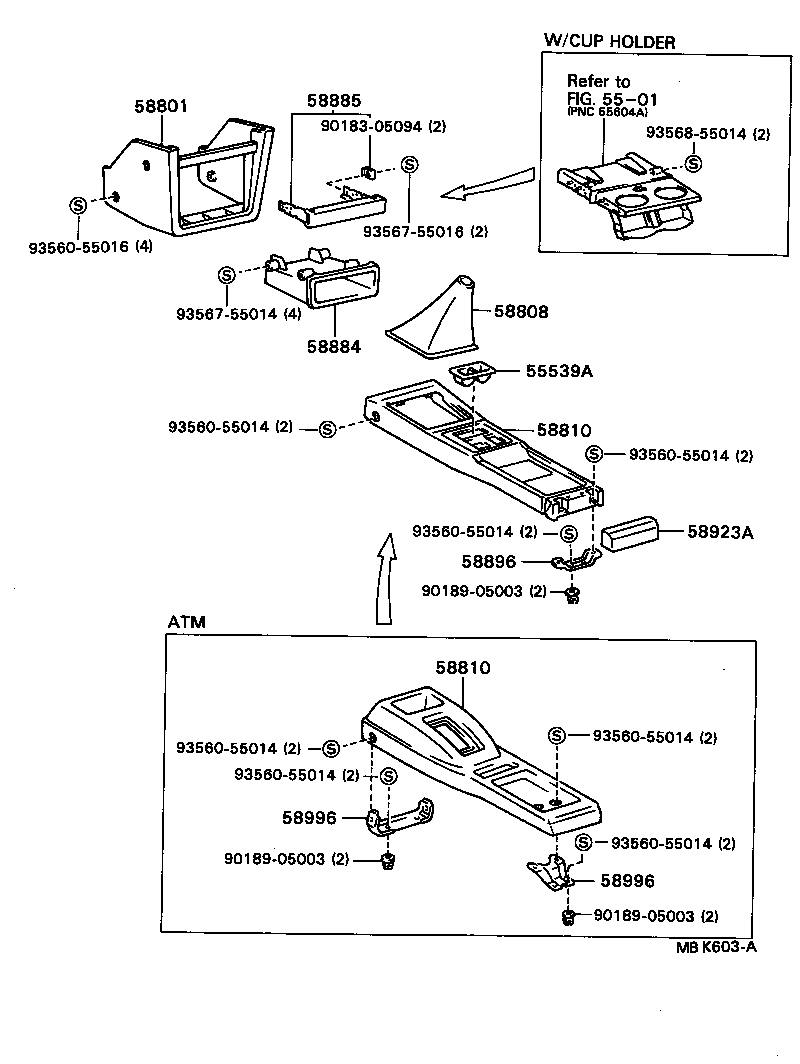

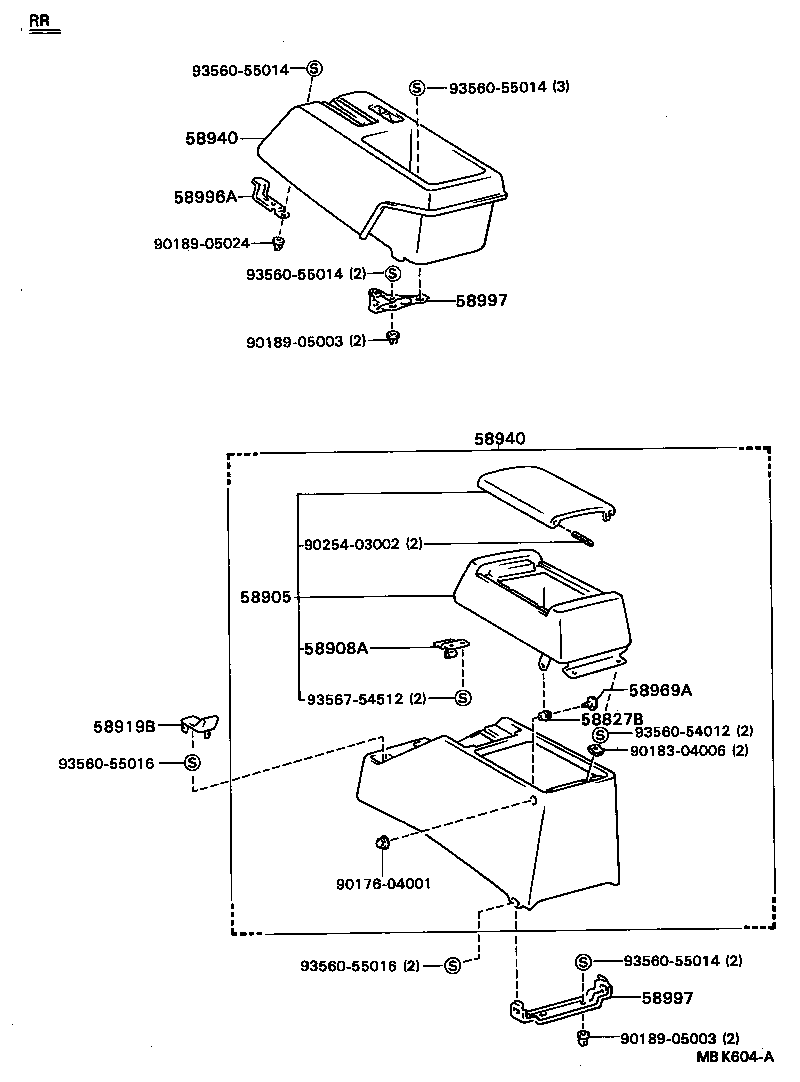

Figure MBE100D MBE100D 1982-08 → 1986-05 Figure MBK603A MBK603A 1986-05 → — Figure MBK604A MBK604A 1986-05 → —

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
58801 Console Sub-assy, Upper
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58827B Spacer, Console Compartment Door Stopper
58884 Cover, Stereo Opening
58885 Cover, Console Box Opening
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58919B Plate, Console Box
58923A Panel, Console Rear End
58940 Console Assy, Rear
58969A Retainer, Console Compartment Door Stopper
58996 Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
