Toyota Sprinter Carib
1982-08 → 1988-01 · chassis AL25 · catalogue 134120 · Japan
Discontinued model
Data version 1988-05
Fuel Tank & Tube

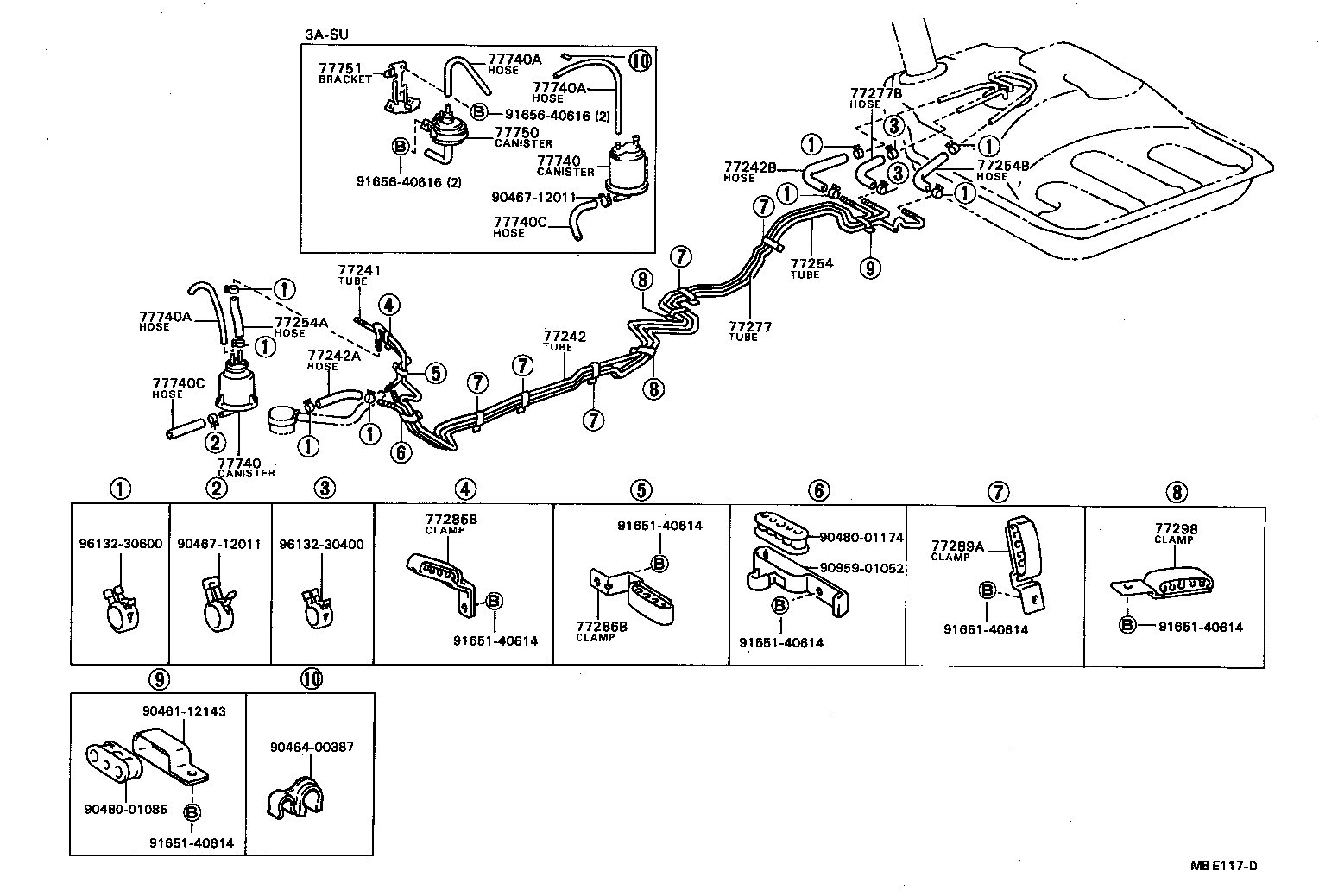

47 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 77017 | Tube Sub-assy, Fuel And Evaporation Vent |
| 77017A | Gasket, Fuel Tank Vent |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77031 | Cap Assy, Fuel Tank |
| 77031B | Gasket (FOR FUEL TANK CAP) |
| 77033 | Lock Sub-assy, Fuel Tank Cap |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77213 | Hose, Fuel Tank Sub Inlet |
| 77241 | Tube, Fuel Main, NO.1 |
| 77242 | Tube, Fuel Main, NO.2 |
| 77242A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2) |
| 77242B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2) |
| 77254 | Tube, Fuel Emission, NO.1 |
| 77254A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1) |
| 77254B | Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1) |
| 77277 | Tube, Fuel Return, NO.1 |
| 77277B | Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1) |
| 77285B | Clamp, Fuel Tube W/Grommet, NO.1 |
| 77286 | Protector, Fuel Tank Inlet Pipe |
| 77286B | Clamp, Fuel Tube W/Grommet, NO.2 |
| 77289A | Clamp, Fuel Tube W/Grommet, NO.3 |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77295 | Shield, Fuel Filler Pipe |
| 77298 | Clamp, Fuel Tube W/Grommet, NO.4 |
| 77308 | Cover Sub-assy, Fuel Inlet Box |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77387 | Ring, Fuel Inlet Box |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77606C | Protector, Fuel Tank, NO.2 |
| 77611 | Band, Fuel Tank |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77614 | Seat, Fuel Tank Band |
| 77617A | Union, Auxiliary Fuel Band |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77652 | Cushion, Fuel Tank, NO.1 |
| 77654 | Cushion, Fuel Tank, NO.2 |
| 77655 | Cushion, Fuel Tank, NO.3 |
| 77658A | Protector, Fuel Tank Edge, NO.1 |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77740C | Hose, Fuel, NO.3(FOR CHARCOAL CANISTER) |
| 77750 | Canister Assy, Charcoal |
| 77751 | Bracket, Charcoal Canister Base |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
