Toyota Sprinter Carib
1982-08 → 1988-01 · chassis AL25 · catalogue 134120 · Japan
Discontinued model
Data version 1988-05
Meter
23 part groups · 6 illustrations
Part groups

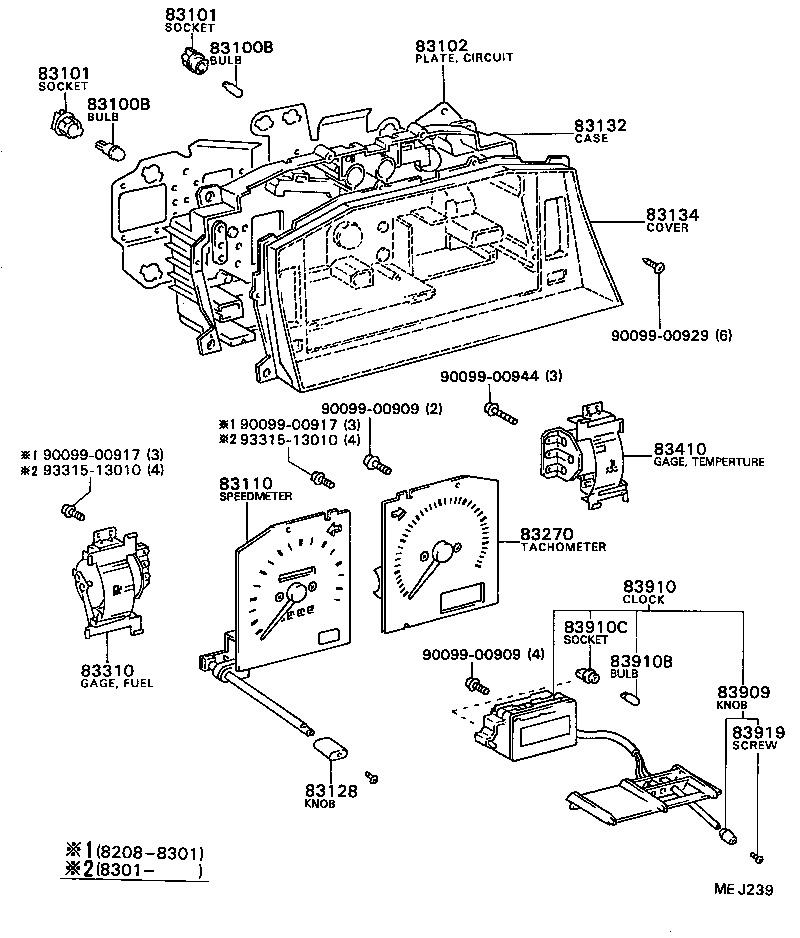

| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83110 | Speedometer Assy |
| 83128 | Knob, Trip Counter |
| 83132 | Case, Combination Meter |
| 83134 | Cover, Combination Meter, NO.1 |

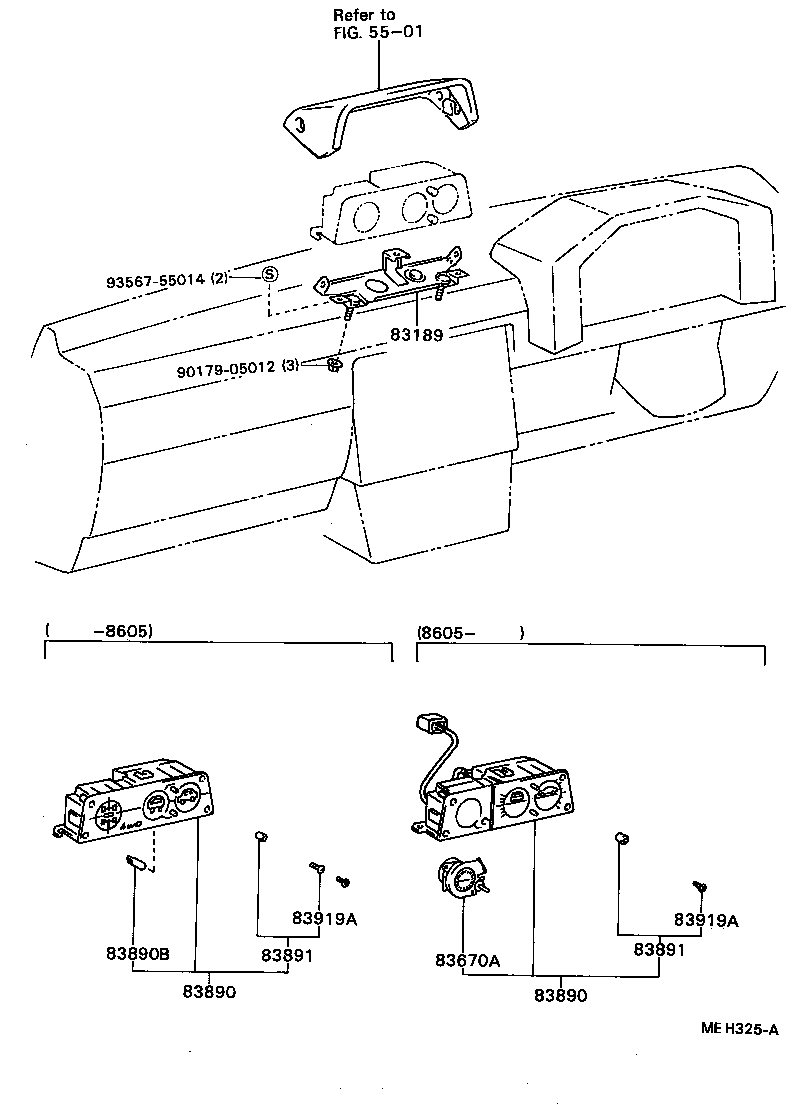

| 83189 | Bracket, Meter |
| 83270 | Tachometer Assy, Engine |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |
| 83670A | Altimeter Assy |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83770 | Adapter Assy, Speedometer Cable |
| 83890 | Clinometer Assy |
| 83890B | Bulb, Clinometer |
| 83891 | Knob, Clinometer |
| 83909 | Knob, Clock |
| 83910 | Clock Assy |
| 83910B | Bulb, Clock Indicator |
| 83910C | Socket Sub-assy, Clock Bulb |
| 83919 | Screw, Clock |
| 83919A | Screw (FOR CLINOMETER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
