Toyota Sprinter Carib

1982-08 → 1988-01 · chassis AL25 · catalogue 134120 · Japan

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

28 part groups · 3 illustrations

Illustrations

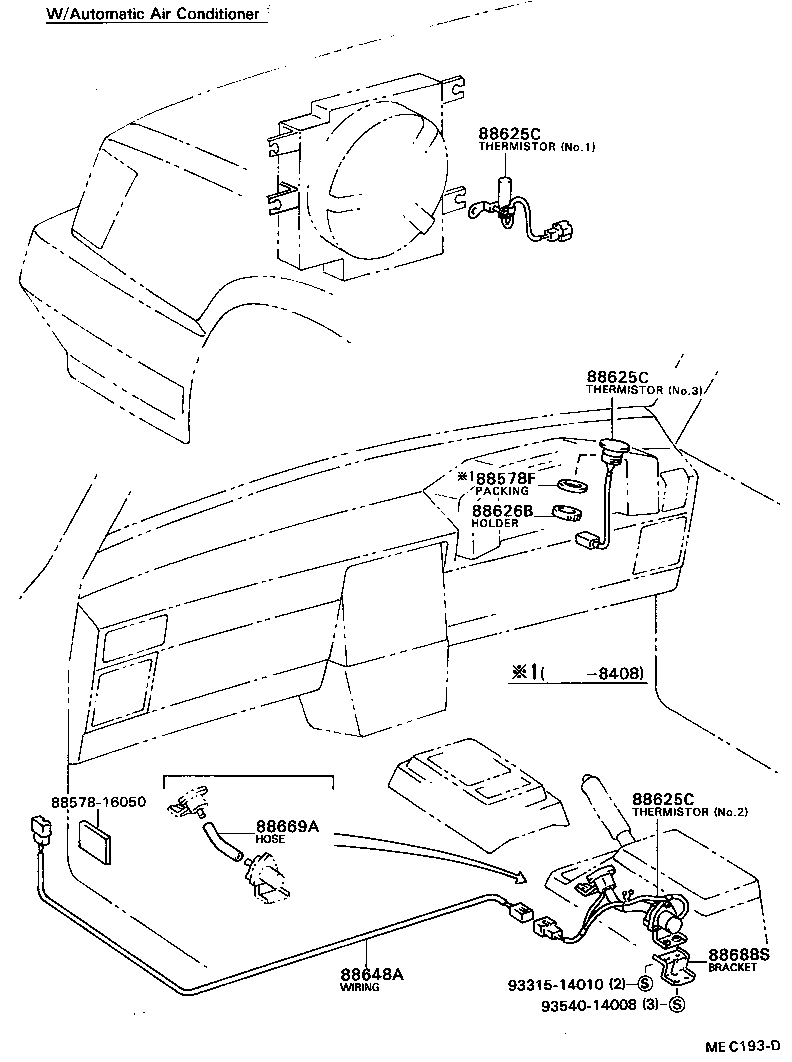

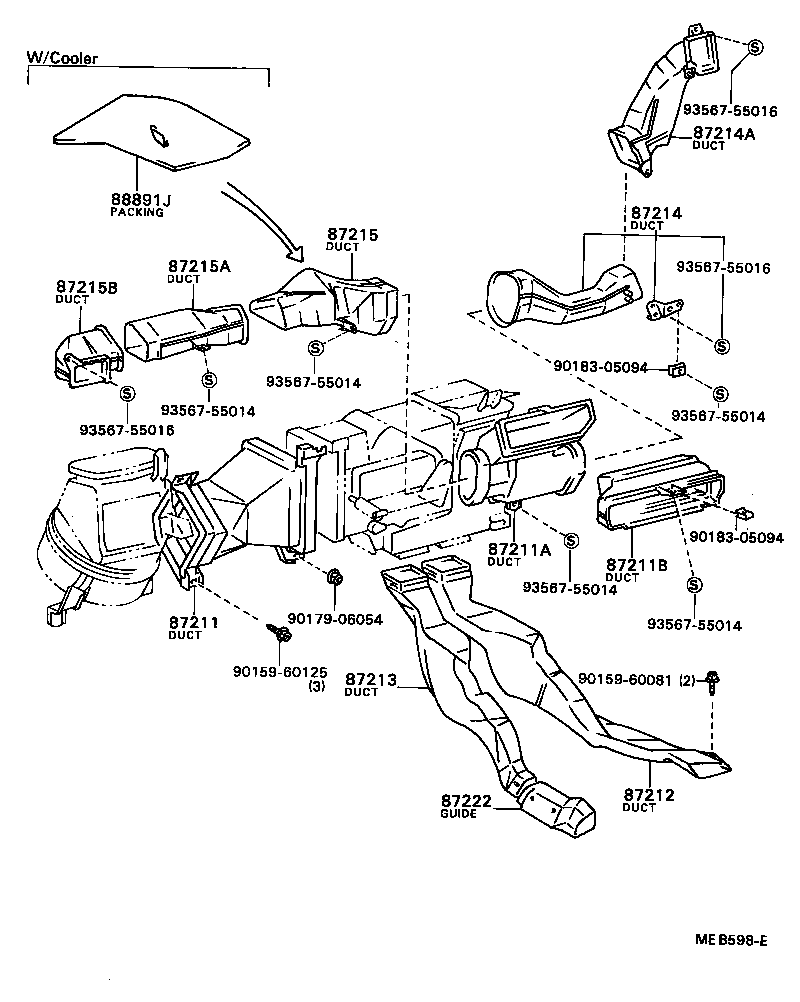

Figure MEB597D MEB597D 1982-08 → — Figure MEB598E MEB598E 1982-08 → — Figure MEC193D MEC193D 1982-08 → —

Part groups

PNCDescription
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55923 Retainer, Heater Control, Upper
55937 Knob, Heater Control Lever
55941A Guide, Heater Control
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214 Duct, Air, Side NO.1 RH
87214A Duct, Air, Side NO.2 RH
87215 Duct, Air, Side NO.1 LH
87215A Duct, Air, Side NO.2 LH
87215B Duct, Air, Side NO.3 LH
87222 Guide, Air Duct, Rear
87284 Resistor Sub-assy, Variable
88578F Packing(FOR THERMISTOR)
88625C Thermistor, Cooler
88626B Holder, Thermistor
88648A Wiring, Cooler
88669A Hose (FOR COOLER THERMISTOR)
88688S Bracket (FOR COOLER THERMISTOR)
88891J Packing
88899D Cover, Cooler Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
