Toyota Corsa/Tercel

1986-05 → 1988-05 · chassis EL3#,NL30 · catalogue 141110 · Japan

Discontinued model Data version 1988-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

22 part groups · 2 illustrations

Illustrations

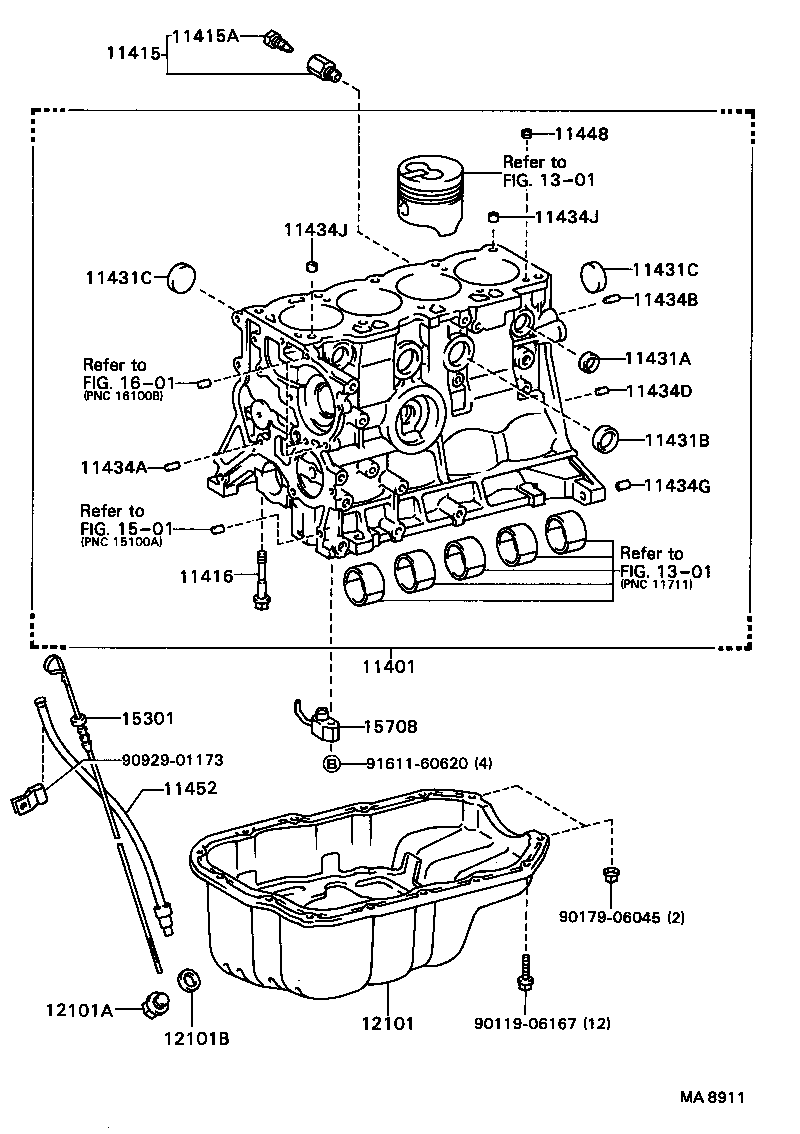

Figure MA8951A MA8951A 1986-05 → — Figure MA8911 MA8911 1986-05 → —

Part groups

PNCDescription
11401 Block Sub-assy, Cylinder
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11415J Gasket(FOR DRAIN COCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11421 Bolt, Stud(FOR OIL PAN)
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11431C Plug, Tight, NO.3(FOR CYLINDER BLOCK)
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434D Pin, Straight(FOR ENGINE REAR OIL SEAL)
11434G Pin, Straight(FOR END PLATE)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
11448 Orifice, Cylinder Block Oil
11452 Guide, Oil Level Gage
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
15708 Nozzle Sub-assy, Oil, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
