Toyota Corsa/Tercel

1986-05 → 1988-05 · chassis EL3#,NL30 · catalogue 141110 · Japan

Discontinued model Data version 1988-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

32 part groups · 3 illustrations

Illustrations

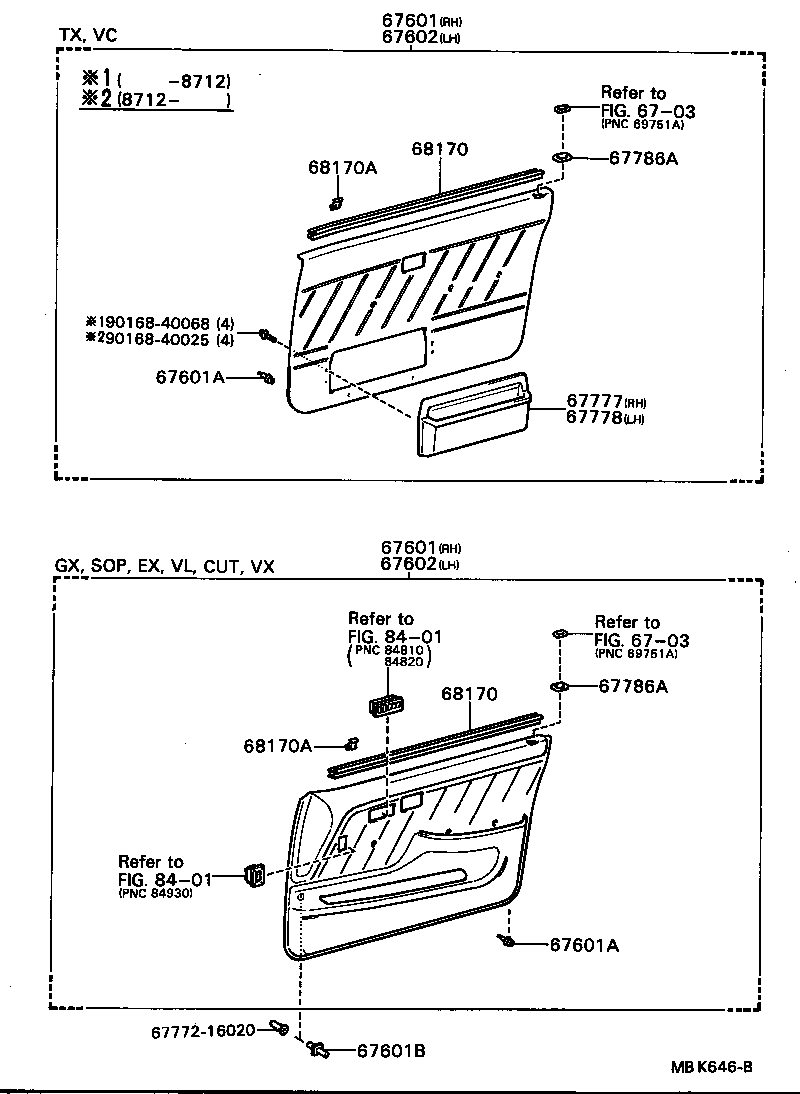

Figure MBK644C MBK644C 1986-05 → — Figure MBK645A MBK645A 1986-05 → — Figure MBK646B MBK646B 1986-05 → —

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67002 Panel Sub-assy, Front Door, LH
67111 Panel, Front Door, Outer RH
67112 Panel, Front Door, Outer LH
67433 Frame, Front Door Window, Rear Lower RH
67434 Frame, Front Door Window, Rear Lower LH
67491A Garnish, Front Door Lower Frame Bracket, RH
67492A Garnish, Front Door Lower Frame Bracket, LH
67495 Cover, Front Door Front Lower Frame, Upper
67601 Board Sub-assy, Front Door Trim, RH
67601A Retainer(FOR FRONT DOOR TRIM BOARD)
67601B Clip(FOR FRONT DOOR TRIM BOARD)
67602 Board Sub-assy, Front Door Trim, LH
67777 Pocket, Front Door Trim, RH
67778 Pocket, Front Door Trim, LH
67786A Retainer, Door Locking Button Collar(FOR FRONT DOOR)
67801 Cover Sub-assy, Front Door Hole, NO.1 RH
67802 Cover Sub-assy, Front Door Hole, NO.1 LH
67833C Cover, Front Door Speaker Hole
67837A Seal, Front Door Vent, RH
67838A Seal, Front Door Vent, LH
67861 Weatherstrip, Front Door, RH
67861A Retainer(FOR FRONT DOOR WEATHERSTRIP)
67862 Weatherstrip, Front Door, LH
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141 Run, Front Door Glass
68161 Weatherstrip, Front Door Glass, Outer
68170 Weatherstrip Assy, Front Door Glass, Inner
68170A Clip(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68610 Check Assy, Front Door
68610A Pin(FOR FRONT DOOR CHECK)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
