Toyota Corsa/Tercel
1986-05 → 1988-05 · chassis EL3#,NL30 · catalogue 141110 · Japan
Discontinued model
Data version 1988-10

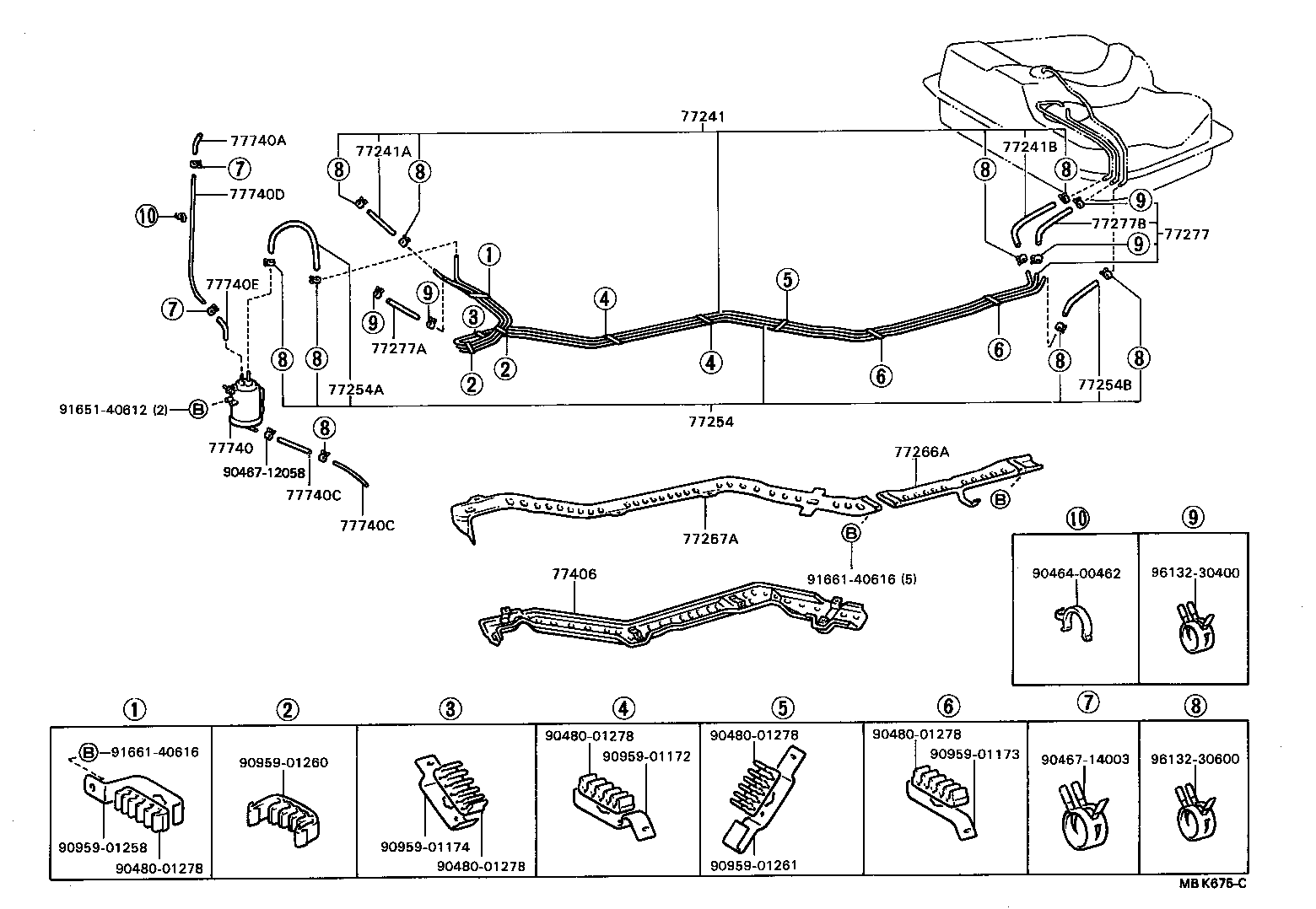

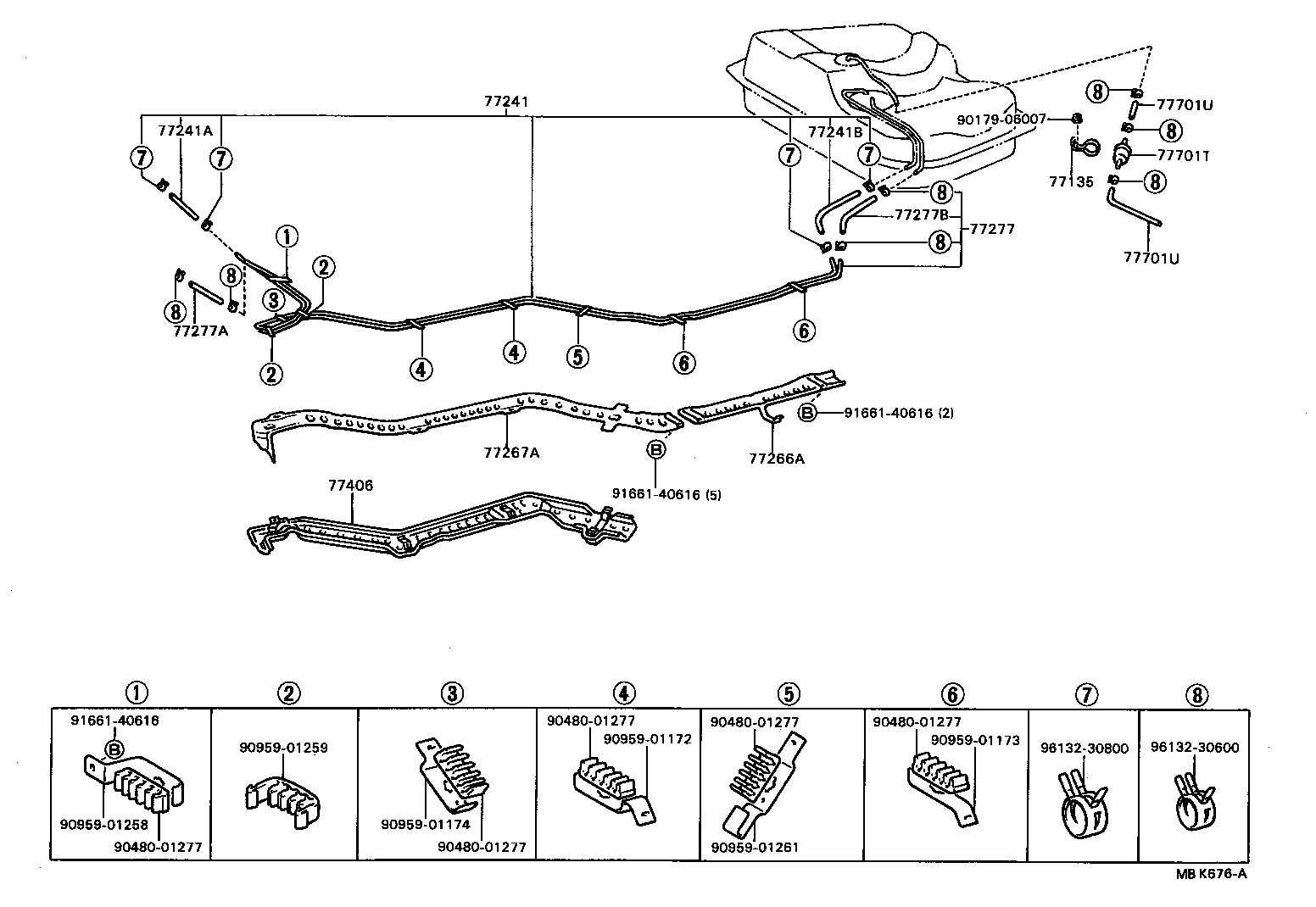

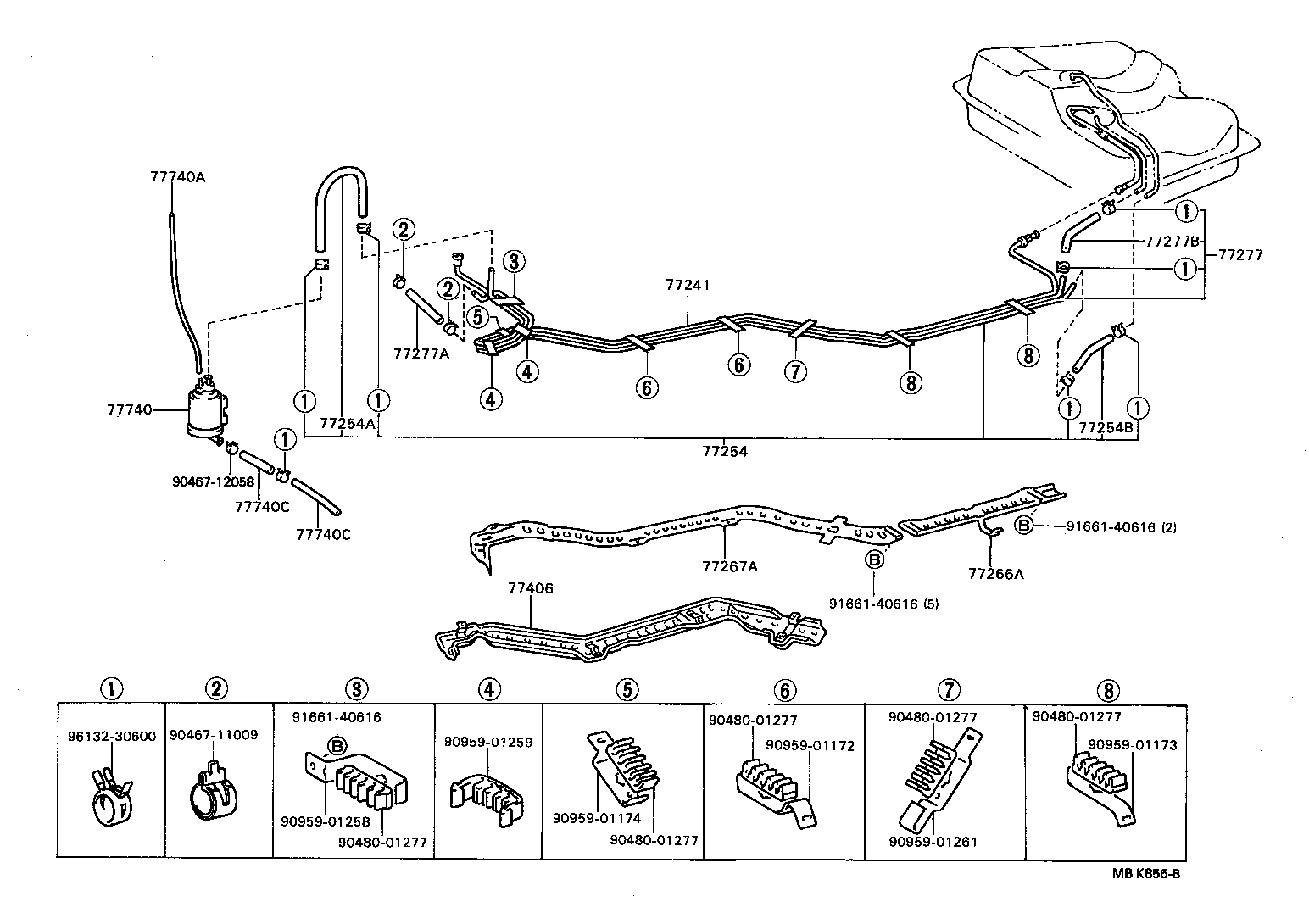

Fuel Tank & Tube
53 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 77011 | Pipe Sub-assy, Fuel Tank Filler, Lower |
| 77017 | Tube Sub-assy, Fuel And Evaporation Vent |
| 77017A | Gasket, Fuel Tank Vent |
| 77018E | Tube Sub-assy, Fuel Tank Evaporation Vent |
| 77018G | Gasket, Fuel Tank Evap/Vent Tube |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77031 | Cap Assy, Fuel Tank |
| 77031B | Gasket (FOR FUEL TANK CAP) |
| 77033 | Lock Sub-assy, Fuel Tank Cap |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77135 | Bracket, Check Valve |
| 77167A | Support, Fuel Tank Vent Tube, NO.2 |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77201A | Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE) |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77241 | Tube, Fuel Main, NO.1 |
| 77241A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1) |
| 77241B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1) |
| 77254 | Tube, Fuel Emission, NO.1 |
| 77254A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1) |
| 77254B | Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1) |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77267A | Protector, Fuel Tube, NO.2 |
| 77277 | Tube, Fuel Return, NO.1 |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277B | Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1) |
| 77286 | Protector, Fuel Tank Inlet Pipe |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77295 | Shield, Fuel Filler Pipe |
| 77308 | Cover Sub-assy, Fuel Inlet Box |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77380 | Valve Assy, Fuel Cut Off |
| 77387 | Ring, Fuel Inlet Box |
| 77406 | Protector Sub-assy, Fuel Tube |
| 77611 | Band, Fuel Tank |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77652 | Cushion, Fuel Tank, NO.1 |
| 77654 | Cushion, Fuel Tank, NO.2 |
| 77655 | Cushion, Fuel Tank, NO.3 |
| 77656A | Cushion, Fuel Tank, NO.4 |
| 77657A | Cushion, Fuel Tank, NO.5 |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77701U | Hose, Fuel (FOR CHECK VALVE) |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77740C | Hose, Fuel, NO.3(FOR CHARCOAL CANISTER) |
| 77740D | Hose, Fuel, NO.4(FOR CHARCOAL CANISTER) |
| 77740E | Hose, Fuel, NO.5(FOR CHARCOAL CANISTER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
