Water Pump

11 part groups · 2 illustrations

Illustrations

Figure MAE316D

MAE316D 1990-09 → —

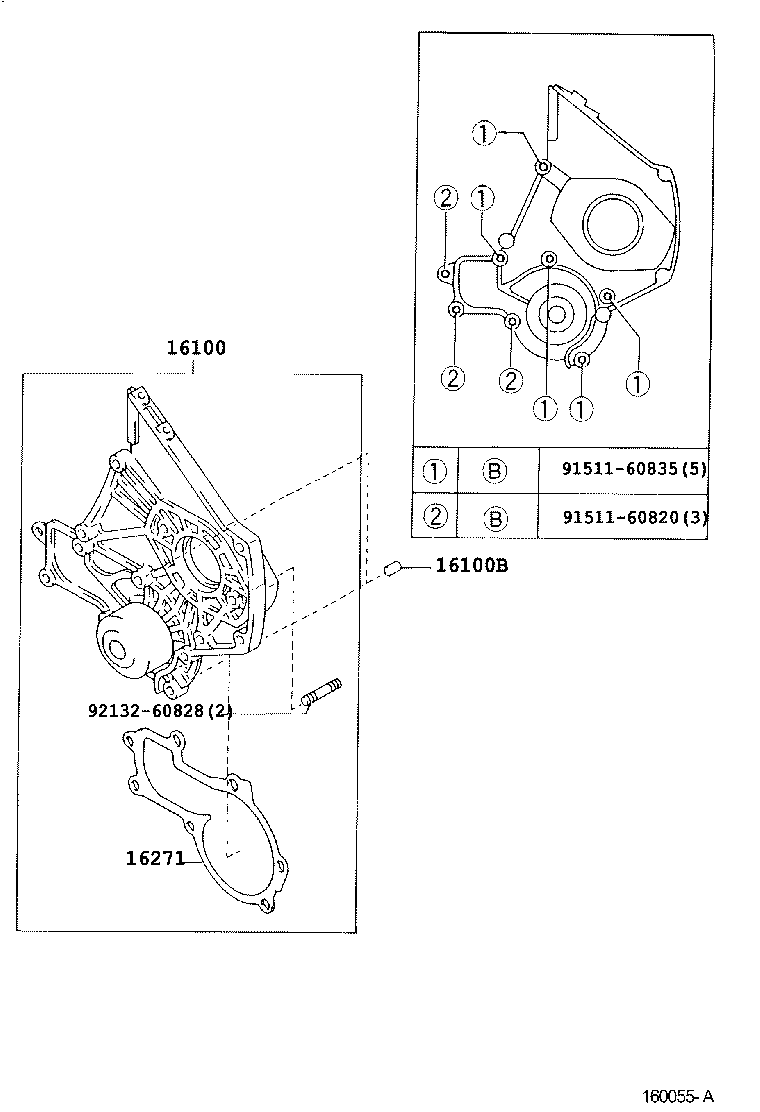

Figure 160055A

160055A 1990-09 → —

Part groups

PNC	Description
04161	Pump Kit, Water
16100	Pump Assy, Engine Water
16100B	Pin, Ring(FOR WATER PUMP SET)
16104	Seal Set, Water Pump
16110	Pump Assy, Water, W/O Coupling
16124	Gasket, Water Pump Cover
16131	Rotor, Water Pump
16131A	Bearing, Water Pump
16171	Seat, Water Pump Pulley
16173	Pulley, Water Pump
16271	Gasket, Water Pump

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
