Toyota Corsa/Tercel

1990-09 → 1994-09 · chassis EL4#,NL40 · catalogue 141140 · Japan

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

20 part groups · 8 illustrations

Illustrations

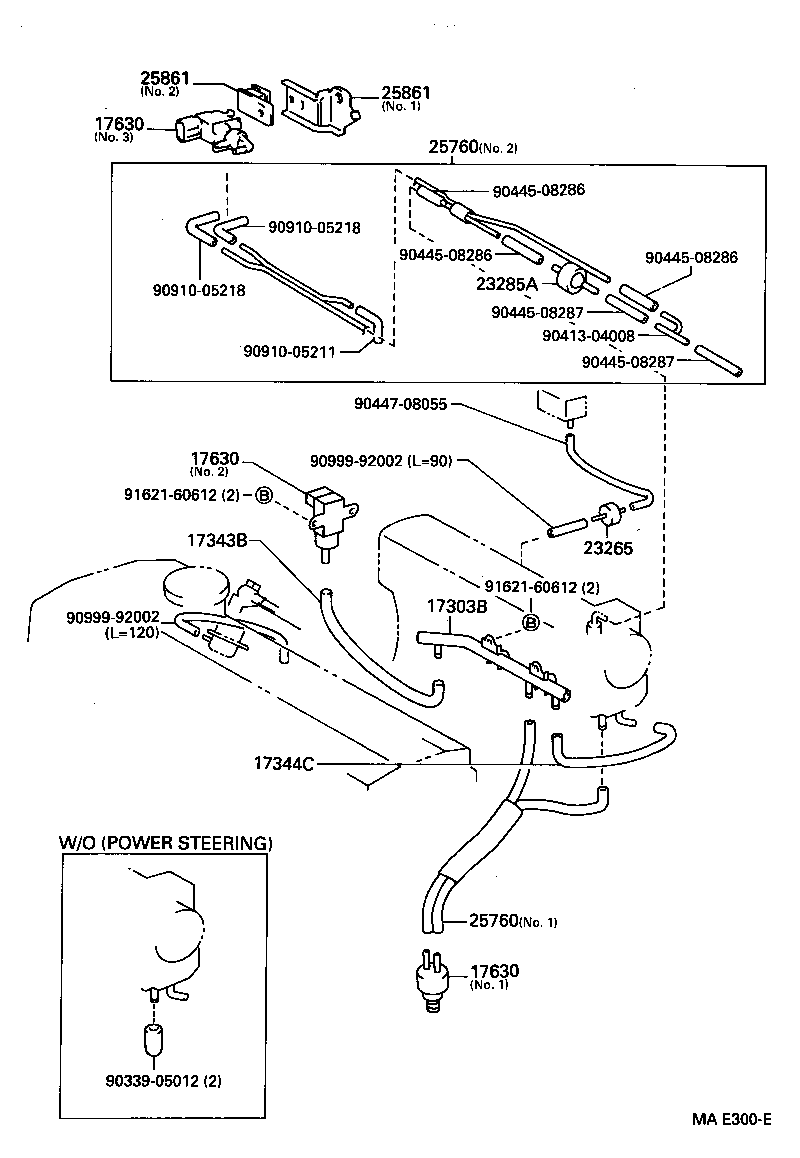

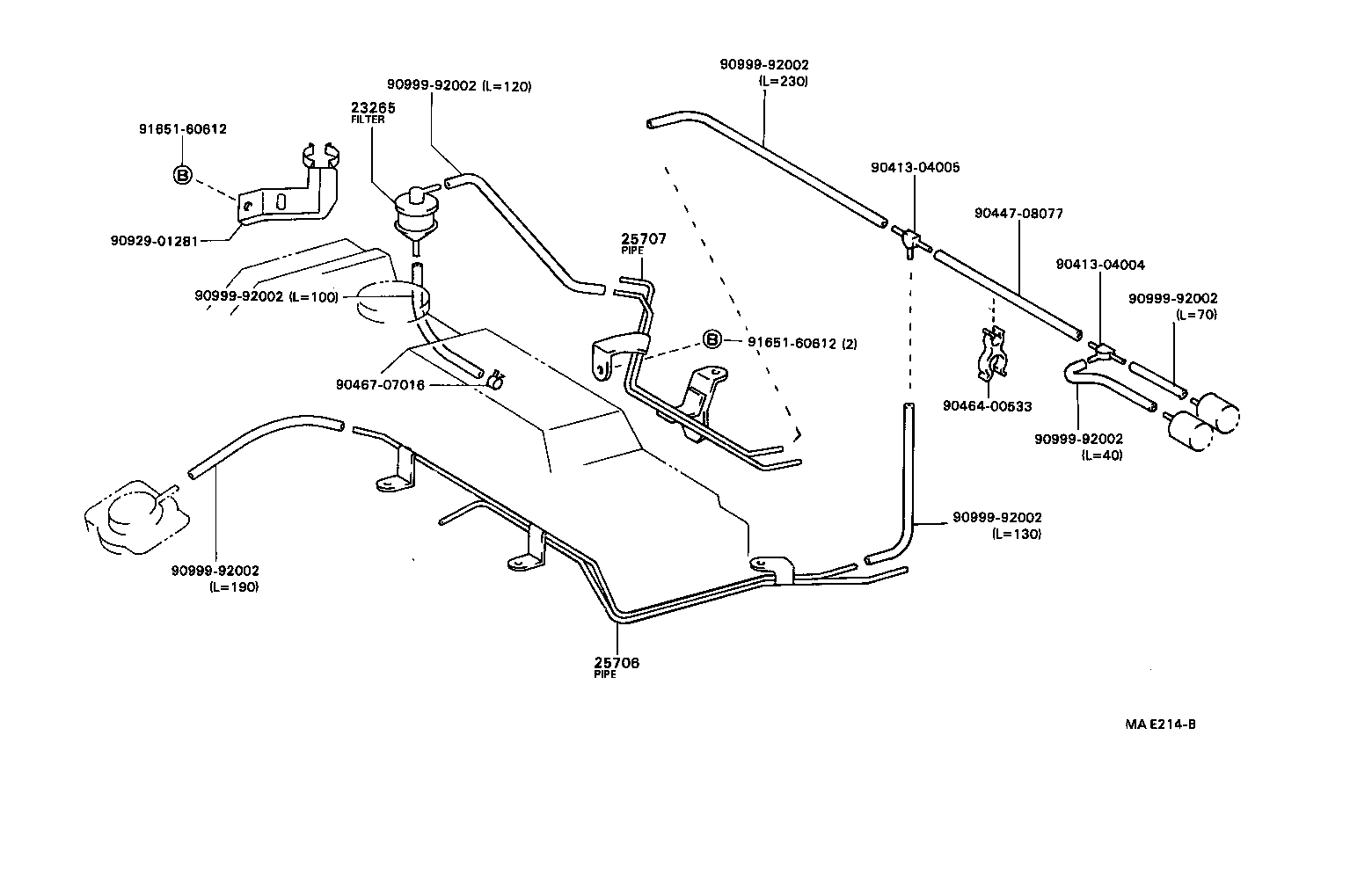

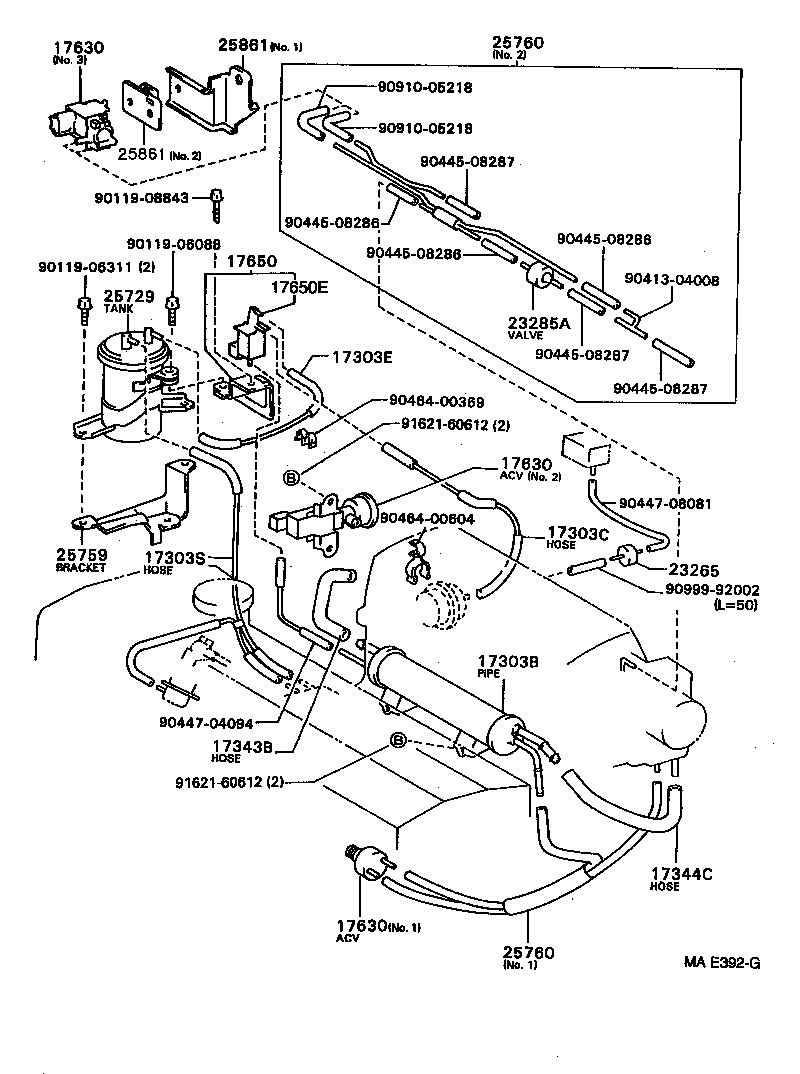

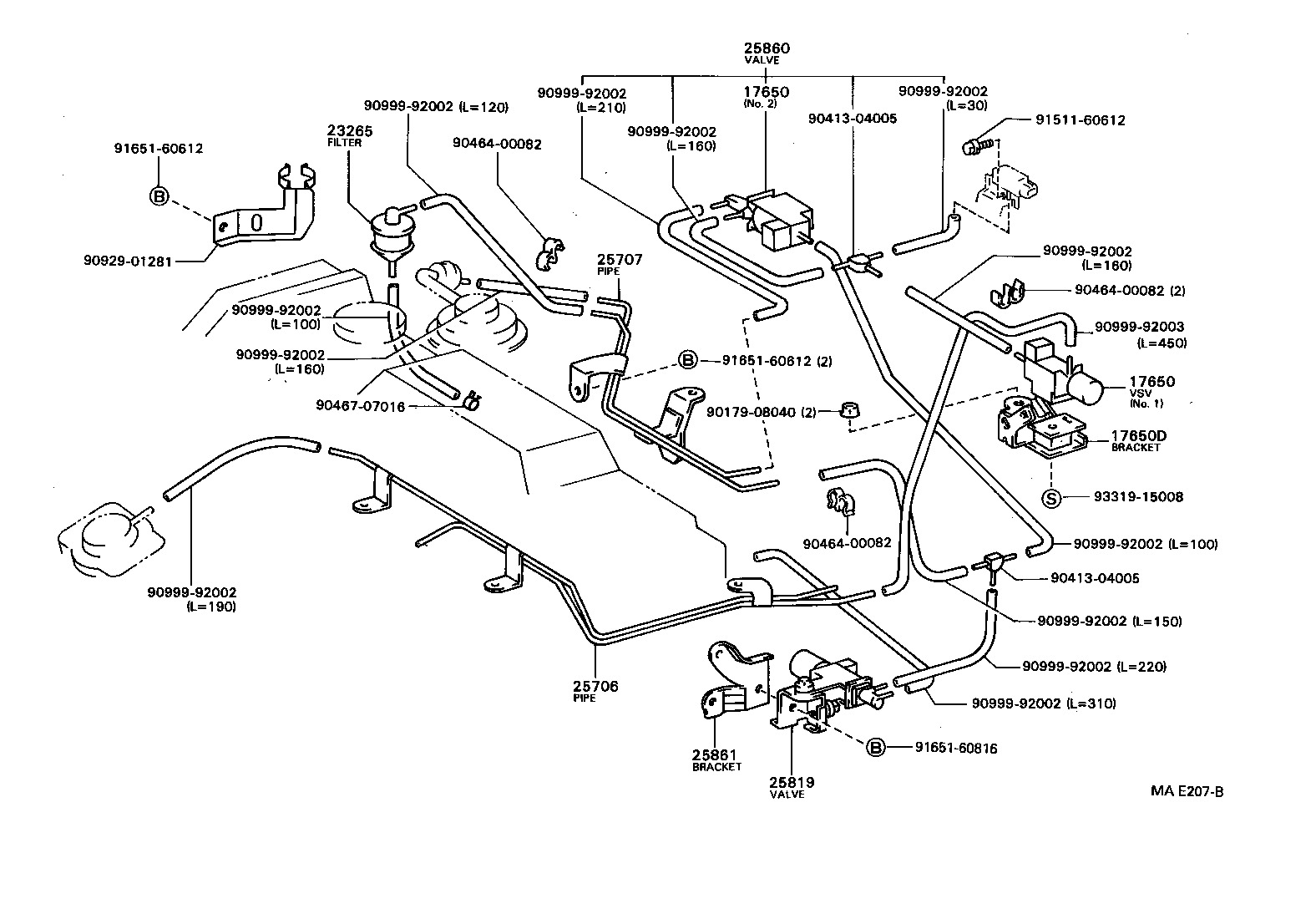

Figure MA9503A MA9503A 1990-09 → — Figure MAE299E MAE299E 1990-09 → 1992-08 Figure MAE300E MAE300E 1990-09 → — Figure MAE300E MAE300E 1992-08 → — Figure MAE392G MAE392G 1990-09 → — Figure MA9503A MA9503A 1990-09 → — Figure MAE207B MAE207B 1990-09 → — Figure MAE214B MAE214B 1990-09 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303C Pipe Sub-assy, Air, NO.2
17303E Hose, NO.1(FOR AIR PIPE)
17303S Pipe Sub-assy, Air, NO.3
17343B Hose, NO.3(FOR IDLE-UP)
17344C Hose, NO.4(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
17650E Valve, Vacuum Switching
23265 Filter, Gas, NO.1
23285A Valve, Check, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25729 Tank, Vacuum Surge W/Bracket
25759 Bracket, Vacuum Surge Tank
25760 Hose Assy, Vacuum Transmitting
25819 Valve Assy, Vacuum Regulating
25860 Valve Assy, Vacuum Switching, NO.1
25861 Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
